User Environment
Put the inverter on level floor and lock brake wheel.
On both side of the inverter more than 50cm from walls or other obstructions, to facilitate
heat dissipation.
Do not put the inverter near flammable construction materials.
Avoid direct sunlight, rain, or use of the inverter in damp conditions.
The inverter cannot be used in Corrosive materials, salt and combustible gas.
INSTALLATION
Battery Connection
CAUTION: For safety operation and regulation compliance, it's requested to install a separate
DC over-current protector or disconnect device between battery and inverter.It may not be
requested to have a disconnect device in some applications, however, it's still requested to
have over-current protection installed. Please refer to typical amperage in below table as
required fuse or breaker size.
- 4 -
C 1
D
- 3 1 -
Preparation

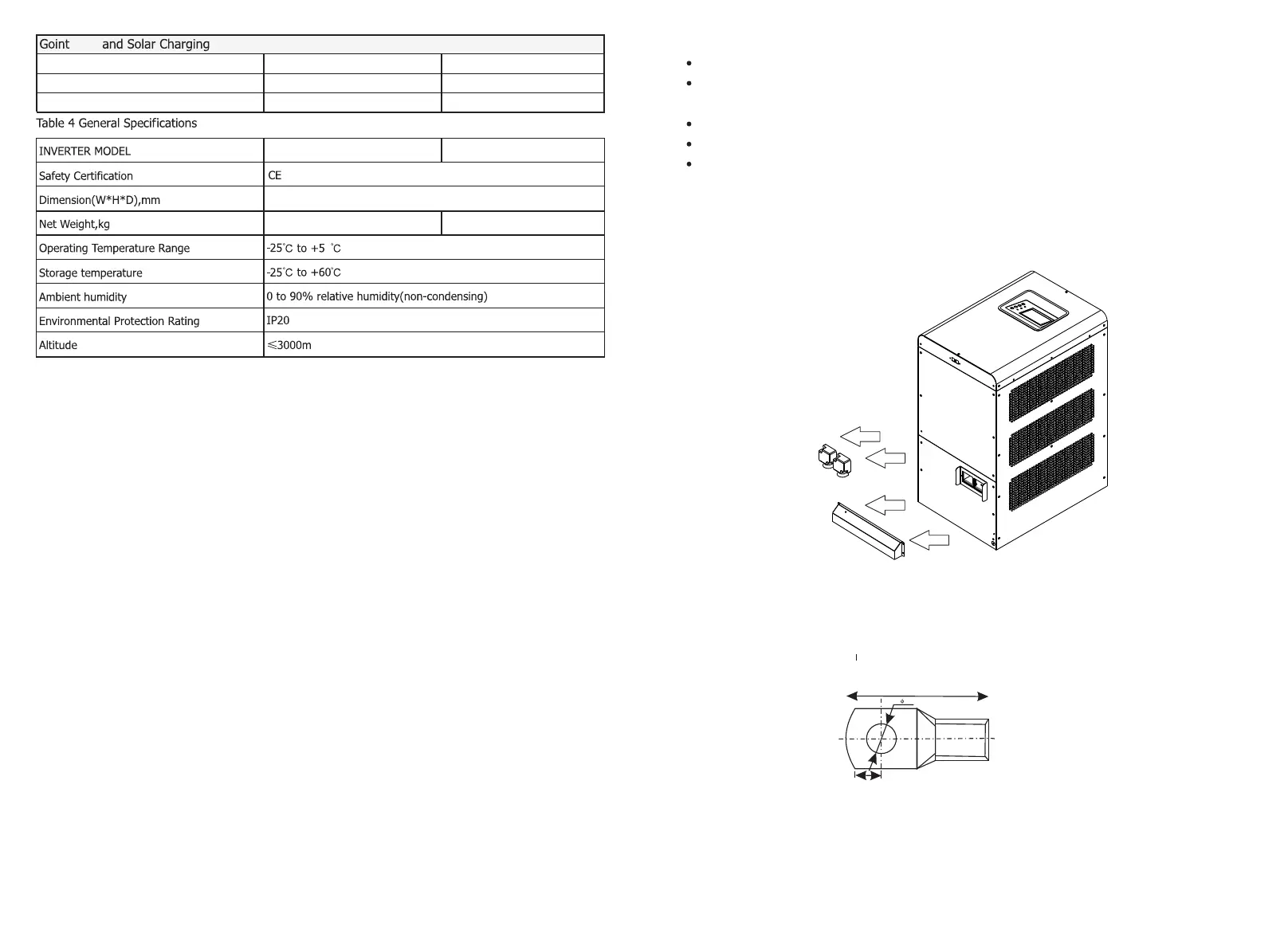

Before connecting all wirings, please take off bottom cover by removing six screws as shown
below.
WARNING! All wiring must be performed by a qualified personnel.
WARNING! It's very important for system safety and efficient operation to use appropriate
cable for battery connection. To reduce risk of injury, please use the proper recommended
cable and terminal size, As shown in the following table.
Grid
9KW
12KW
391*836*555
129
145.5
5
Default Grid Charging 3*60A 3*80A
Max Charging Current 3*60A 3*80A
Default Solar Charging Current 3*60A 3*80A
To Next Page
