6.3 Transmitter Mounting
Mount the transmitter on a 35 mm
DIN rail according to EN 60715.
Install the module in a suitable
housing to meet the requirements
for the protection class.
The DIN-rail transmitter should
always be installed in a control
cabinet or in a dry room.

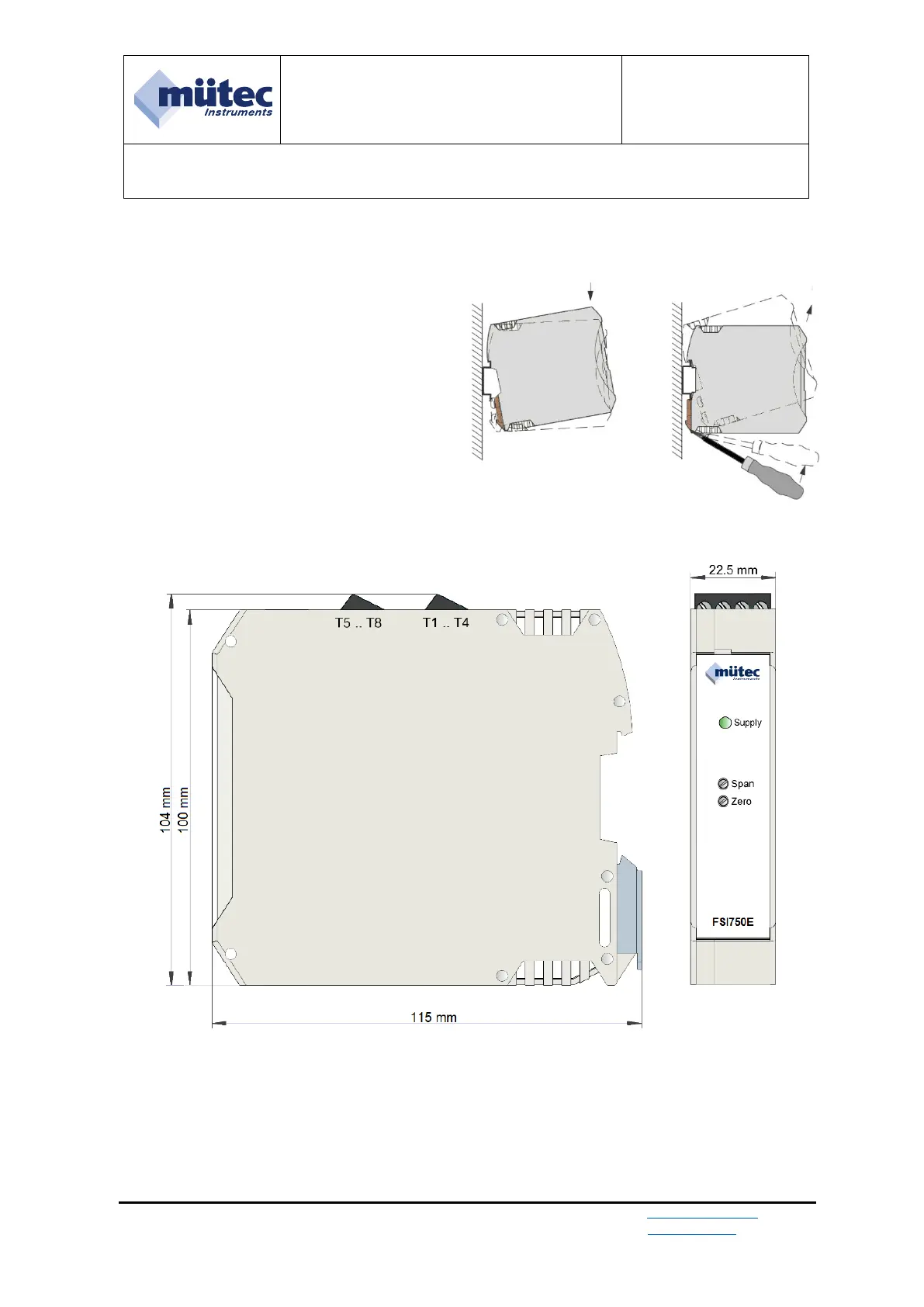

The mounting and removal is shown
in figure 3.
Mounting: Snap-on foot below (left
part of drawing). Removal: With a
screwdriver (right part of drawing).
Figure 4: Dimensions
Figure 3: Transmitter mounting
