Mvac Central vacuum system - Preface and Schematics; Preface; Schematic - M4; Schematic - Other Models

6
7

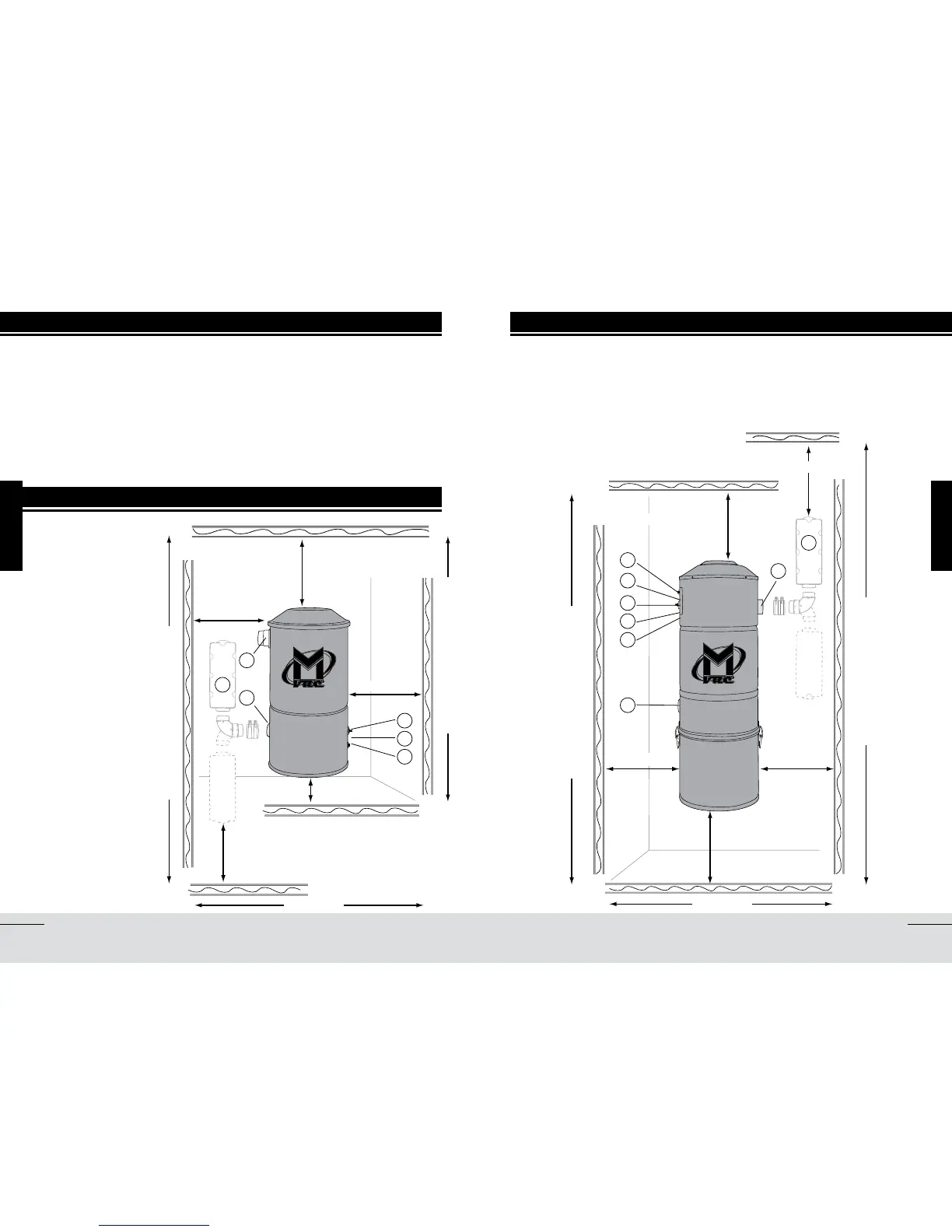

sCheMaTiC – OTher MOdels
1. Circuit Breaker
2. Reset (M9, M10, M11 and M12 models)
3. LED (M9, M10, M11 and M12 models)
4. Low Voltage Connector
5. Serial Number
6. Air Intake
7. Air Exhaust
8. Muffler (optional)
6
5
4
3
2
1
7
PrefaCe
Your new Mvac central vaccum system was designed and manufactured in
Blainville, Quebec, by the largest central vacuum cleaner manufacturer in
Canada. With over forty five years of experience in the field, we provide a high-
quality, state-of-the-art product, and guarantee your complete satisfaction. Our
extensive network of qualified professionals ensures first quality service near you.
Contact us for the location of the Mvac authorized service center in your area.
sCheMaTiC – M4
1. Circuit Breaker
2. Low Voltage Connector
3. Serial Number
4. Air Intake
5. Air Exhaust
6. Muffler (optional)
min. 30 cm (12")
min. 5 cm (2")
min. 30 cm (12")
Recommended 40 cm (16")
min. 30 cm (12")
2
3
4
1
5
min. 30 cm (12")
With muffler turned down
Muffler turned up 183 cm (72")
Muffler turned down 163 cm (64")
95 cm (38")
Muffler turned up 92 cm (36.5")
Muffler turned down 140 cm (55")
90 cm (36")
min. 30 cm (12")
min. 30 cm (12")
Recommanded 40 cm (16")
min. 30 cm (12")
min. 30 cm (12")
min. 30 cm (12")
With muffler turned down
6
