1.2 LOADER USE LIMITS ON A TRACTOR WITH A ROLL CAGE WITH 2 UPRIGHTS
Additionalinformationforatractorttedwitharollcagewithtwouprights.
1.2.1 Warning
If the tractor is not tted with a structure protecting against falling loads, the driver is exposed to constant risk when
handling loads.
If the tractor is tted with a roll cage only, the loader must be equipped with a parallelogram.
Reminder: only implements recommended by the MX loader manufacturer may be used.
1.2.2 Usage precautions
For safe work, the following usage precautions must be observed:
— Use the implement designed for the work to be carried out.
— Adjust the indicator rod according to the implement used.
— Ensure the stability and hold of the load in the implement.
— The maximum loading level of the implement must not exceed the lowest side for bulk loads, and not exceed the height
of the backplate for unit loads (see Fig. 1).
— Move the tractor-loader unit carefully.
— Travel with the load at ground level and at moderate speed.
— During a lifting operation and when moving, keep your eyes on the load from when the implement’s pivot point (A)
passes the horizontal of the loader’s pivot point (B) (see Fig. 2). If necessary, correct the position of the implement so
that the load is never directed towards the driver (see Fig. 3).

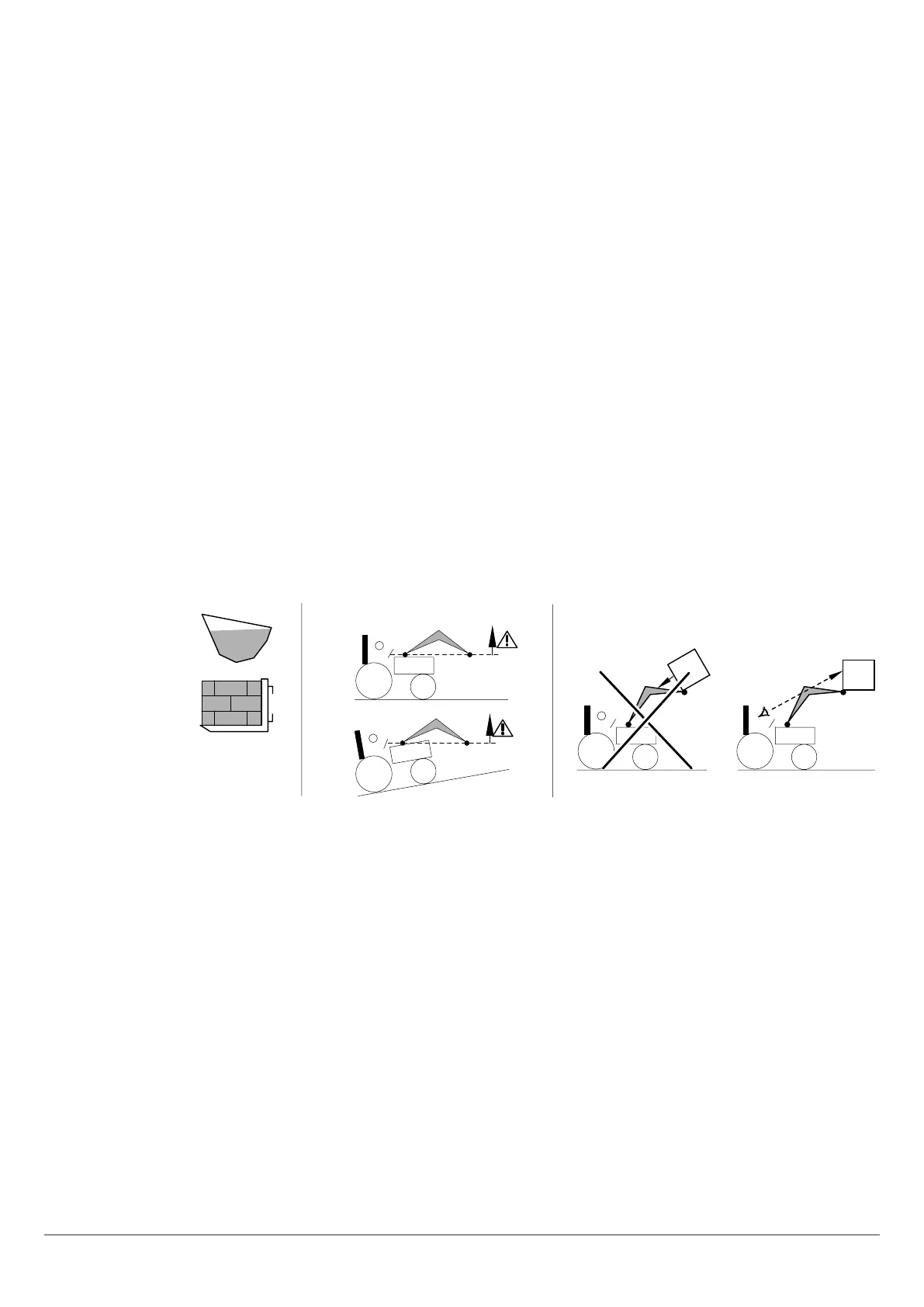

Fig. 1 Fig. 2 Fig. 3
Bulk load
Unit load
Pallet type
(A)
(B)
(A)
(B)
OK
1.3 NON-COMPLIANCE WITH THE INSTRUCTIONS FOR SAFETY AND USE
— MX products are designed to be used at the maximum hydraulic pressure indicated by the manufacturer for the features
of the tractor. Pressure exceeding this value results in additional restrictions and therefore invalidates the guarantee
oered on equipment supplied by MX.
— Never make any changes to the hose connections.
— Breaking lead seals will void any liability on the part of MX for all its equipment.
— Any assembly of the MX loader which ignores the recommendations of the MX price list in force at the purchase date
cancels the MX guarantee for the whole supply.
— Any modication to any item supplied by MX (implements, loader, frame, etc.), or installation or use of an implement
or component not recommended by MX on the MX loader, will render the MX guarantee on all supplied items null and void.
— Use only genuine MX spare parts. Do not carry out any modications yourself or have anyone else do so on your MX
loader and its implements (mechanical, electrical, hydraulic or pneumatic specications) without seeking prior approval
in writing from MX. Failure to comply these rules may make your MX loader hazardous. In the event of damage or injury,
MX shall not be held responsible in any way.
— Warranty cover will cease immediately in the event of failure to observe the standards and instructions for use and
maintenance of the MX loader as stipulated in the user manual. MX shall not be held responsible for accidents that
might result from actions contrary to these restrictions.
