mxr Joshua Ambient Echo - External Controls; CTR Jack Functionality; Footswitch Operation

M309 | MXR
®
Joshua
®
Ambient Echo 2
1 CTR jack allows an expression pedal to control settings or a tap switch to set tempo of echoes
2 FOOTSWITCH toggles eect on/bypass (large blue LED indicates on) and engages Tap mode
3 REGEN knob sets number of echoes
4 DELAY knob adjusts tempo of echoes
5 ECHO 2 button adds secondary echoes at ¼ note tempo (illuminates blue when on)
6 TRAILS button toggles eect Trails mode on/o (illuminates red when on)
7 VOICE knob adjusts mix of -1, +1, and +2 octave signal blend
8 MOD knob adjusts intensity of modulation
9 MIX knob adjusts overall volume of eect signal
10 DIVISION knob selects ratio of primary echoes to the tempo
2

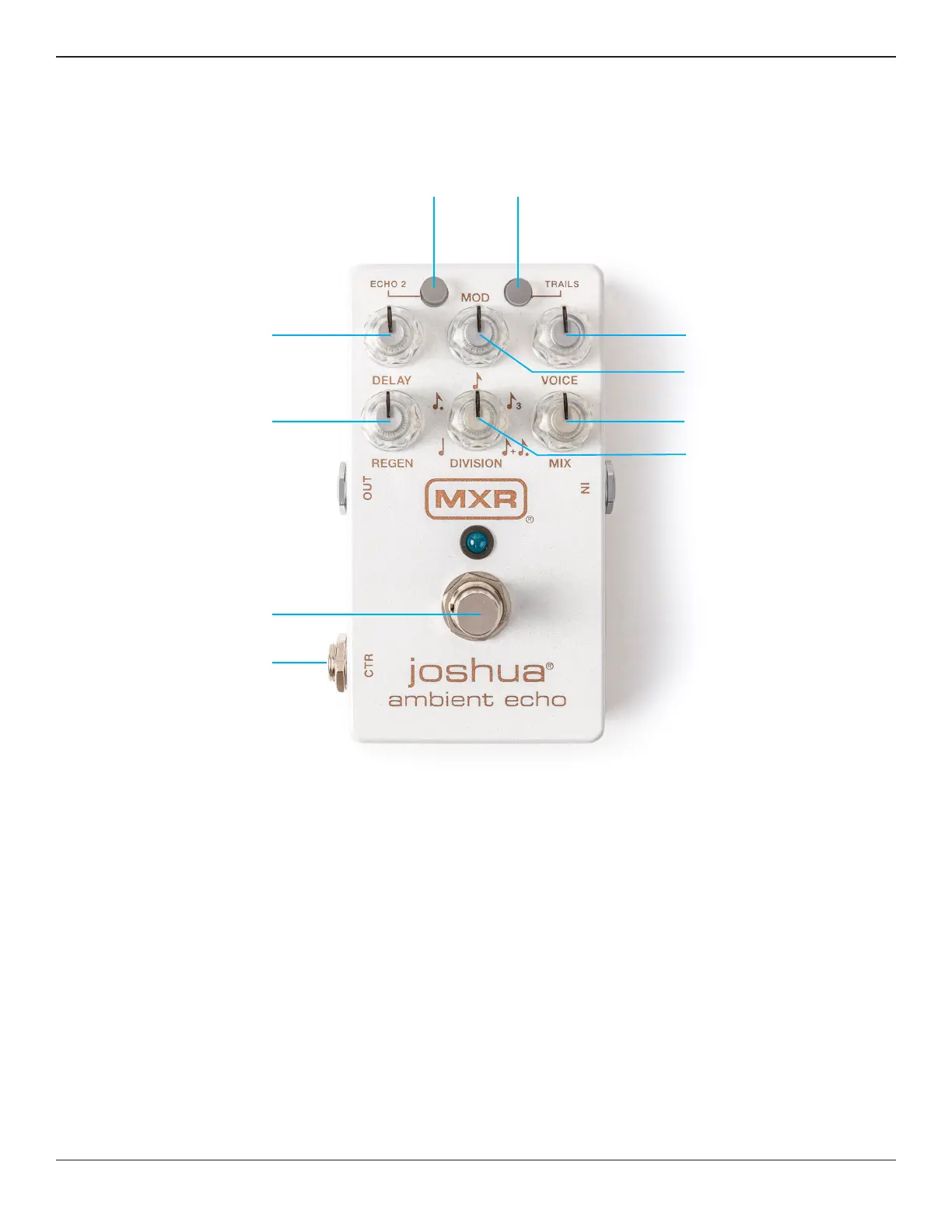

External Controls
3
1
4
5 6
9
7
10
8
