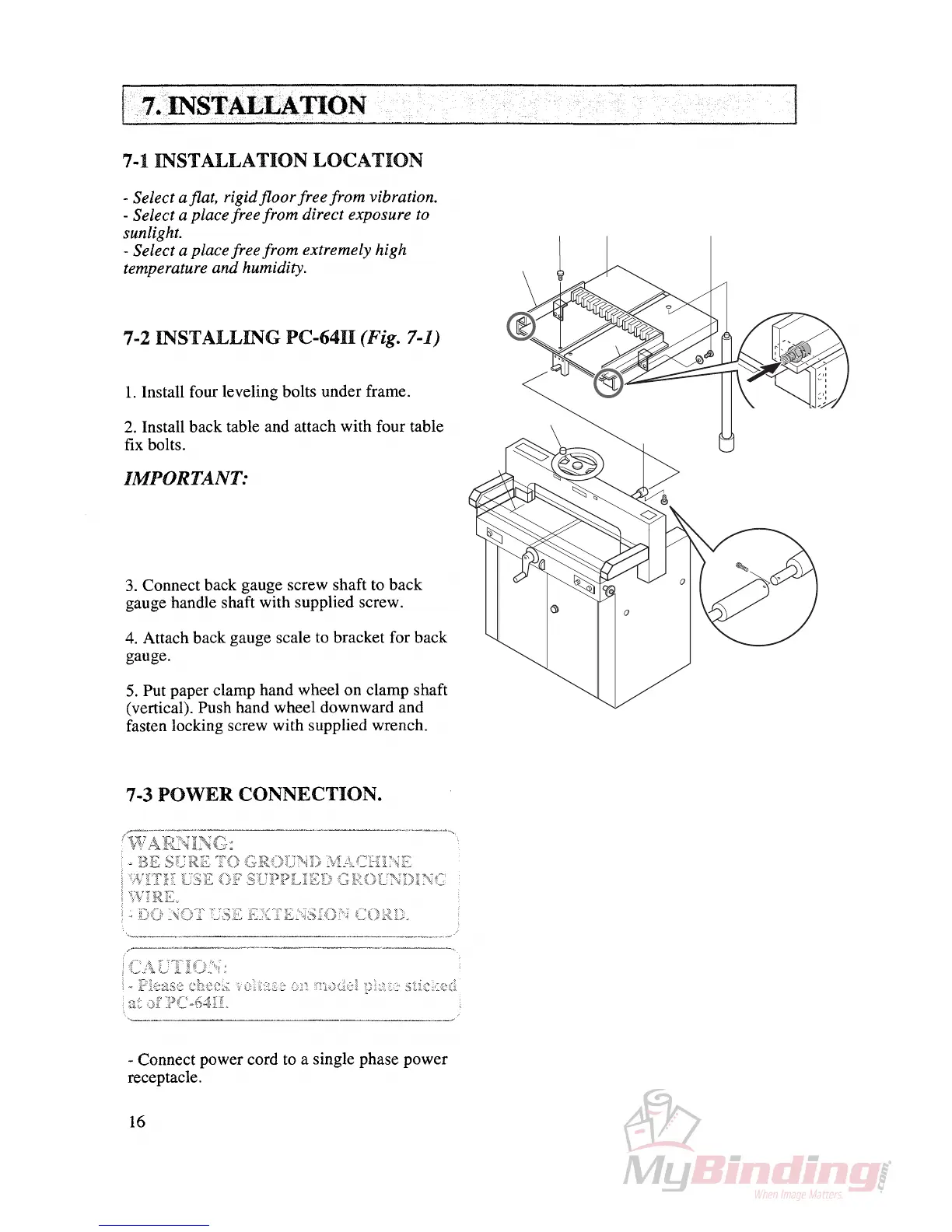

MyBinding Standard PC II- - Installation; Installation Location; Installing the PC-64 II; Power Connection

Table Fix Bolt Table Fix Bolt
Back Table
Backgauge
Screw
Screw
Backgauge
Handle Shaft
Hand Wheel
(B)
(B)
(C)
Position the back
table so that the
tip of this screw
hits against the
casting frame.
- Side Guide (C) on front table should be aligned
with side guide (B) on back table.
Fig. 7-1
