Chapter 5 Maintenance and Inspection
UD-series Screw Compressor 5.5 Reassembly
5-56

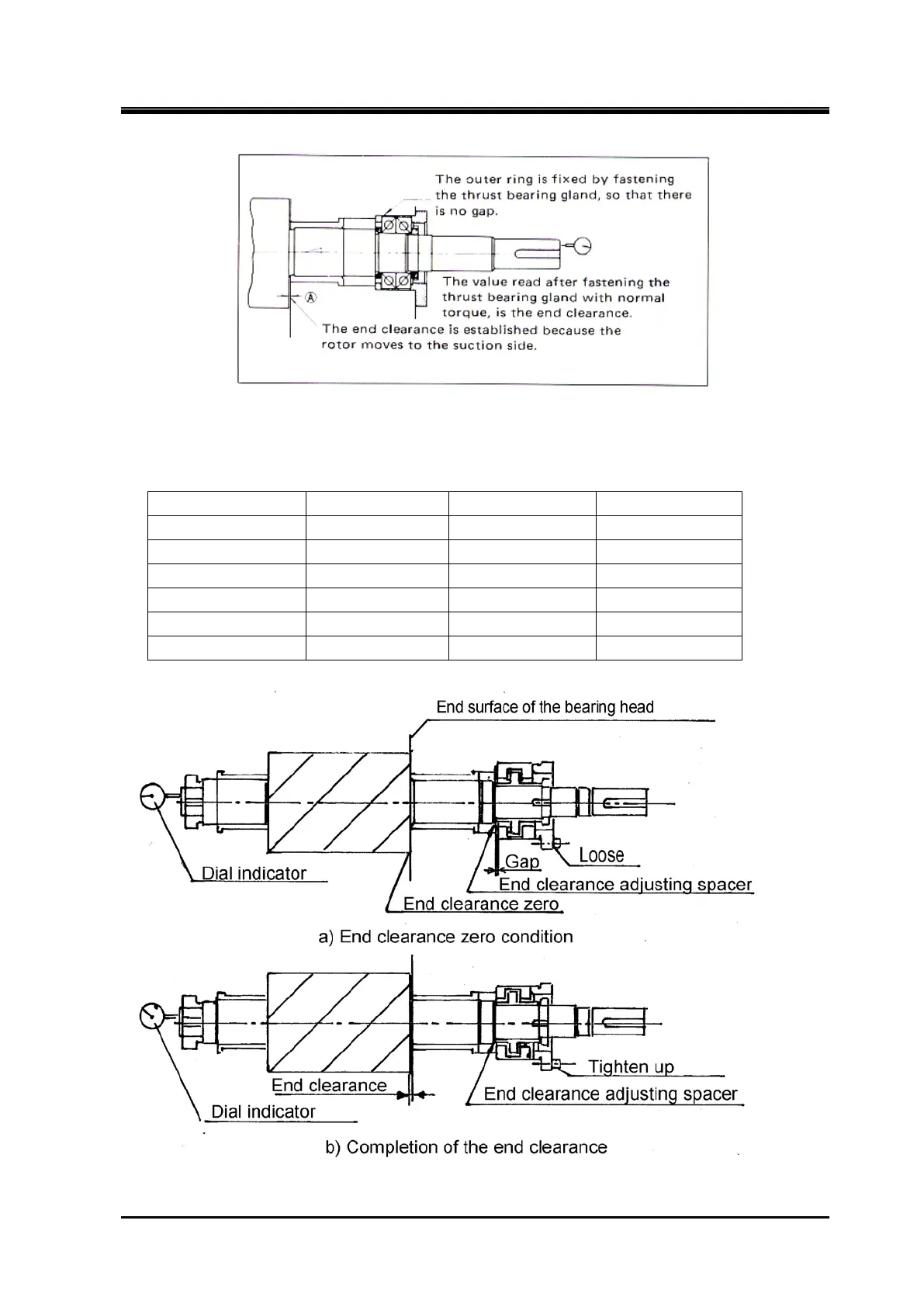

Figure 5-24 End Clearance adjustment (II)
Tightening torque
Figure 5-25
Model
N
・
m
Kg
・
cm
Ft
・
lb
125
30
300
21.70
160
40
400
28.93
200
50
500
36.17
250
60
600
43.40
320
120
1200
86.78
400
90
900
65.10
