mycom 3225MSC User Manual

2202MYJE-MY-C8-N_2018.02.
Chapter 5 Maintenance and Inspection
Compound 2-stage Screw Compressor 3225**C 5.5 Reassembly
5-67

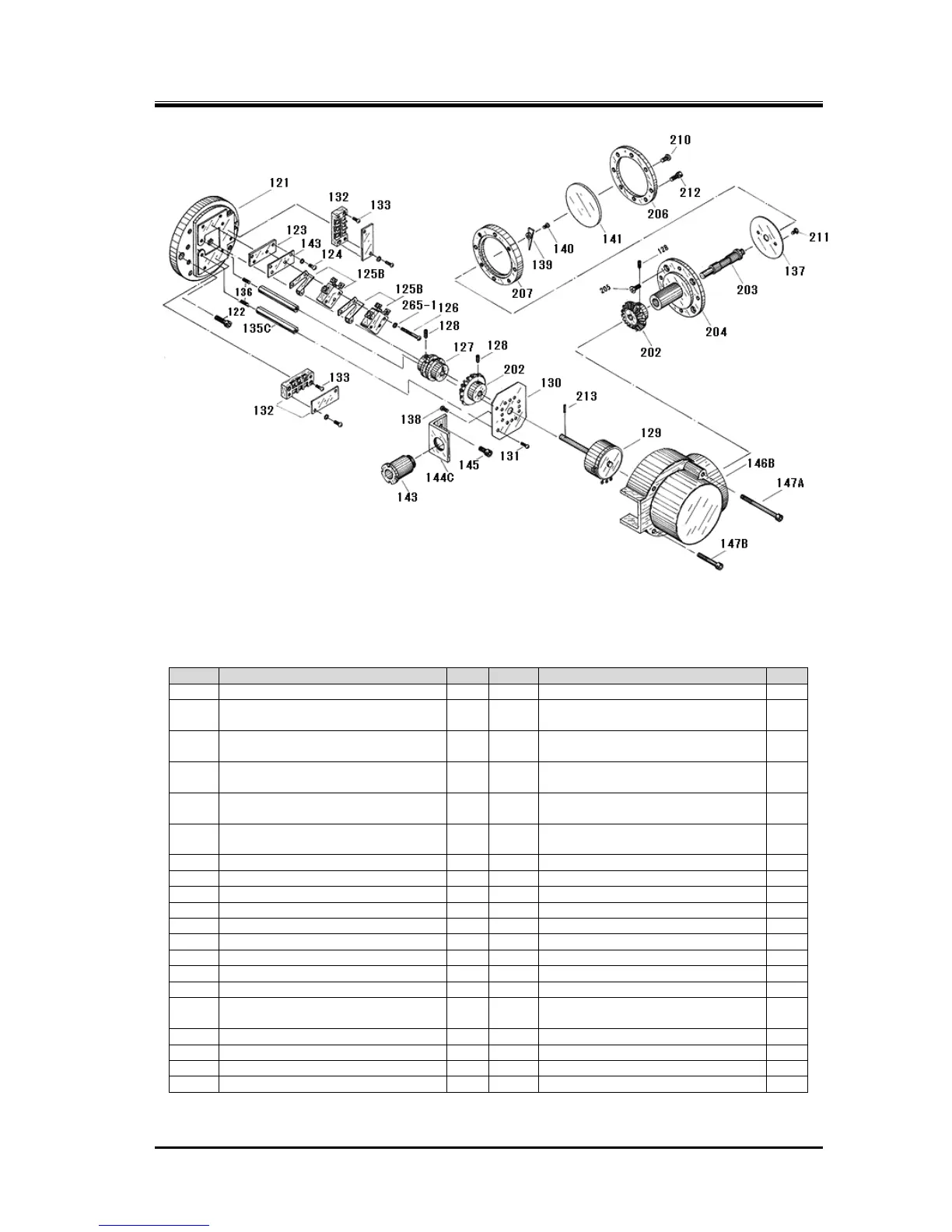

Figure 5-22 The Low-stage Unloader Indicator of 3225**C (Type 1612C)
Table 5-12 Component Parts of the Low-stage Unloader Indicator for 3225**C
P/N
Part Name
Q'ty
P/N
Part Name
Q'ty
121
Micro-switch base plate
1
143
Electric cable gland
1
122
Hexagon socket head cap screw, M6
× 25
3
144
Bracket, 125L
1
123
Micro-switch base plate, 125L
1
145
Hexagon socket head cap screw, M6
× 15
2
124
Philips Screw, M3 × 10
2
146
Unloader indicator cover [2],
1612LSC
1
125
Micro-switch
2
147A
Hexagon socket head cap screw, M6
× 60
2
126
Philips Screw, M2.5 × 25
4
147B
Hexagon socket head cap screw, M6
× 95
2
127
Micro-switch cam, 0 to 100 %
1
149
Micro-switch insulating plate, 125L
1
128
Hexagon socket set screw, M4 × 8
1
202
Bevel gear [2]. 6 dia.
2
129
Potentiometer
1
203
Indicator dial needle shaft
1
130
Potentiometer mounting plate
1
204
Indicator dial needle shaft holder
1
131
Philips Screw, M3 × 5
3
205
Countersunk screw, M5 × 14
4
132
Terminal block
1
206
Indicator glass spacer
1
133
Philips Screw, M3 × 20
2
207
Indicator glass holder
1
134
Dial plate support [3]
2
210
Philips Screw, M5 × 15
4
136
Hexagon socket set screw, M3 × 14
3
211
Countersunk screw, M3 × 5
2
137
Indicator dial [B], 0 to 100%
1
212
Hexagon socket head cap screw, M5
× 30
4
138
Philips Screw, M3 × 5
2
213
Spring pin 2 dia. × 8
1
139
Indicator dial needle
1
265-1
Spring washer, M2.5
2
140
Philips Screw, M3 × 10
1
265-2
Spring washer, M3
2
141
Indicator glass
1
-
-
-
