Chapter 3 Installation
Compound 2-stage Screw Compresso
r
3225*
*C
3.2 Installation Works
3-3

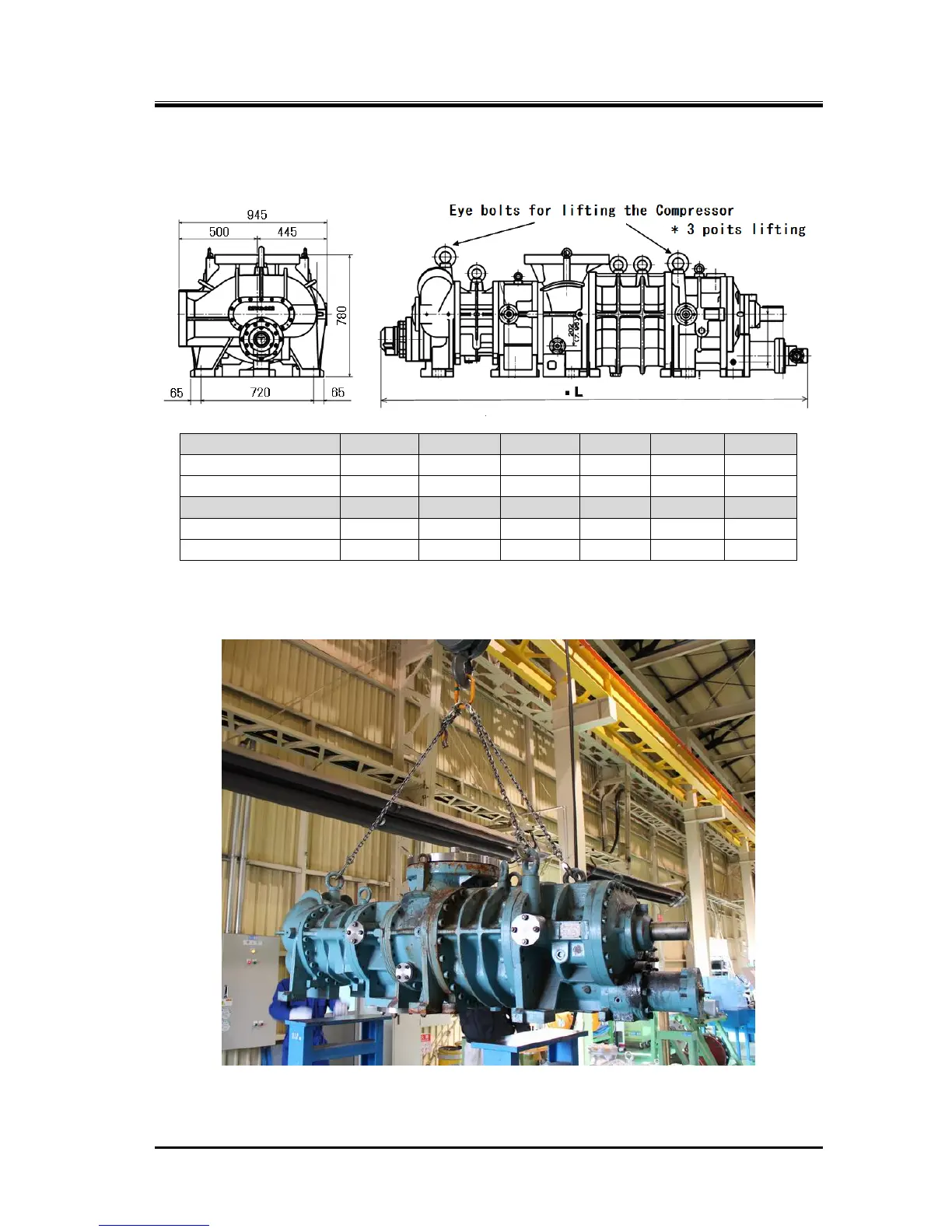

Outer Dimensions, Mass and Lifting Position
3225LLLC
3225LLMC
3225LLSC
3225LLC
3225LMC
3225LSC
Product mass
(kg)
4150
4100
4020
3440
3390
3310
L
(mm)
2960.5
2927.5
2820.5
2863.5
2830.5
2723.5
3225MLC
3225MMC
3225MSC
322SLC
322SMC
3225SSC
Product mass
(kg)
3290
3240
3160
3150
3100
3020
L
(mm)
2776.5
2743.5
2636.5
2604.5
2571.5
2464.5
Figure 3-1 Outer Dimensi
ons, Mass and Lif
ting Position of Compressor
Photo 002 Lif
ting Position
43
45
