Chapter 2 Compressor Specifications and Configuration
Screw Compressor i-series 2.5
Mechanisms
2-35
(A) Properly adapted Vi to load condition
Both the required compression ratio and Vi are low. Both the required compression ratio and Vi are high.
(B) Improperly adapted Vi to load condition
Too low Vi compared with necessary compression ratio. Too high Vi compared with necessary compression ratio

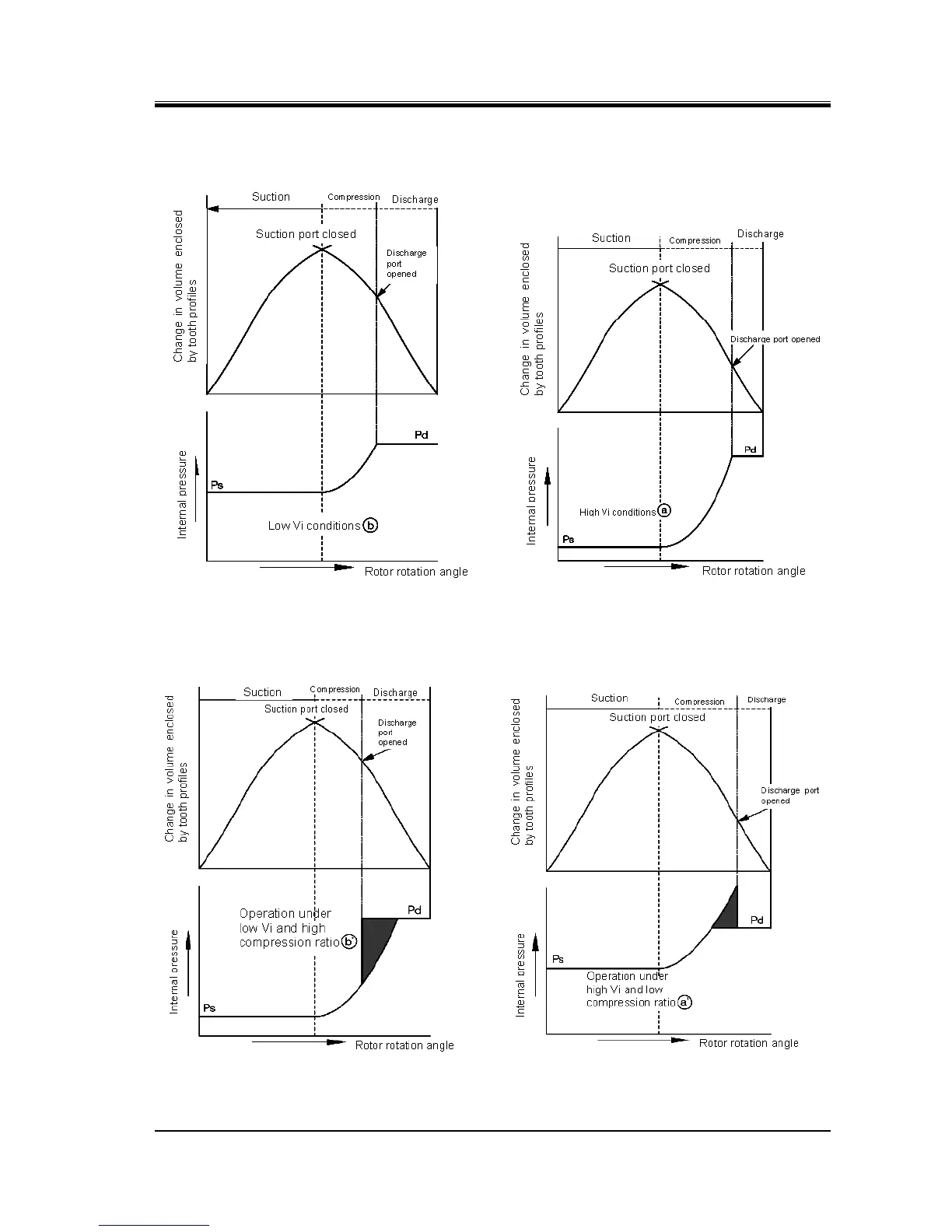

Figure 2-27 Relationship between Volume ratio (Vi) and Operation Conditions
