Proteco S.r.l. Via Neive, 77 - 12050 CASTAGNITO (CN) ITALY
Tel. +39 0173 210111 - Fax +39 0173 210199 - www.mygateautomation.com
8
9

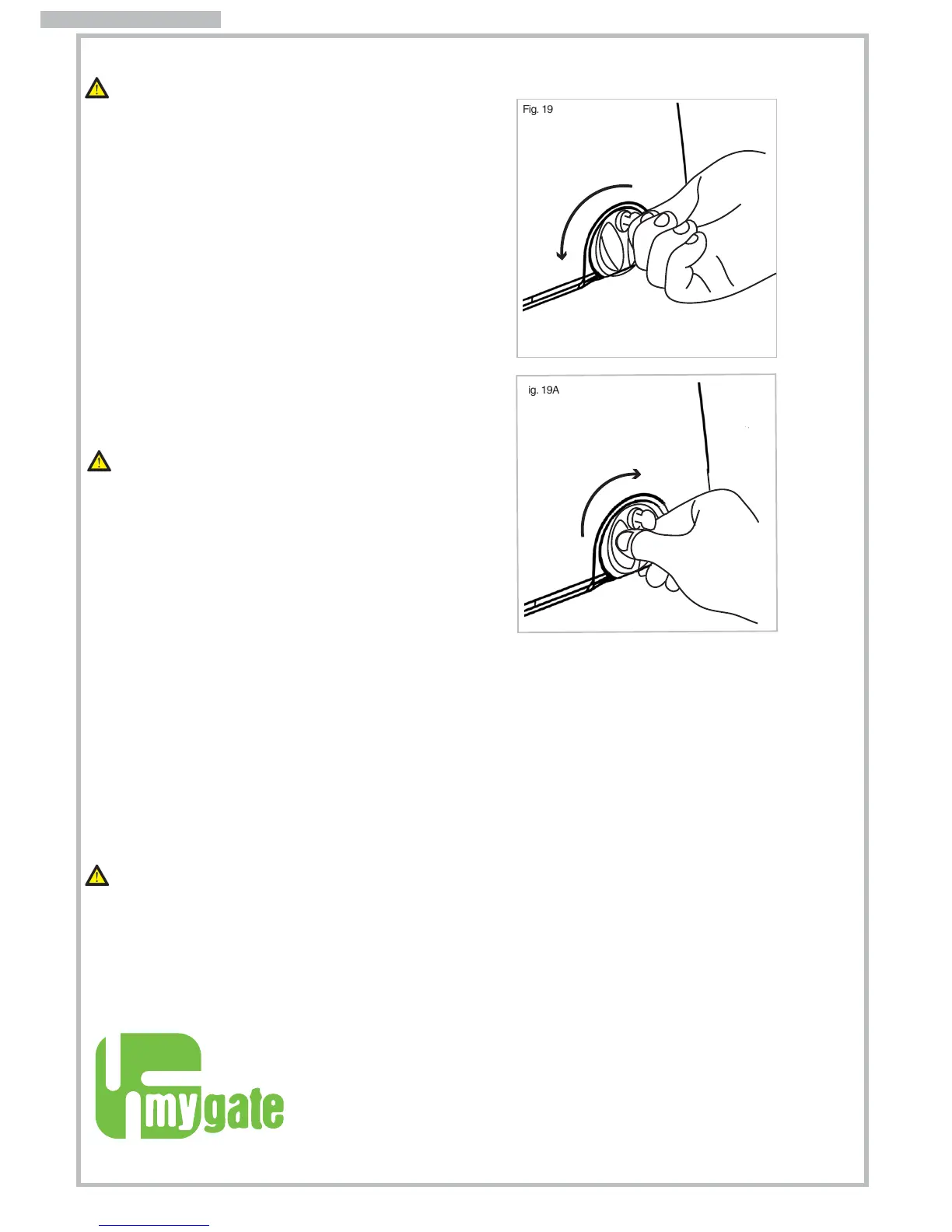

Fig. 19
Fig. 19A
6. RELEASE PROCEDURE FOR MANUAL OPERATION
3.6 ASSEMBLY THE RACK
3.6.1 INSTALLING THE TOOTHED RACK B117 -
PVC RACK M4 20X26MM WITH INNER STEEL
FRAME (0.5M SECTIONS)
a) Move the gate manually to its open position.
b) Align the first section of the rack to the gate edge and lower
it on the pinion. Use a spirit-level to make sure it is perfectly
straight.
c) Fix this first section of rack to the gate with the provided
self-tapping screws. Fix the screws in the in the middle of the
slot as illustrated (Fig. 7).
d) Close the gate manually for about ½ meter, join the second
section of rack to first one and place it on the motor drive
pinion cog.
7. MAINTENANCE
Check the correct working of the automation at least twice a
year, pay particular attention to the safety devices, the torque
force produced, the release system for manual operation and
to all the mechanical moving parts. Any components display-
ing significant wear should be obtained from Proteco or
associated agents and replaced immediately.
8. DISPOSAL
Do not pollute the environment
Always cut the main power of the system during the release
and re-locking procedure to avoid any accidental activa-
tion of the gate.
6.1 How to unlock the motor for manual opera-
ting
a) Insert the key into the lock and turn it anti-clockwise (Fig. 19)
b) Turn the handle clockwise completely (180°) (Fig.19A)
c) Open and close the gate manually as required.
6.2 How to restore the automatic working
a) Turn the handle anti-clockwise completely.
b) Turn the key clockwise and take it out.
c) Manually move the gate until it re-engages the locking
system.
d) Restore power to the automation system.
Always keep the release key together with the instruction
manual in a safe place.
Some components may contain polluting substances.
Ensure materials are passed to authorised collection centres,
according to the laws and the regulations in force in your
locality for safe disposal.
ENGLISHENGLISH
