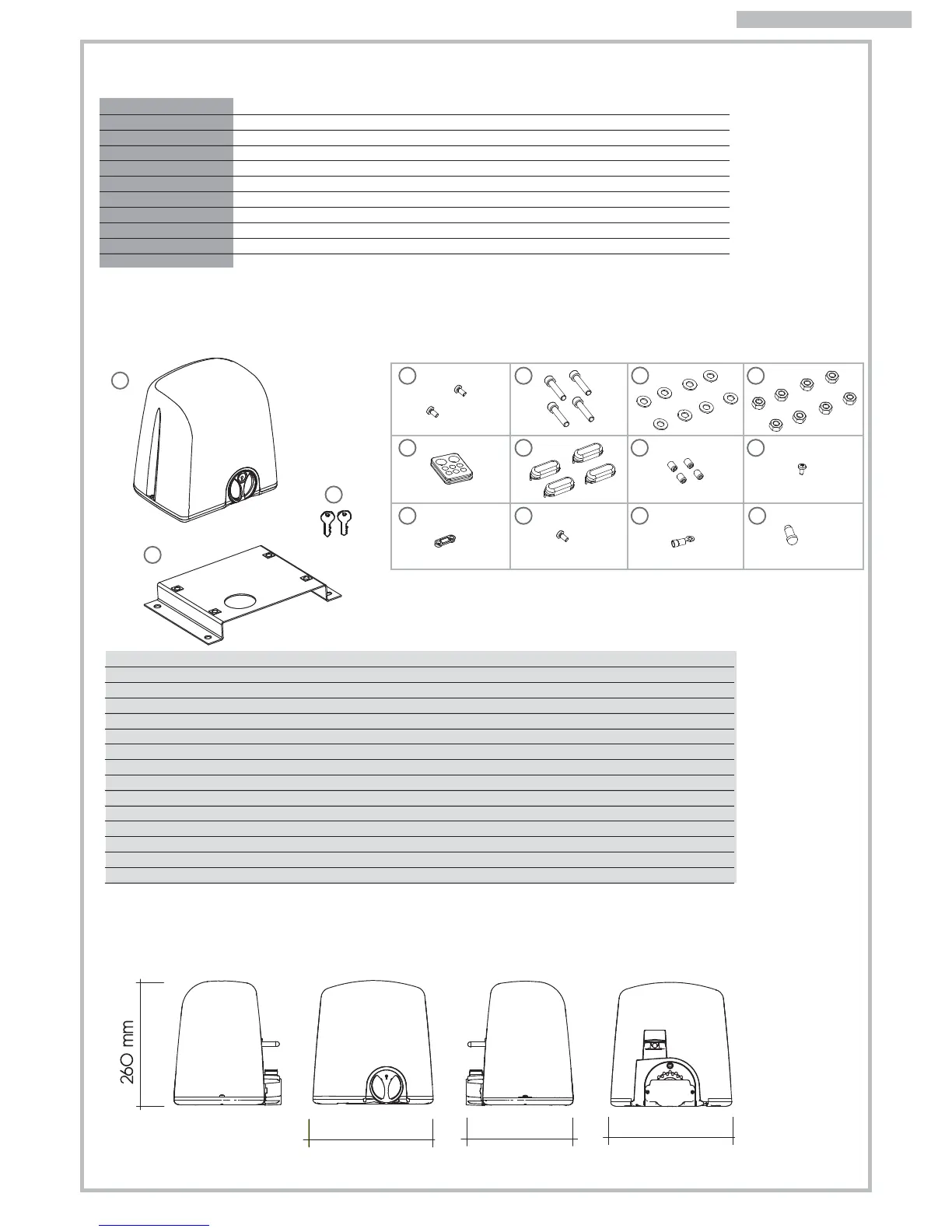

MyGate strike - Technical Specifications; Pack Contents

13
3 4
7 8 9 10
11 12 14
1
2
5
6
260 mm 230 mm 260 mm
15
2
2.1 TECHNICAL SPECIFICATIONS
Power supply
Current
Motor power
Capacitor
Thermic Protection
Maximum thrust
Class IPProtection
Revolutions (speed)
Opening speed
Gate maximum weight
Duty Cycle
STRIKE 5 STRIKE 8 STRIKE 4 STRIKE 5 110V STRIKE 8 110V
2.3 DIMENSIONS
2.1 PACK CONTENTS
1 Strike Gear motor
2 MPIS04 Anchor plate
3 MVI0510B2 Screw 5x10 for cover
4 MVI1060AZ Screw 10x60 for motor-anchor plate fixing
5 MRO10Z Washer Ø10 for motor-anchor plate fixing
6 MDAM10Z Nut Ø10 for motor-anchor plate fixing
7 MPC06 Cable grommet SH70
8 MTP22 Slot-cover
9 MGR0610Z Limit bracket fixing screw 6x10 (for universal steel brackets only)
10 MVI3595D Screw TC 3.5x9.5 for cable-block
11 MBC02 Black cable block
12 MVI0510B2 Screw TC 5x10 for lug
13 MFAG01 Yellow lug for earth system
14 MMA02 Limit-switch tip
15 MCH03 Release key
230V ~ 50Hz 230V ~ 50Hz 24Vdc 110V ~ 60Hz 110V ~ 60Hz
1,2 - 1,7A 1,2 - 2A 0,7 - 10A 2,3 - 3,5A 2,2 - 4A
250W 300W 80W 280W 330W
8µF 10µF -- 30µF 30µF
150°C 150°C -- 150°C 150°C
350 N 440 N 350 N 380 N 460 N
54 54 54 54 54
1400 rpm 1400 rpm 1600 rpm 1700 rpm 1700 rpm
10,5 m/min 10,5 m/min 11 m/min 13 m/min 13 m/min
500 Kg 800 Kg 450 Kg 500 Kg 800 Kg
40% 40% 80% 40% 40%
ENGLISH
