hyperion X5 2D/3D - TECHNICAL MANUAL
TROUBLESHOOTING
6. TROUBLESHOOTING
6.1 CRANIOSTAT ADJUSTMENT

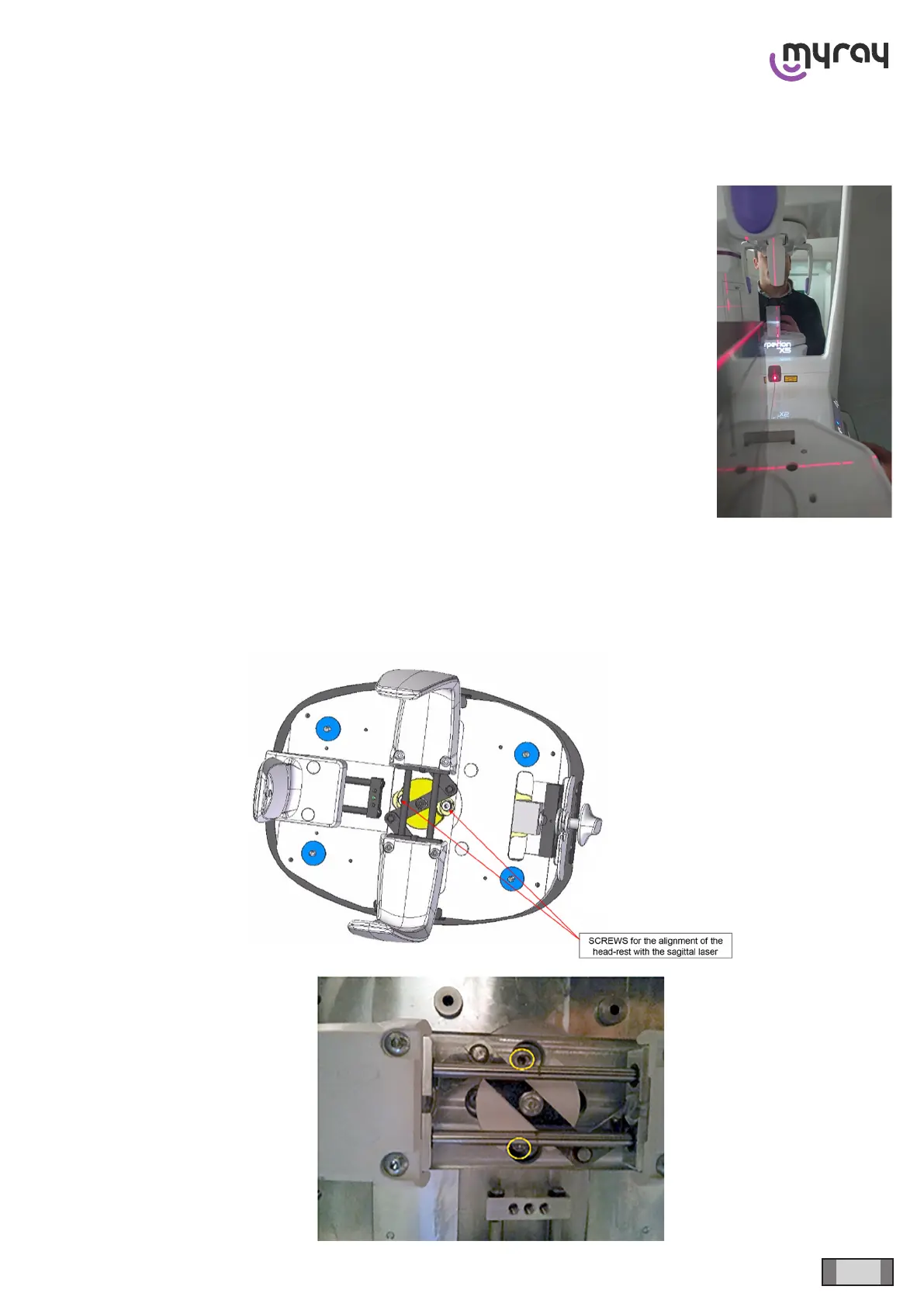

Should the craniostat not be centred with respect to the sagittal laser, perform a mechanical
adjustment:
Proceed as follows:
1. Check that craniostat is centred
2. Close the 2 side tabs
3. Remove lower cover. There are no screws, just pull the cover downwards.
4. Loosen the 2 screws shown in the gure and move the craniostat to align it to the sagittal laser.
