Installation
SECTION 2
Installation
2.1 GENERAL
This section contains the recommended procedures required to
properly install the 750/760 Series Monitors, to connect the
Cell(s), Alarm relay, Recorder and/or Transmitter cable
connections.
WARNING!
The Myron L Company recommends that all mounting and
electrical installation procedures be performed by trained and
authorized personnel ONLY! Failure to do so could result in
damage to equipment and/or property.

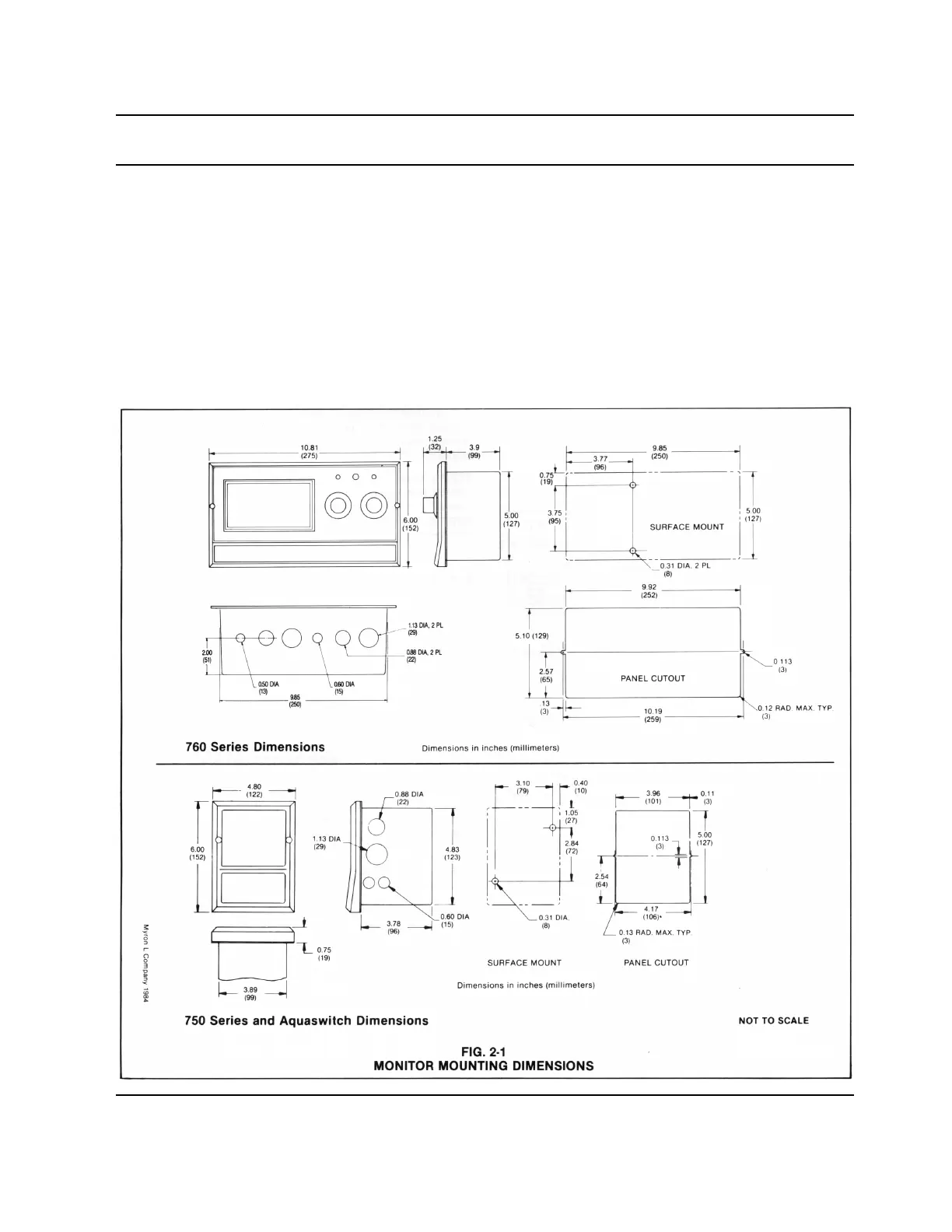

2.2 MECHANICAL INSTALLATION
All Monitor electronics are packaged inside drip/weatherproof
housings. Their physical dimensions have been designed to
allow for both surface and panel mounting.
There are three basic guidelines to consider when selecting the
monitor’s mounting location.
1 Select a site that limits the Monitor’s exposure to
excessive moisture and corrosive fumes.
2 For best results, position your control area as close as
possible to the point(s) being monitored.
3
