Myson UFH - Installation of Actuators; Strain Relief; Dimensions; Technical Data

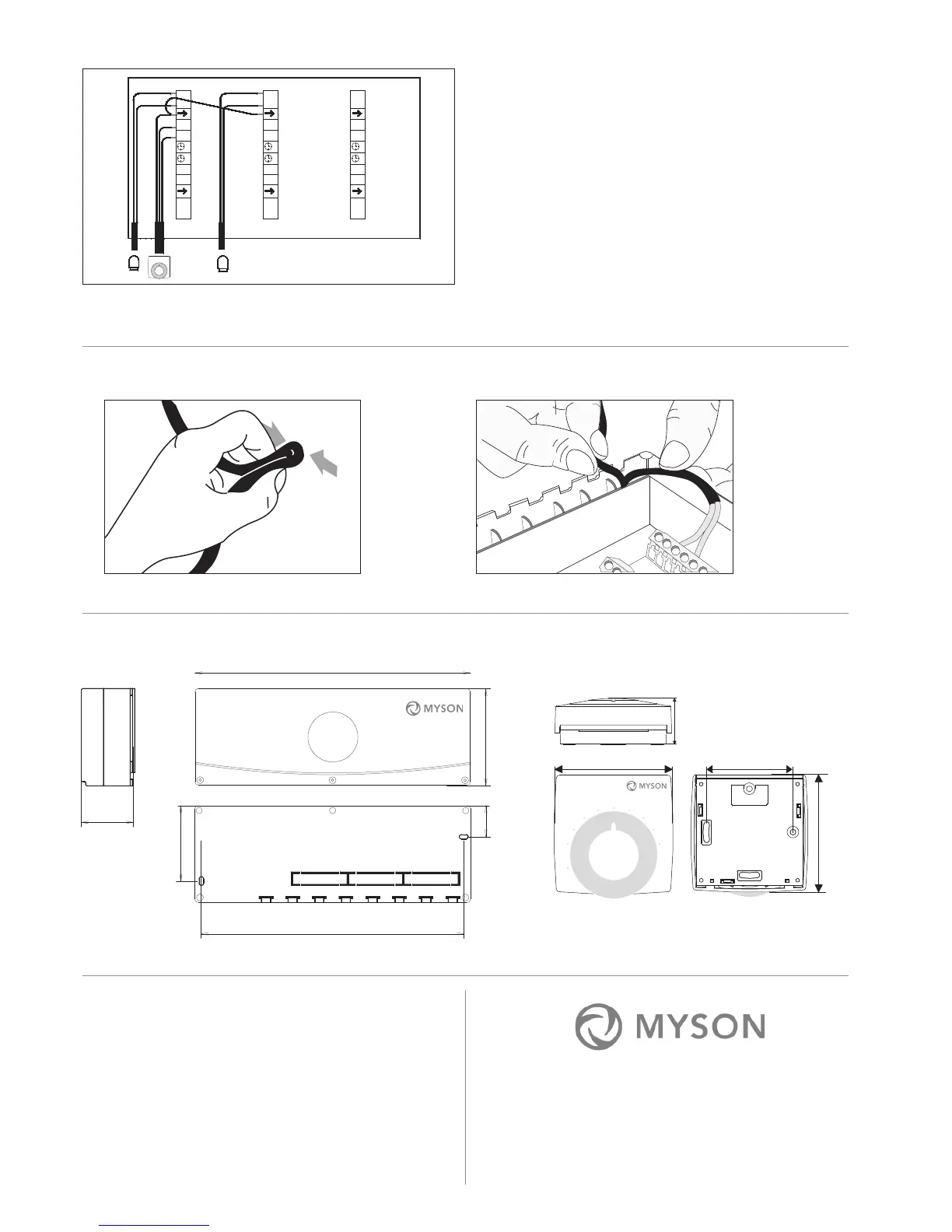

3. INSTALLATION OF ACTUATORS
Fig. 3a + 3b Strain relief for fl at actuator wires.
Part No. 90071v02 01/09
3a)
3b)
Fig. 4b Dimensions of the thermostat
- For further information about installation of the
thermostat, see separate manual.
310 mm
295 mm
55 mm
34 mm
110 mm
84 mm
Fig. 4a Dimensions of the wiring centre.
4. DIMENSIONS
5. TECHNICAL DATA
Voltage: 24V AC
Fuse: 200 mA T (5x20mm)
Number of thermostats: Max. 10
Number of outputs: 10 (24V AC/ 0.5A)
Number of actuators: Max. 12 (2W, I-max 200mA)
Connector type: Screw terminals
Actuator cable: Double insulated min. 0.35 mm2
Ambient temperature: 0-50 ºC
Protection class: IP20
Ambient humidity: <85%
L
1
2
TA
N
L
TA
L
1
2
TA
N
TA
N
L
N
L
N
L
1
2
TA
N
TA
Fig. 2b. Connection of a room thermostat to more than one actuator.
Note: Maximum of four actuators can be connected to one room
thermostat.
80 mm
80 mm 60 mm
30 mm
10
20
30
d
