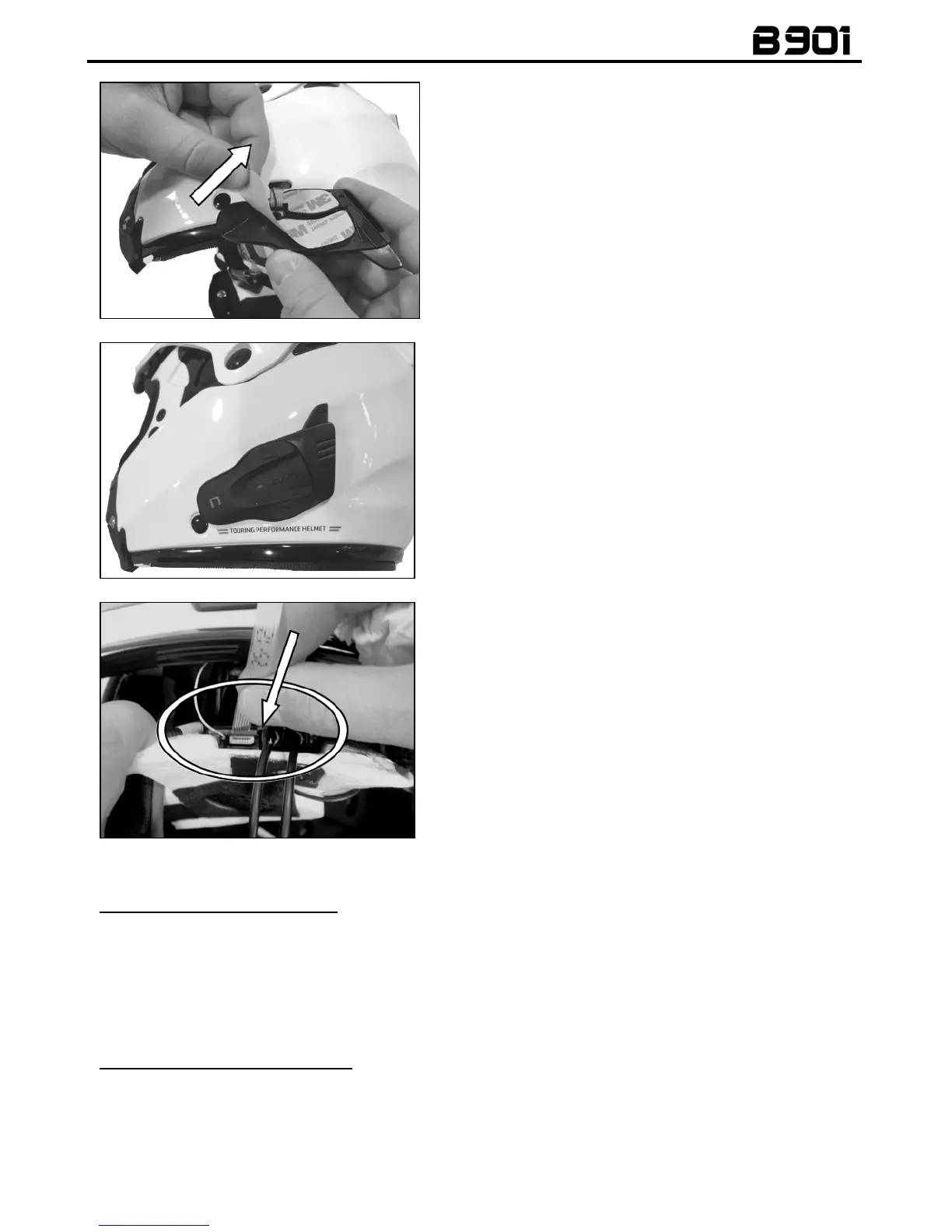

Fig. 32



Remove the protective film from the back of

the adhesive keyboard using the special tab

(Fig. 32)



Pass the antenna and keypad cable completely

through, inside the helmet.



Apply the keyboard to the shell and press down

on its entire surface to make sure that it sticks

properly. (Fig. 33)

Note

: Make sure you do not glue the antenna and

keypad cable underneath the keypad support.

Note: In the event that the keyboard is not

positioned correctly, peel it off right away

with extreme care and repeat the

positioning.

Note: It takes up to 24 hours for the keyboard to

stick completely. During this time, do not

expose the helmet to atmospheric agents.



Hook up the “flex” cable of the adhesive

keyboard to the e-box. (Fig. 34)



Reposition the left polystyrene cheek pad in its

housing.

Fig. 33

Fig. 34

ONLY FOR FULL-FACE HELMETS: Insert the chin strap into the polystyrene cheek pad loop.

 Reposition the left and right-hand side cheek pad by following the specific instructions provided in

the helmet user manual.

 Hook the rear part of the comfort padding to the helmet.

ONLY FOR FULL-FACE HELMETS: Insert the chin guard (microphone side), gently placing the

microphone in its housing. Then press down on the red tab until the chin guard is locked in

place on the helmet.
