9

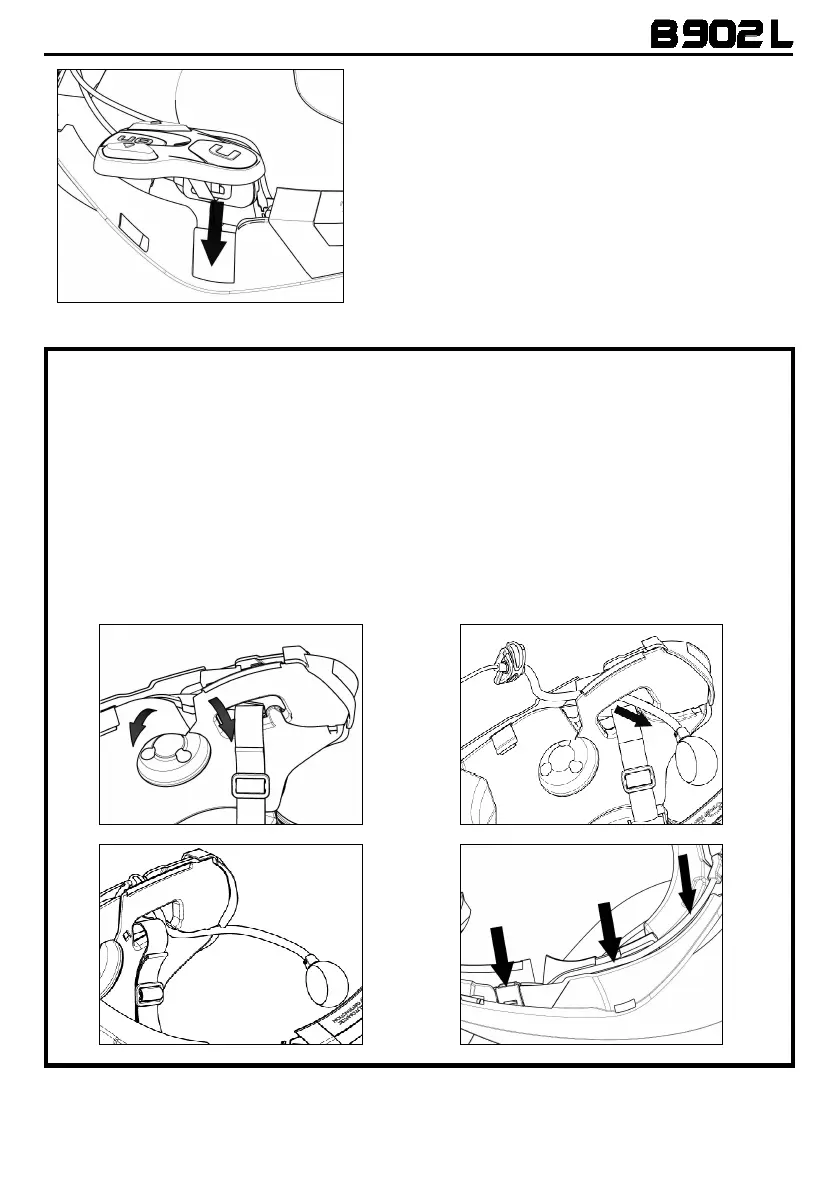

Fig. 6
N.B.: For positioning of the keypad in helmets
N87 and N100-5, follow the instructions provided
in the dedicated box.
• Fix the cable inside the helmet and make
sure the left fixing clip snaps into its housing.
• Hook up the keypad to the helmet by
clicking in the relevant hooks.
• Open the rubber cap of the B902L system.
• Reassemble the gasket and secure it with the
specific screw.
ONLY FOR HELMET N100-5
– positioning of wiring and microphone
Positioning the right side wiring and the microphone
:
• Lift up the plastic lining of the cheek padding (Fig. 7).
• Insert the microphone into the eyelet (Fig. 8) and position it in the special housing, then
inserting the metal boom in the groove found in the chin guard coupling frame (Fig. 9).
Caution
: make sure that the side of the microphone support with the writing “N-Com” is facing
inward.
• Fix the cable inside the helmet and make sure the right fixing clip snaps into its housing (Fig.
10).
• Reposition the plastic lining of the cheek padding, arranging it behind the two small stop hooks
(Fig. 11).
Fig. 7
Fig. 8
Fig. 9
Fig. 10
