N-Tron 100 Series User Manual

(Revised 2011-03-14)
14
In the event all Cat5e patch cable distances are small (i.e. All Ethernet devices are located the same local
cabinet and/or referenced to the same earth ground), it is permissible to use fully shielded cables terminated to
chassis ground at both ends in systems void of low level analog signals.

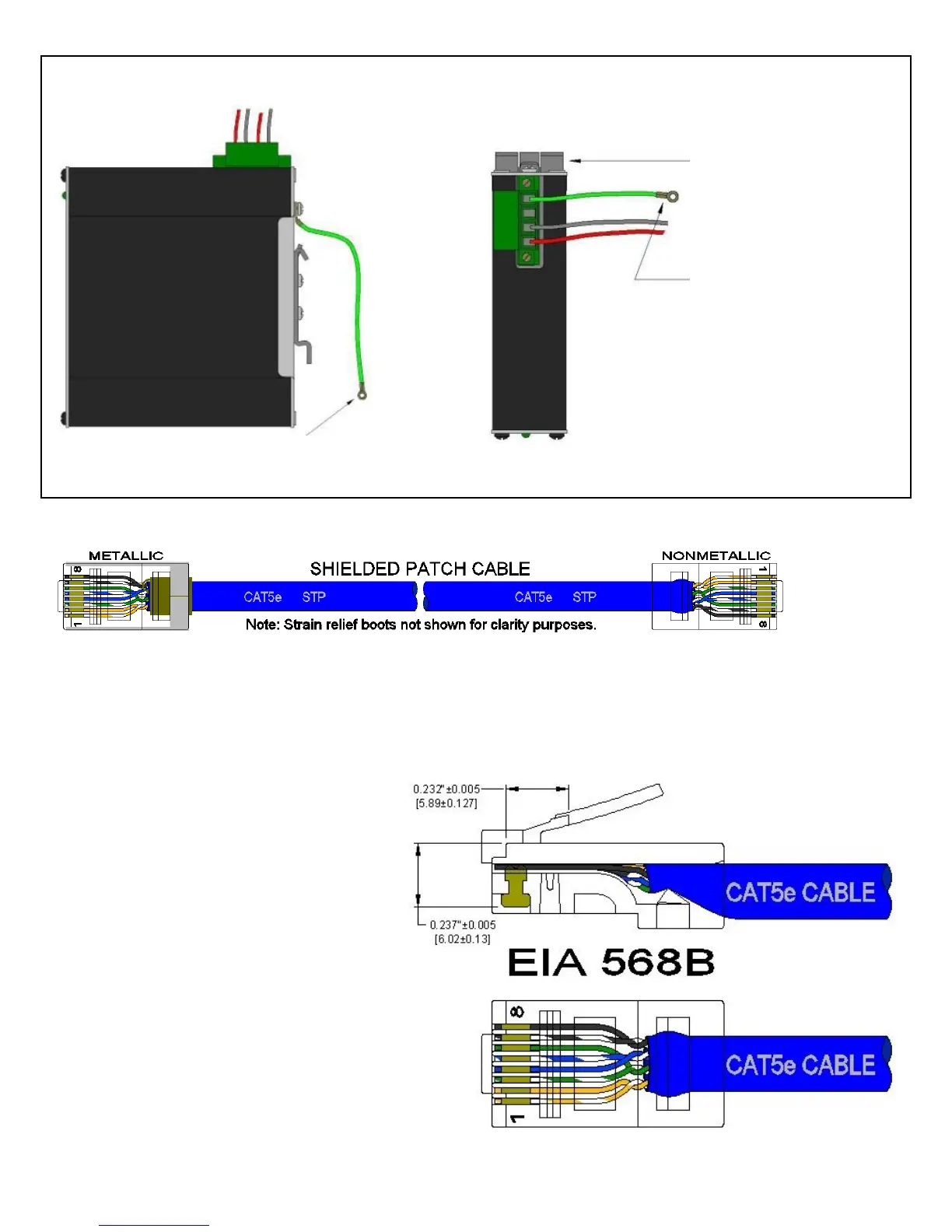

RJ45 CONNECTOR CRIMP
SPECIFICATIONS
Please reference the illustration for your
Cat5 cable specifications.
105TX-SL
DRAIN WIRE WITH LUG CONNECTING SWITCH CHASSIS
TO KNOWN GOOD GROUNDING POINT.
METALLIC
DIN-RAIL CLIP
DRAIN WIRE WITH LUG
CONNECTING SWITCH
CHASSIS TO KNOWN
GOOD GROUNDING
POINT.
