LED’s: The table below describes the operating modes:
LED
Color
Description
ON
Power is Applied.
OFF
Power is OFF.
LNK/ACT
ON
Link established, no Activity on cable.
BLINKING
Link established, Activity on cable
OFF
No link activity on cable.
SPD
ON
LINK is 100Mbps.
OFF
Link is 10Mbs.
APPLYING POWER

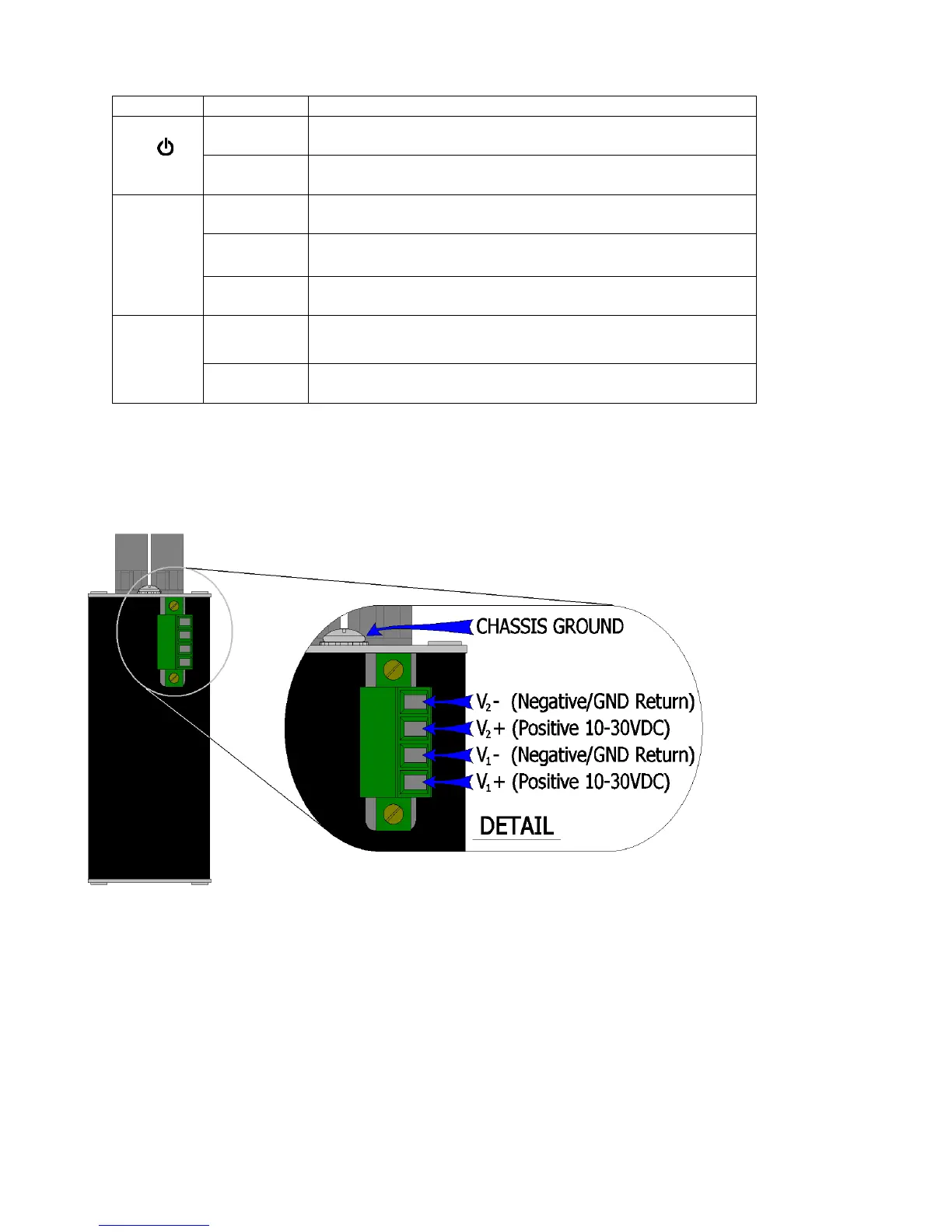

• 102MC, 104TX, 105TX, 105FX, 106FX2, 108TX, and 116TX Power Connector (Top View)
