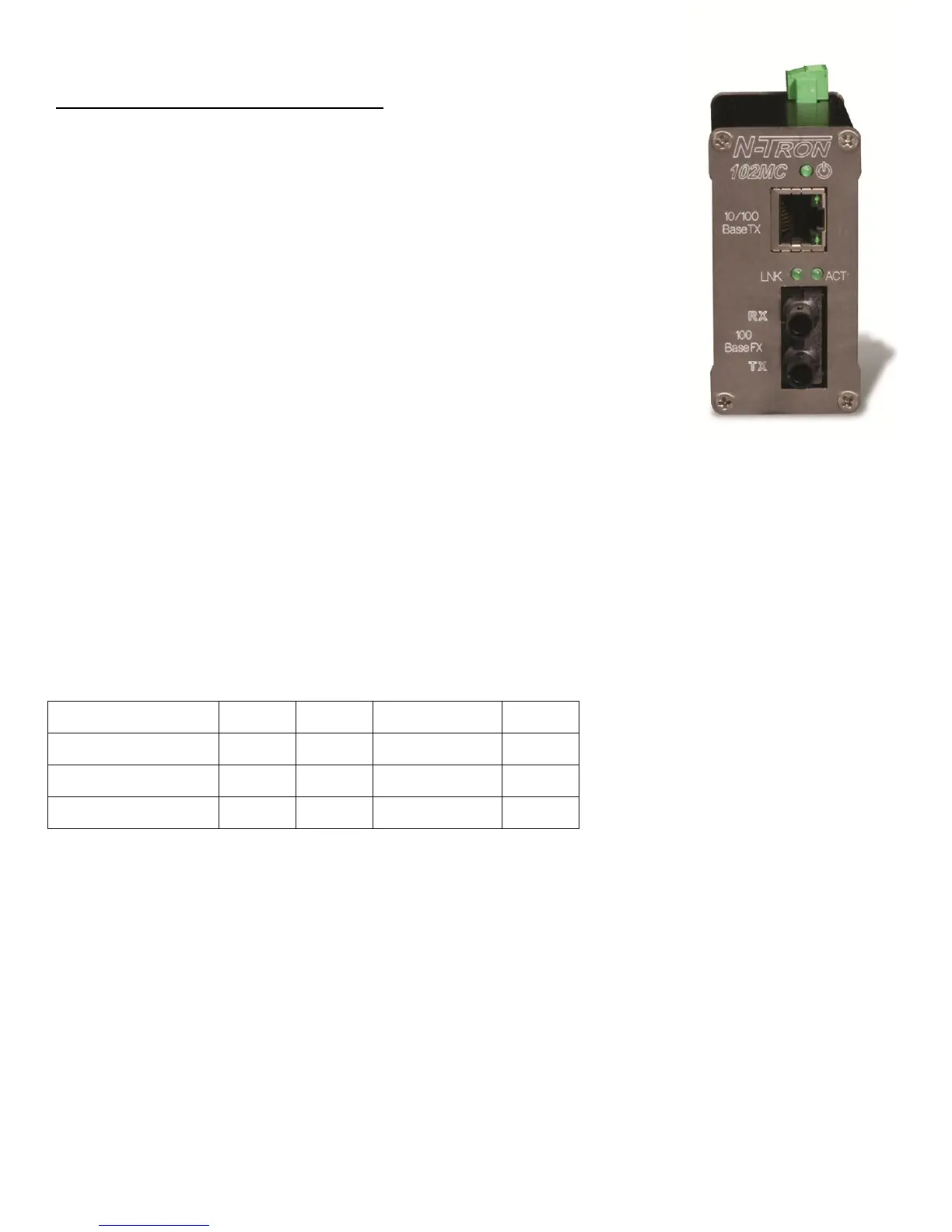

102MC/MCE - KEY SPECIFICATIONS
Physical
Height: 2.87” (7.28 cm)
Width: 1.49” (3.78 cm)
Depth: 3.53” (8.96 cm)
Weight: 0.5 lbs. (0.22 kg)
DIN Rail 35 mm
Electrical
Input Voltage: 10-30 VDC (Regulated)
Input Current: 140mA max. @ 24VDC (Steady State)
Inrush Current: 8.5 Amp/0.7 ms max. @ 24VDC
Input Ripple: Less than 100 mV
Input Wire Size: 16-28 AWG
Environmental
Operating Temperature: -40°C to 80°C
Storage Temperature: -40°C to 85°C
Operating Humidity: 10% to 95% (Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Network Media
10BaseT: > Cat-3 Cable
100BaseT: > Cat-5 Cable
100BaseFX: Multimode: 50-62.5/125µm Fiber
Singlemode: 7-10/125µm Fiber
Fiber Transceiver Characteristics
Fiber Length:
2km*
15km**
40km**
80km**
TX Power Min
-19dBm
-15dBm
-5dBm
-5dBm
RX Sensitivity Max:
-31dBm
-31dBm
-34dBm
-34dBm
Wavelength:
1310nm
1310nm
1310nm
1550nm
*=Multimode ** =Singlemode
Connectors
10/100BaseTX: RJ45 UTP Port
100BaseFX: SC or ST Duplex Port
Recommended Minimum Wiring Clearance:
Top: 1 " (2.54 cm)
Front: 4 " (10.16 cm)
