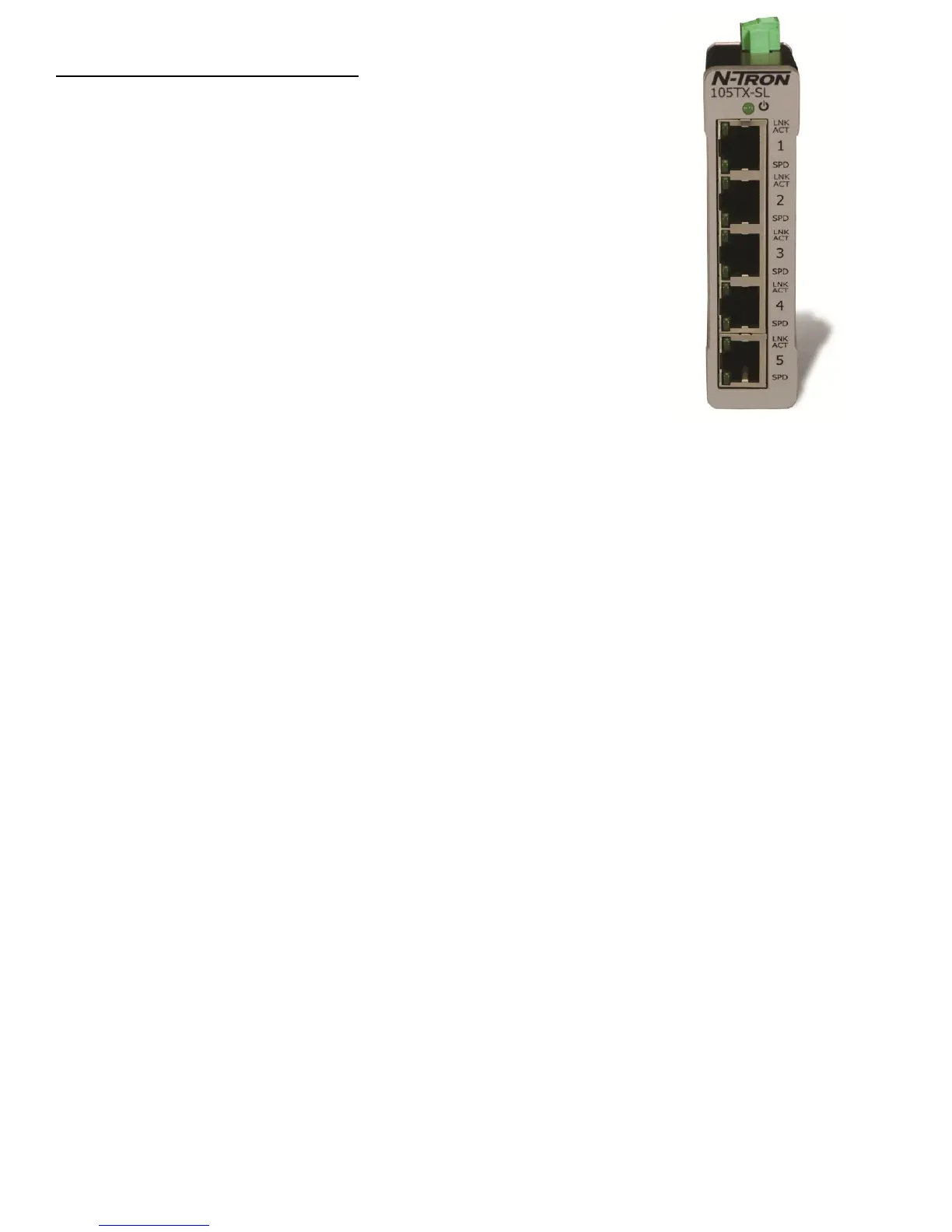

105TX-SL - KEY SPECIFICATIONS
Physical
Height: 4″ (10.2 cm)
Width: 1″ (2.6 cm)
Depth: 3.7″ (9.2 cm)
Weight: 0.7 lbs. (0.32 kg)
DIN Rail 35 mm
Electrical
Input Voltage: 10-30 VDC (Regulated)
Input Current: 215 mA max. @ 24VDC (Steady State)
Inrush Current: 3.0 Amp/1.0 ms max. @ 24VDC
Input Ripple: Less than 100 mV
Input Wire Size: 12-24 AWG
Environmental
Operating Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Operating Humidity: 10% to 95% (Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Network Media
10BaseT:
≥
Cat3 Cable
100BaseT:
≥
Cat5 Cable
Connectors
10/100BaseT: Five (5) RJ45 UTP Ports
Recommended Minimum Wiring Clearance:
Top: 1" (2.54 cm)
Front: 2" (5.08 cm)
Warranty: Effective January 1, 2008, all N-TRON products carry a 3 year warranty from the date of
purchase.
