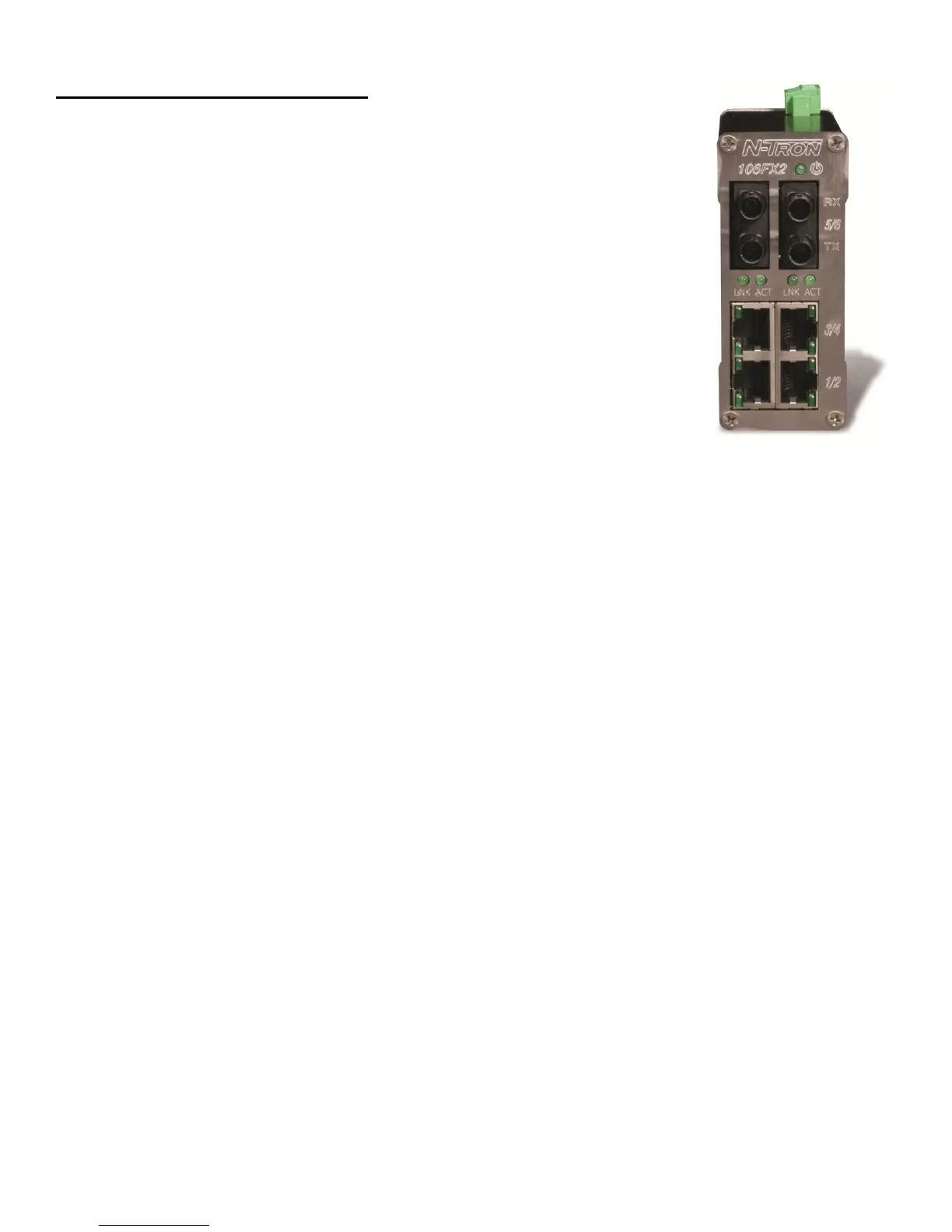

106FX/FX2 - KEY SPECIFICATIONS
Physical
Height: 3.83” (9.73 cm)
Width: 1.50” (3.81 cm)
Depth: 4.80” (12.2 cm)
Weight: 0.6 lbs. (0.27 kg)
DIN Rail 35 mm
Electrical
Input Voltage: 10-30 VDC (Regulated)
Input Current: 270 mA max. @ 24VDC (Steady State)
Inrush Current: 8.0 Amp/0.7 ms max. @ 24VDC
Environmental
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Operating Humidity: 10% to 95% (Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Network Media
10BaseT: > Cat-3 Cable
100BaseTX: > Cat-5 Cable
100BaseFX:
Multimode: 50-62.5/125µm
Singlemode: 7-10/125µm
Connectors
10/100BaseTX Four (4) RJ-45 TX Ports
100BaseFX Two (2) ST or SC Duplex Ports
Recommended Minimum Wiring Clearance:
Top: 1 " (2.54 cm)
Front: 4 " (10.16 cm)
Warranty: Effective January 1, 2008, all N-TRON products carry a 3 year warranty from the date of
purchase.
