(Revised 2011-03-14)
25

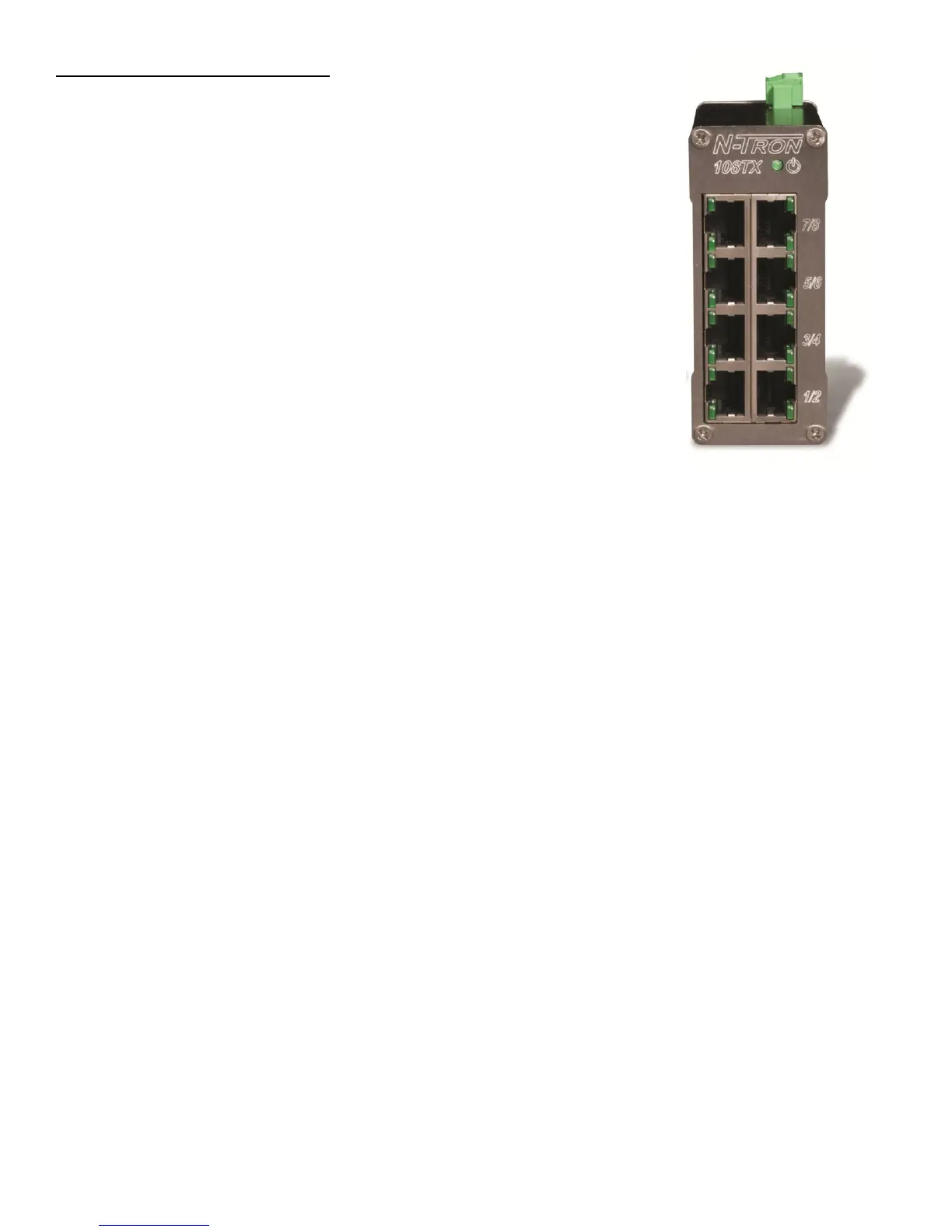

108TX - KEY SPECIFICATIONS
Physical
Height: 3.5” (8.89 cm)
Width: 1.49 (3.78 cm)
Depth: 3.53 (8.96 cm)
Weight: 0.7 lbs. (0.31 kg)
DIN Rail 35 mm
Electrical
Input Voltage: 10-30 VDC (Regulated)
-HV option: 10-60 VDC (Regulated)
Input Current: 250 mA max. @ 24VDC (Steady State)
Inrush Current: 8.1 Amp/0.7 ms max. @ 24VDC
Input Ripple: Less than 100 mV
Input Wire Size: 16-28 AWG
Environmental
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Operating Humidity: 10% to 95% (Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Network Media
10BaseT: > Cat-3 Cable
100BaseT: > Cat-5 Cable
Connectors
10/100BaseT: Eight (8) RJ45 UTP Ports
Recommended Minimum Wiring Clearance:
Top: 1 " (2.54 cm)
Front: 2 " (5.08 cm)
Warranty: Effective January 1, 2008, all N-TRON products carry a 3 year warranty from the date of
purchase.
