N-Tron 100 Series User Manual

(Revised 2011-03-14)
29

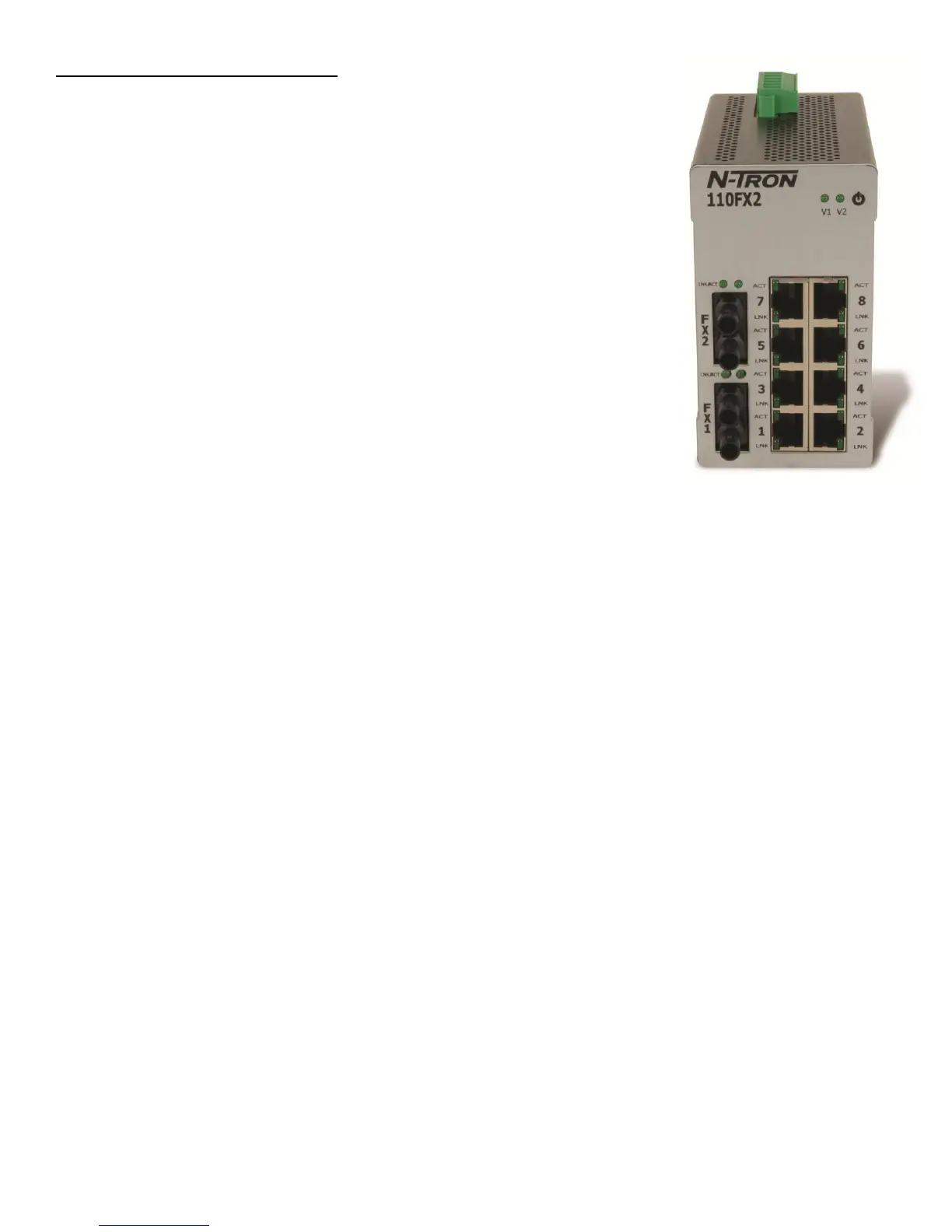

110FX2 - KEY SPECIFICATIONS
Physical
Height: 4.3” (10.8 cm)
Width: 2.4” (6.1 cm)
Depth: 4.6” (11.5 cm)
Weight: 1 lbs. 5 oz (0.60 kg)
DIN Rail 35 mm
Electrical
Input Voltage: 10-49 VDC (Regulated)
Input Current: 355 mA max. @ 24VDC (Steady State)
Environmental
Surrounding Air Temperature: -40°C to 80°C
Storage Temperature: -40°C to 85°C
Operating Humidity: 10% to 95% (Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Network Media
10BaseT: > Cat-3 Cable
100BaseTX: > Cat-5 Cable
100BaseFX:
Multimode: 50-62.5/125µm
Singlemode: 7-10/125µm
Connectors
10/100BaseTX Eight (8) RJ-45 TX Ports
100BaseFX Two (2) ST or SC Duplex Ports
Recommended Minimum Wiring Clearance:
Top: 1 " (2.54 cm)
Front: 4 " (10.16 cm)
Warranty: Effective January 1, 2008, all N-TRON products carry a 3 year warranty from the date of
purchase.
