NAD 2100 - Different Parts List; Capacitors and Resistors; Switches, Fuses, and Connectors; Wires and Miscellaneous Components

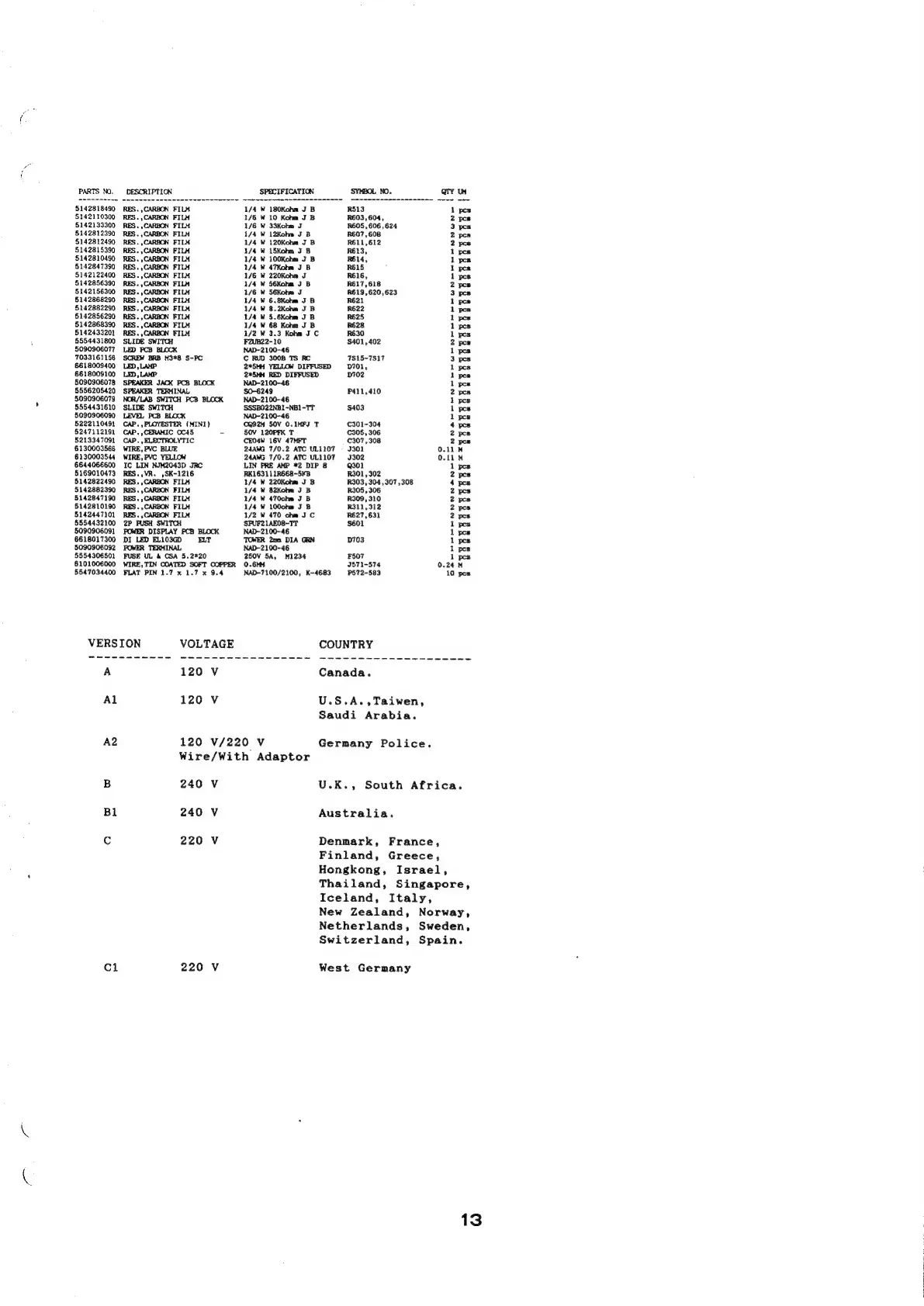

PARTS NO. DESCRIPTION SPECIFICATION SYMBOL NO. QTy UM
5142818490 RES. ,CARBON FILM 1/4 W 180Kohm J B R513 1 pes
5242110300 RES. ,CARBON FILM 1/6 W 10 Koha J B R603, 604, 2 pes
5142133300 RES. ,CARBON FILM 1/6 W 33Kohm J R605 ,606 ,624 3 pes
5142812390 RES. , CARBON FILM 1/4 W 12Koha J B R607 ,608 2 pes
$142812490 RES. ,CARBON FILM 1/4 W 120Kohm J B R611,612 2 pes
5142815390 RES. ,CARBON FILM 1/4 W 15Kohm J B R613, 1 pes
5142810490 RES. ,CARBON FILM 1/4 W 100Kohm J B R614, 1 pes
5142847390 RES. ,CARBON FILM 1/4 W 47Koba J B R615 1 pes
5142122400 RES. ,CARBON FILM 1/6 W 220Koha J R616, 1 pes
5142856390 RES. ,CARBON FILM 1/4 W 56Koha J B R617,618 2 pes
5142156300 RES. ,CARBON FILM 1/6 W 56Koha J 619,620,623 3 pes
5142868290 RES. ,CARBON FILM 1/4 W 6.8Koha J B R621 1 pes
5142882290 RES. ,CARBON FILM 1/4 W 8.2Kohm J B R622 1 pes
5142856290 RES. ,CARBON FILM 1/4 W 5.6Koha J B R625 1 pes
5142868390 RES. ,CARBON FILM 1/4 W 68 Kohm J B R628 1 pes
5142433201 RES. ,CARBON FILM 1/2 W 3.3 Koha JC R630 1 pes
§554431800 SLIDE SWITCH FZUB22-10 $401,402 2 pes
5090906077 LED PCB BLOCK NAD-2100-46 1 pes
7033161156 SCREW BRB M3*8 S-PC C RUD 300B TS RC 7815-7817 3 pes
6618009400 LED, LAMP 2*5MM YELLOW DIFFUSED D701, 1 pes
6618009100 LED, LAMP 2*5MM RED DIFFUSED D102 1 pes
5090906078 SPEAKER JACK PCB BLOCK NAD-2100-46 1 pcs
5556205420 SPEAKER TERMINAL SO-6249 411,410 2 pes
5090906079 NOR/LAB SWITCH PCB BLOCK NAD~2100-46 1 pes
5554431610 SLIDE SWITCH SSSBO22NBI-NB1-TT $403 1 pes
8090906090 LEVEL PCB BLOCK NAD-2100-46 1 pes
5222110491 CAP. ,PLOYESTER (MINI) 0Q32M 50V 0.1MFJ T €301~-304 4 pes
§247112191 CAP. ,CERAMIC OC45 - SOV 120PFK T C305 , 306 2 pes
5213347091 CAP. ,ELECTROLYTIC CEOSW 16V 47MFT €307 ,308 2 pes
6130003566 WIRE,PVC BLUE 24AWG 7/0.2 ATC UL1107 = J301 0.11 M
6130003544 WIRE,PVC YELLOW 24aWG 7/0.2 ATC UL1107 J302 0.11 M
6644066600 IC LIN NJM2043D JRC LIN PRE AMP #2 DIP 8 Q301 1 pes
5169010473 RES.,VR. ,SK-1216 RK163111R668-5KB R301,302 2 ps
§142822490 RES. ,CARBON FILM 1/4 W 220Koha J B R303, 304,307,308 4 pes
5142882390 RES. ,CARBON FILM 1/4 W 82Kotm J B R305, 306 2 ps
5142847190 RES. ,CARBON FILM 1/4 W 4700hs J B R309, 310 2 pcs
5142810190 RES. ,CARBON FILM 1/4 W 100chm J B R311,312 2 pes
5142447101 RES. ,CARBON FILM 1/2 W 470 oha JC R627,631 2 pcs
§554432100 2P PUSH SWITCH SPUF21AE08-TT $601 1 pes
5090906091 POWER DISPLAY FCB BLOCK NAD-2100-46 1 pes
6618017300 DI LED EL103GD ELT TOWER 2mm DIA GRN D703 1 pes
5090906092 POWER TERMINAL NAD-2100-46 1 pes
5554306501 FUSE UL & CSA 5.2#20 250V 5A, M1234 F507 1 pes
6101006000 WIRE, TIN COATED SOFT COPPER 0.6MM 3571-574 0.24 M
5547034400 FLAT PIN 1.7 x 1.7 x 9.4 NAD-7100/2100, K-4683 P572-583 10 pes
VERSION VOLTAGE COUNTRY
_k- MoN ~*~ aay
Al 120 Vv U.S.A.,Taiwen,
Saudi Arabia.
A2 120 V/220 V Germany Police.
Wire/With Adaptor
B 240 V U.K., South Africa.
Bl 240 V Australia.
Cc 220 V Denmark, France,
Finland, Greece,
Hongkong, Israel,
Thailand, Singapore,
Iceland, Italy,
New Zealand, Norway,
Netherlands, Sweden,
Switzerland, Spain.
Cl 220 V West Germany
13
