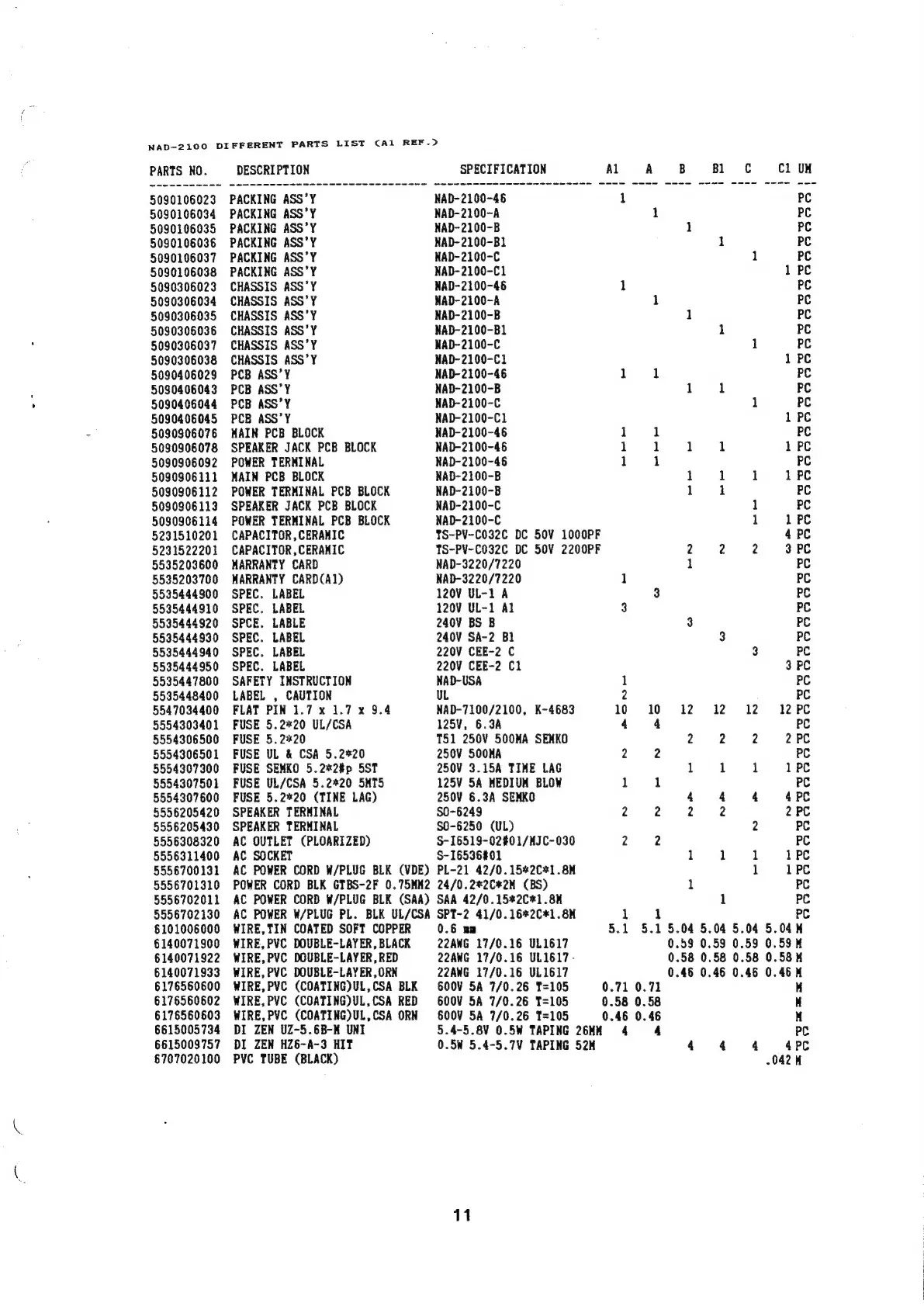

NAD-2100
DIFFERENT
PARTS
LIST
CAl
REF.)
PARTS NO. DESCRIPTION SPECIFICATION Al A B Bl ¢ Ci UM
5090106023 PACKING ASS’Y NAD-2100-46 i PC
5090106034 PACKING ASS’Y NAD-2100-A 1 PC
5090106035 PACKING ASS’Y NAD-2100-B 1 PC
5090106036 PACKING ASS’Y NAD-2100-B1 i PC
5030106037 PACKING ASS’Y NAD-2100-C 1 PC
5090106038 PACKING ASS’Y NAD-2100-C1 1 PC
5090306023 CHASSIS ASS’Y NAD-2100-46 1 PC
5090306034 CHASSIS ASS’Y NAD-2100-A 1 PC
5090306035 CHASSIS ASS’Y NAD-2100-B 1 PC
5090306036 CHASSIS ASS’Y NAD-2100-B1 1 PC
5090306037 CHASSIS ASS’Y NAD-2100-C 1 PC
5090306038 CHASSIS ASS’Y NAD-2100-C1 1 PC
5090406029 PCB ASS’Y NAD-2100-46 1 1 PC
5090406043 PCB ASS’Y NAD-2100-B 1 1 PC
5090406044 PCB ASS’Y NAD-2100-C 1 PC
5090406045 PCB ASS’Y NAD-2100-C1 1 PC
5090906076 MAIN PCB BLOCK NAD-2100-46 1 1 PC
5090906078 SPEAKER JACK PCB BLOCK NAD-2100-46 1 1 1 1 1 PC
5090906082 POWER TERMINAL NAD-2100-46 1 1 PC
5090906111 MAIN PCB BLOCK NAD-2100-B 1 1 1 1 PC
5090906112 POWER TERMINAL PCB BLOCK NAD-2100-8 1 1 PC
5090906113 SPEAKER JACK PCB BLOCK NAD-2100-C 1 PC
5090906114 POWER TERMINAL PCB BLOCK NAD-2100-C 1 1 PC
5231510201 CAPACITOR, CERAMIC TS-PV-CO032C DC 50V¥ 1000PF 4 PC
5231522201 CAPACITOR, CERAMIC TS-PV-C032C DC 50V 2200PF 2 2 2 3 PC
5535203600 MARRANTY CARD NAD-3220/7220 1 PC
5535203700 MARRANTY CARD(A1) NAD-3220/7220 1 PC
5535444900 SPEC. LABEL 120V UL-1 A 3 PC
5535444910 SPEC. LABEL 120V UL-1 Al 3 PC
5535444920 SPCE. LABLE 240V BS B 3 PC
5535444930 SPEC. LABEL 240V SA-2 Bl 3 PC
5535444940 SPEC. LABEL 220V CEE-2 C 3 PC
5535444950 SPEC. LABEL 220V CEE-2 Cl 3 PC
5535447800 SAFETY INSTRUCTION NAD-USA 1 PC
5535448400 LABEL , CAUTION UL 2 PC
5547034400 FLAT PIN 1.7 x 1.7 x 9.4 NAD-7100/2100, K-4683 10 6100 «612 )«©12)Co12ss dh PO
5554303401 FUSE 5.2*20 UL/CSA 125V, 6.3A 4 4 PC
5554306500 FUSE 5.2%*20 T51 250V 500MA SEMKO 2 2 2 2 PC
5554306501 FUSE UL & CSA 5.2*20 250V SOOKA 2 2 PC
5554307300 FUSE SEMKO 5.2*2#p SST 250V 3.15A TIME LAG 1 1 1 1 PC
5554307501 FUSE UL/CSA 5.2*20 5SMT5 125V 5A MEDIUM BLOW 1 1 PC
5554307600 FUSE 5.220 (TINE LAG) 2500 6.3A SEMKO 4 4 4 4 PC
5556205420 SPEAKER TERMINAL S0-6249 2 2 2 2 2 PC
5556205430 SPEAKER TERMINAL S0-6250 (UL) 2 PC
5556308320 AC OUTLET (PLOARIZED) S-16519-02#01/HJC-030 2 2 PC
5556311400 AC SOCKET S-16536#01 1 1 1 1PC
5556700131 AC POWER CORD W/PLUG BLK (VDE) PL-21 42/0.15*2C*1.8M 1 1PC
5556701310 POWER CORD BLK GTBS-2F 0.75MM2 24/0.2*2C*2M (BS) 1 PC
5556702011 AC POWER CORD W/PLUG BLK (SAA) SAA 42/0.15%2C%1.8x 1 PC
5556702130 AC POWER W/PLUG PL. BLK UL/CSA SPT-2 41/0.16*2C¥1.8M 1 1 PC
6101006000 WIRE,TIN COATED SOFT COPPER 0.6 um 5.1 5.1 5.04 5.04 5.04 5.04 M
6140071900 WIRE,PVC DOUBLE-LAYER, BLACK 22AWG 17/0.16 UL1617 0.59 0.59 0.59 0.59 M
6140071922 WIRE,PVC DOUBLE-LAYER,RED 22AWG 17/0.16 UL1617- 0.58 0.58 0.58 0.58
6140071833 WIRE,PVC DOUBLE-LAYER,ORN 22AWG 17/0.16 UL1617 0.46 0.46 0.46 0.46 M
6176560600 WIRE,PVC (COATING)UL,CSA BLK 600V 5A 7/0.26 T=105 0.71 0.71 K
6176560602 WIRE,PVC (COATING)UL,CSA RED 600V 5A 7/0.26 T=105 0.58 0.58 |
6176560603 WIRE,PVC (COATING)UL,CSA ORN 600V 5A 7/0.26 T=105 0.46 0.46 M
6615005734 DI ZEN UZ-5.6B-M UNI 5.4-5.8V 0.5W TAPING 26MM 4 4 PC
6615009757 DI ZEN HZ6-A~3 HIT 0.5W 5.4-5.7V TAPING 52M 4 4 4 4 PC
6707020100 PVC TUBE (BLACK) .042 4
11
