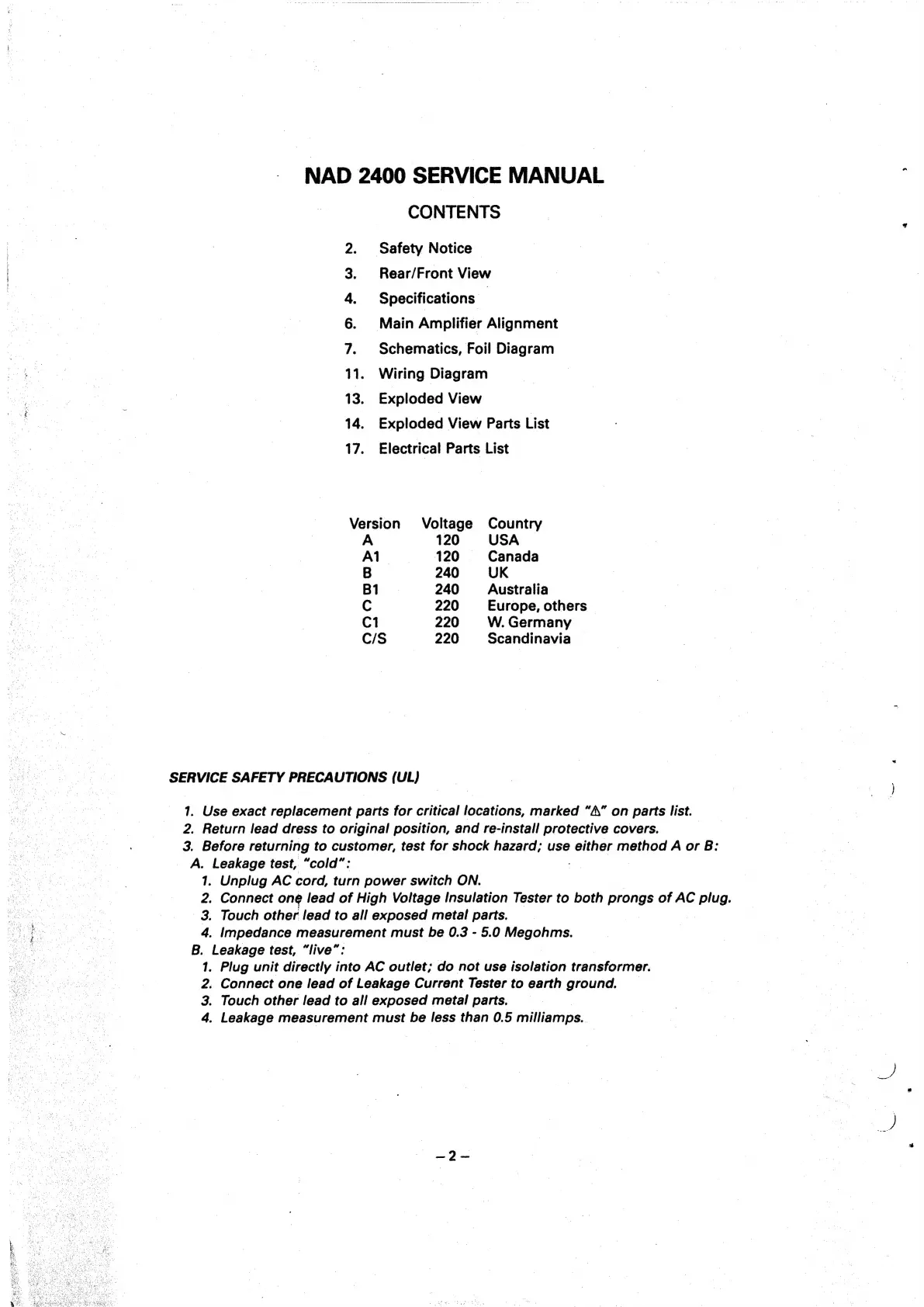

NAD 2400 SERVICE MANUAL
CONTENTS
Safety Notice |
Rear/Front View
Specifications |
Main Amplifier Alignment
Schematics, Foil Diagram
oi Se ON
a)
°
Wiring Diagram
13. Exploded View
14. Exploded View Parts List
17. Electrical Parts List
Version Voltage Country
A 120 USA
Al 120 Canada
B 240 UK
B1 240 Australia
C 220 Europe, others
C1 220 W.Germany
C/S 220 Scandinavia
SERVICE SAFETY PRECAUTIONS (UL)
1 Use exact replacement parts for critical locations, marked “A” on parts list.
2. Return lead dress to original position, and re-install protective covers.
3. Before returning to customer, test for shock hazard; use either method A or B:
_ A. Leakage test, “cold”:
1. Unplug AC cord, turn power switch ON.
2. Connect on@ lead of High Voltage Insulation Tester to both prongs of AC Ai
3. Touch other lead to all exposed metal parts.
4, Impedance measurement must be 0.3 - 5.0 Megohms.
B. Leakage test, “live”:
1. Plug unit directly into AC outlet; do not use isolation transformer.
2. Connect one lead of Leakage Current Tester to earth ground. _
3. Touch other lead to all exposed metal parts.
4. Leakage measurement must be less than 0.5 milliamps.
