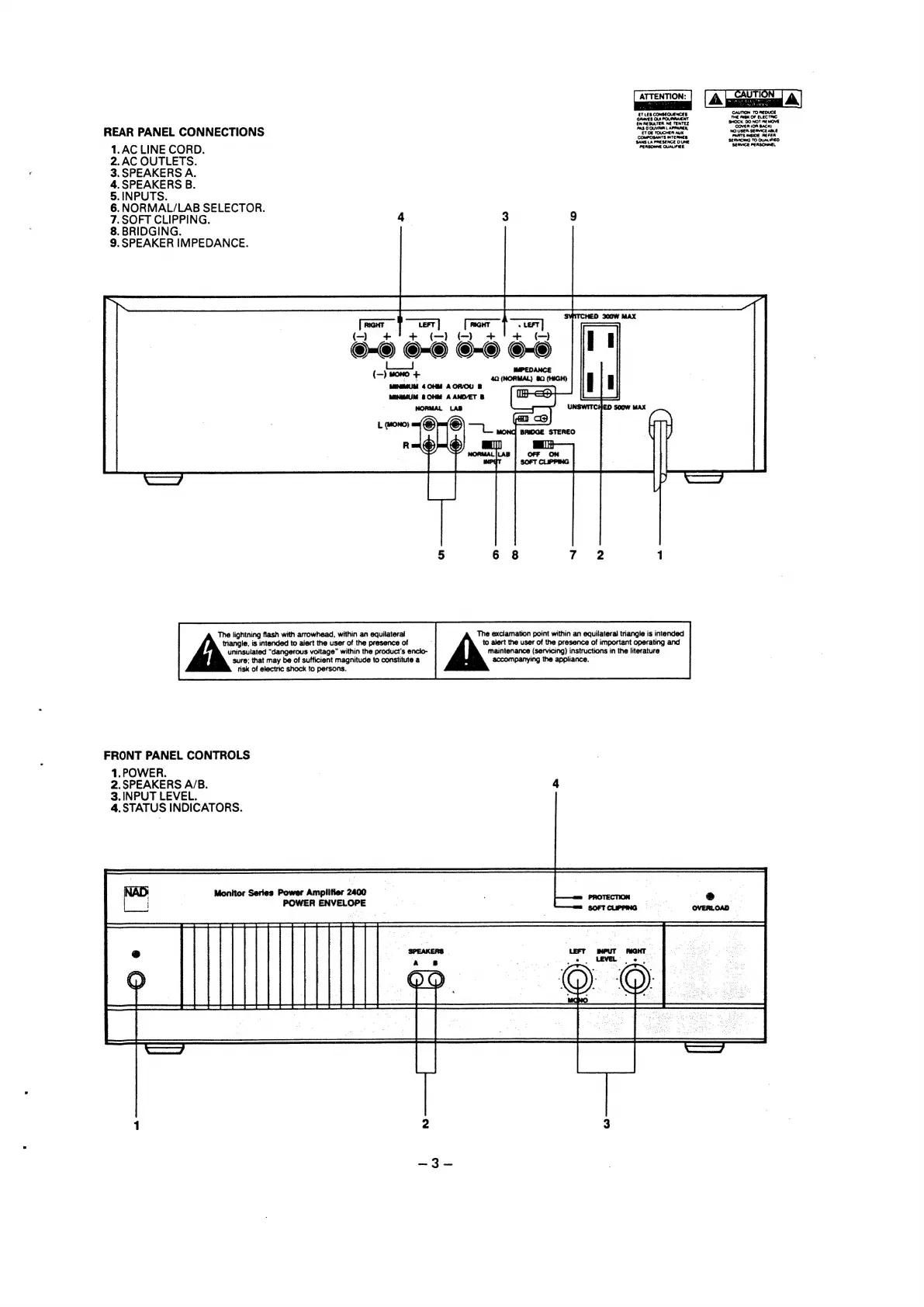

REAR PANEL CONNECTIONS “tron tomrenan numa snvctamt
1. AC LINE CORD.
2.AC OUTLETS.
3. SPEAKERS A.
4. SPEAKERS B.
5. INPUTS.
6. NORMAL/LAB SELECTOR.
7. SOFT CLIPPING. 4 3 9
8. BRIDGING.
9. SPEAKER IMPEDANCE.
al,
s-6 4 ©-© ©-© o-
(—) an MONO + es esau peter
sure; that may be of sufficient magnitude to constitute a accompanying the appliance.
The lightning flash with arrowhead, within an equilateral The exclamation point within an equilateral triangle is intended
triangle, is intended to alert the user of the presence of : to alert the user of the presence of important operating and
uninsulated “dangerous voltage” within the product's encio- maintenance (servicing) instructions in the literature
risk of electric shock to persons.
FRONT PANEL CONTROLS
1, POWER.
2.SPEAKERS A/B. 4
3.INPUT LEVEL.
4. STATUS INDICATORS.
Monitor Series Power Amplifier z 2400
POWER ENVELOPE
GD
