NAD 2400 - NAD 2400 Schematic Diagram Analysis; Amplifier Circuit Schematic Details; NAD 2400 Printed Circuit Board Layouts; PCB Layouts for Amplifier Assemblies

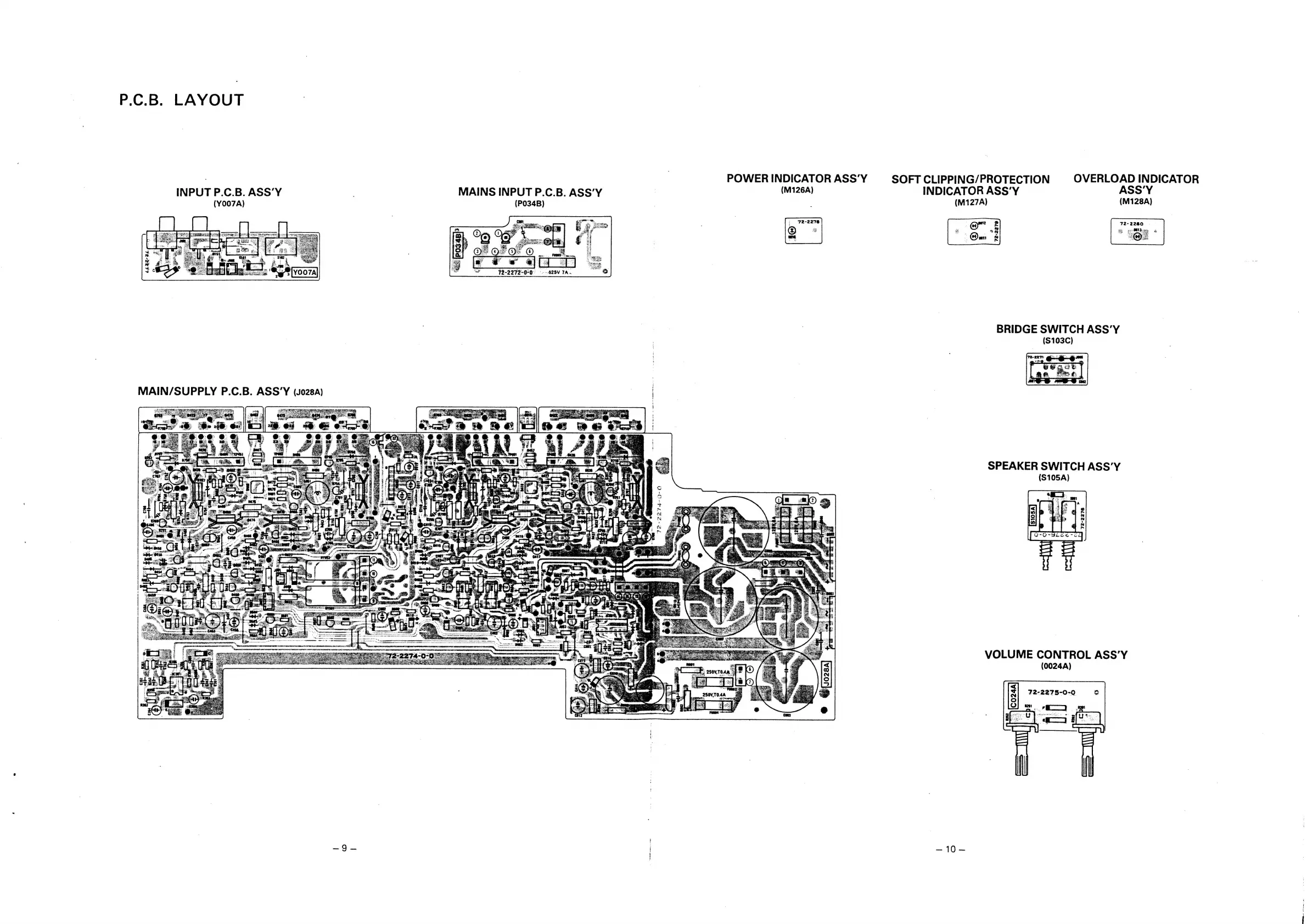

P.C.B. LAYOUT
INPUT P.C.B. ASS’Y
(Y007A)
MAIN/SUPPLY P.C.B. ASS’Y (028A)
MAINS INPUT P.C.B. ASS’Y
(P034B)
12-2272-0-0"
* -425V TA.
POWER INDICATOR ASS'Y
(M126A)
SOFT CLIPPING/PROTECTION OVERLOAD INDICATOR
INDICATOR ASS’Y ASS’'Y
(M127A) (M128A)
BRIDGE SWITCH ASS’Y
(S103C)
SPEAKER SWITCH ASS’Y
(S105A)
VOLUME CONTROL ASS’Y
(0024A)
72-22758-0-0
