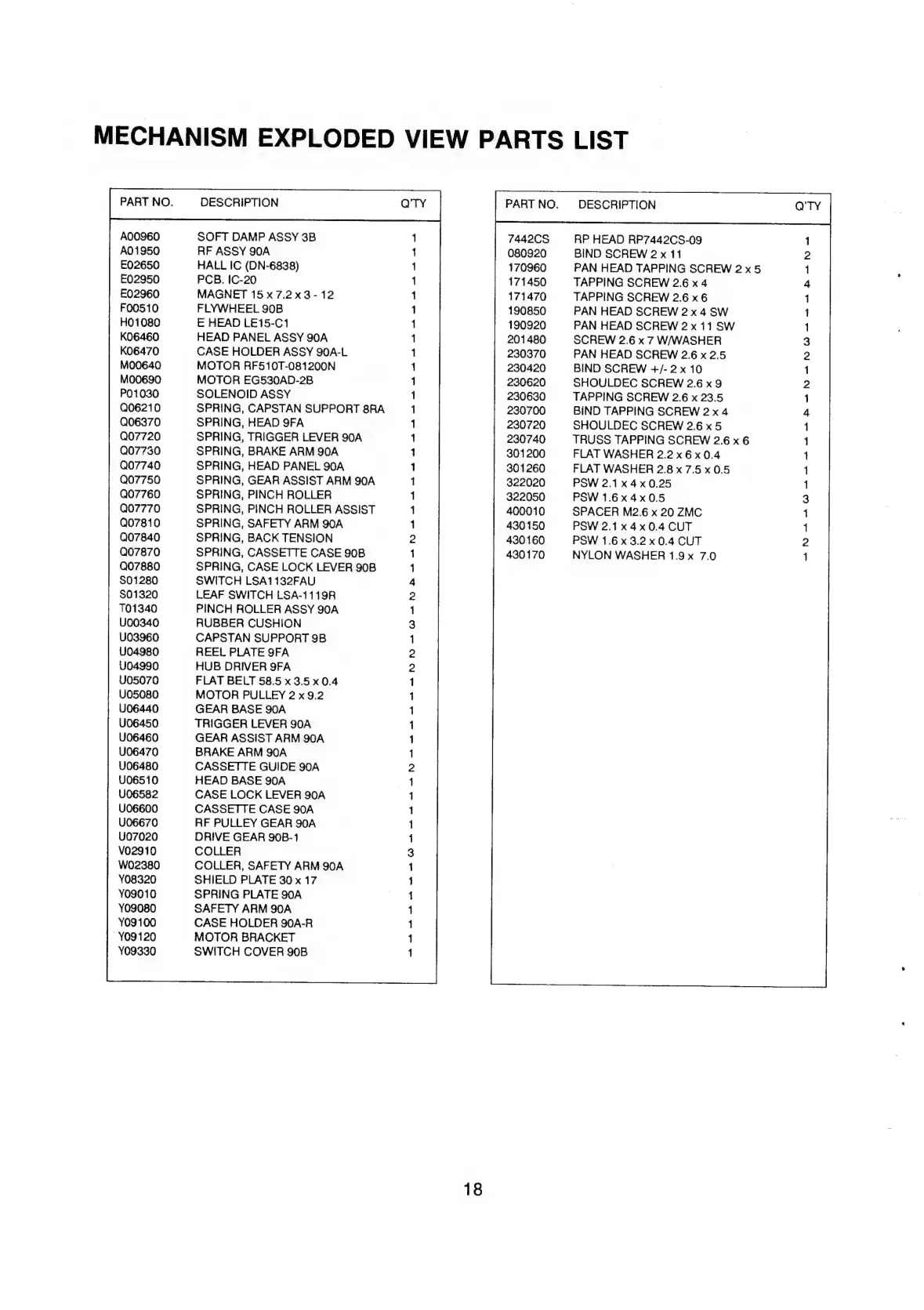

NAD 602 - Mechanism Exploded View Parts List

MECHANISM
EXPLODED
VIEW
PARTS
LIST
PART NO.
A0O0960
A01950
E02650
E02950
£02960
FO0510
H01080
K06460
K06470
M00640
Mo0690
PO1030
Q06210
Q06370
Q07720
Q07730
Q07740
Q07750
Q07760
Q07770
Q07810
Q07840
Q07870
Q07880
$01280
$01320
7101340
U00340
U03960
U04980
U04990
U05070
U05080
U06440
U06450
U06460
U06470
U06480
U06510
U06582
U06600
U06670
U07020
V02910
W02380
Y08320
Y09010
Y09080
Y09100
~-Y09120
Y09330
DESCRIPTION
SOFT DAMP ASSY 3B
RF ASSY 90A
HALL IC (DN-6838)
PCB. IC-20
MAGNET 15x 7.2x3-12
FLYWHEEL 90B
E HEAD LE15-C1
HEAD PANEL ASSY 90A
CASE HOLDER ASSY 90A-L
MOTOR RF510T-081200N
MOTOR EG530AD-2B
SOLENOID ASSY
SPRING, CAPSTAN SUPPORT 8RA
SPRING, HEAD 9FA
SPRING, TRIGGER LEVER 90A
SPRING, BRAKE ARM 90A
SPRING, HEAD PANEL 90A
SPRING, GEAR ASSIST ARM 90A
SPRING, PINCH ROLLER
SPRING, PINCH ROLLER ASSIST
SPRING, SAFETY ARM 90A
SPRING, BACK TENSION
SPRING, CASSETTE CASE 90B
SPRING, CASE LOCK LEVER 90B
SWITCH LSA1132FAU
LEAF SWITCH LSA-1119R
PINCH ROLLER ASSY 90A
RUBBER CUSHION
CAPSTAN SUPPORT 9B
REEL PLATE 9FA
HUB DRIVER 9FA
FLAT BELT 58.5 x 3.5x 0.4
MOTOR PULLEY 2 x 9.2
GEAR BASE 90A
TRIGGER LEVER 90A
GEAR ASSIST ARM 90A
BRAKE ARM 90A
CASSETTE GUIDE 90A
HEAD BASE 90A
CASE LOCK LEVER 90A
CASSETTE CASE 90A
RF PULLEY GEAR 90A
DRIVE GEAR 90B-1
COLLER
COLLER, SAFETY ARM 90A
SHIELD PLATE 30 x 17
SPRING PLATE 90A
SAFETY ARM 90A
CASE HOLDER 90A-R
MOTOR BRACKET
SWITCH COVER 90B
1
1
1
1
1
,
1
1
1
1
1
1
1
1
1
1
1
{
1
1
1
2
1
1
4
2
1
3
1
2
2
1
1
1
1
1
1
2
_
1
1
1
1
3
1
1
1
1
1
1
1
18
PART NO.
7442CS
080920
170960
171450
171470
190850
190920
201480
230370
230420
230620
230630
230700
230720
230740
301200
301260
322020
322050
400010
430150
430160
430170
DESCRIPTION
RP HEAD RP7442CS-09
BIND SCREW 2 x 11
PAN HEAD TAPPING SCREW 2x5
TAPPING SCREW 2.6 x 4
TAPPING SCREW 2.6 x 6
PAN HEAD SCREW 2x 4 SW
PAN HEAD SCREW 2 x 11 SW
SCREW 2.6 x 7 W/WASHER
PAN HEAD SCREW 2.6 x 2.5
BIND SCREW +/- 2 x 10
SHOULDEC SCREW 2.6 x 9
TAPPING SCREW 2.6 x 23.5
BIND TAPPING SCREW 2x 4
SHOULDEC SCREW 2.6 x 5
TRUSS TAPPING SCREW 2.6 x 6
FLAT WASHER 2.2 x6x 0.4
FLAT WASHER 2.8 x 7.5 x 0.5
PSW 2.1x 4x 0.25
PSW 1.6x4x0.5
SPACER M2.6 x 20 ZMC
PSW 2.1 x 4x 0.4 CUT
PSW 1.6 x 3.2 x 0.4 CUT
NYLON WASHER 1.9 x 7.0
