NAD 705 - Exploded View Parts List

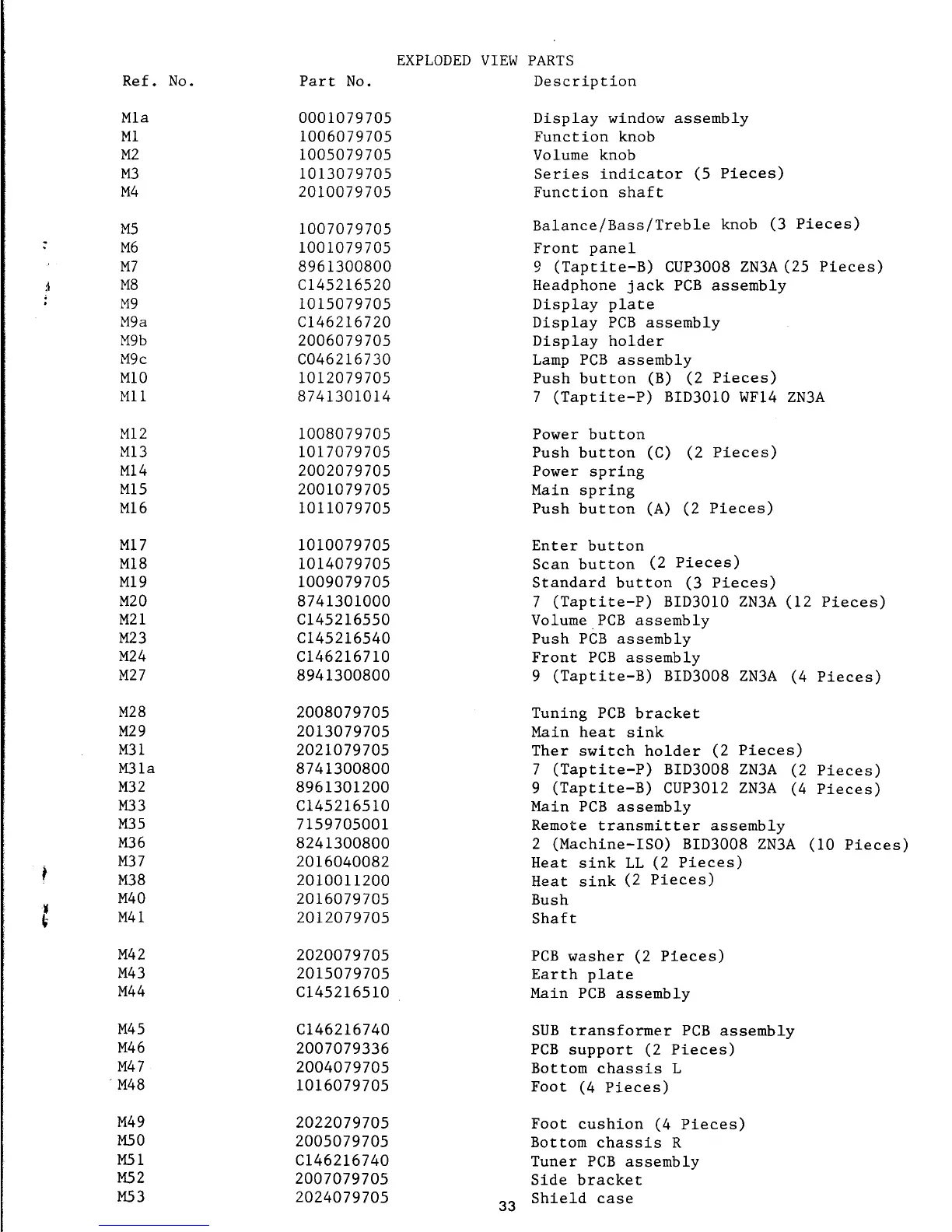

EXPLODED VIEW PARTS
Ref . No . Part No . Description
Mla 0001079705 Displaywindow assembly
Ml 1006079705 Function knob
M2 1005079705 Volume knob
M3 1013079705 Series indicator (5 Pieces)
M4
2010079705 Function shaft
M5 1007079705
Balance/Bass/Treble knob (3
Pieces)
M6
1001079705 Front panel
M7 8961300800 9 (Taptite-B) CUP3008 ZN3A (25 Pieces)
M8 C145216520
Headphone jack PCB assembly
M9 1015079705 Display plate
M9a C146216720 Display PCB
assembly
M9b 2006079705 Display holder
M9c C046216730 Lamp PCB assembly
M10 1012079705 Pushbutton (B) (2 Pieces)
M11 8741301014 7 (Taptite-P)
BID3010WF14
ZN3A
M12 1008079705 Power button
M13 1017079705 Push button (C) (2 Pieces)
M14 2002079705 Powerspring
M15 2001079705 Main spring
M16 1011079705 Push button (A) (2 Pieces)
M17 1010079705 Enter button
M18 1014079705 Scan button
(2 Pieces)
M19 1009079705 Standard button (3 Pieces)
M20 8741301000 7 (Taptite-P) BID3010 ZN3A (12 Pieces)
M21 C145216550 Volume PCB assembly
M23 C145216540 Push PCB assembly
M24
C146216710 Front PCB assembly
M27
8941300800 9 (Taptite-B) BID3008 ZN3A (4 Pieces)
M28
2008079705 Tuning PCB bracket
M29
2013079705 Main heat sink
M31
2021079705 Ther switchholder (2 Pieces)
M31a
8741300800 7 (Taptite-P) BID3008 ZN3A (2 Pieces)
M32
8961301200 9 (Taptite-B) CUP3012 ZN3A (4 Pieces)
M33
C145216510 Main PCB assembly
M35 7159705001
Remote transmitter assembly
M36
8241300800 2 (Machine-ISO) BID3008 ZN3A (10 Pieces)
M37 2016040082
Heat sink LL (2 Pieces)
M38 2010011200
Heat sink
(2 Pieces)
M40 2016079705
Bush
M41
2012079705
Shaft
M42 2020079705
PCB washer (2 Pieces)
M43 2015079705
Earthplate
M44 C145216510
Main PCB assembly
M45 C146216740 SUB
transformer PCB assembly
M46 2007079336
PCB support (2 Pieces)
M47
2004079705 Bottom chassis L
M48 1016079705
Foot (4 Pieces)
M49 2022079705
Foot cushion (4 Pieces)
M50
2005079705
Bottom chassis R
M51 C146216740
Tuner PCB assembly
M52
2007079705 Side
bracket
M53 2024079705
33
Shield
case
