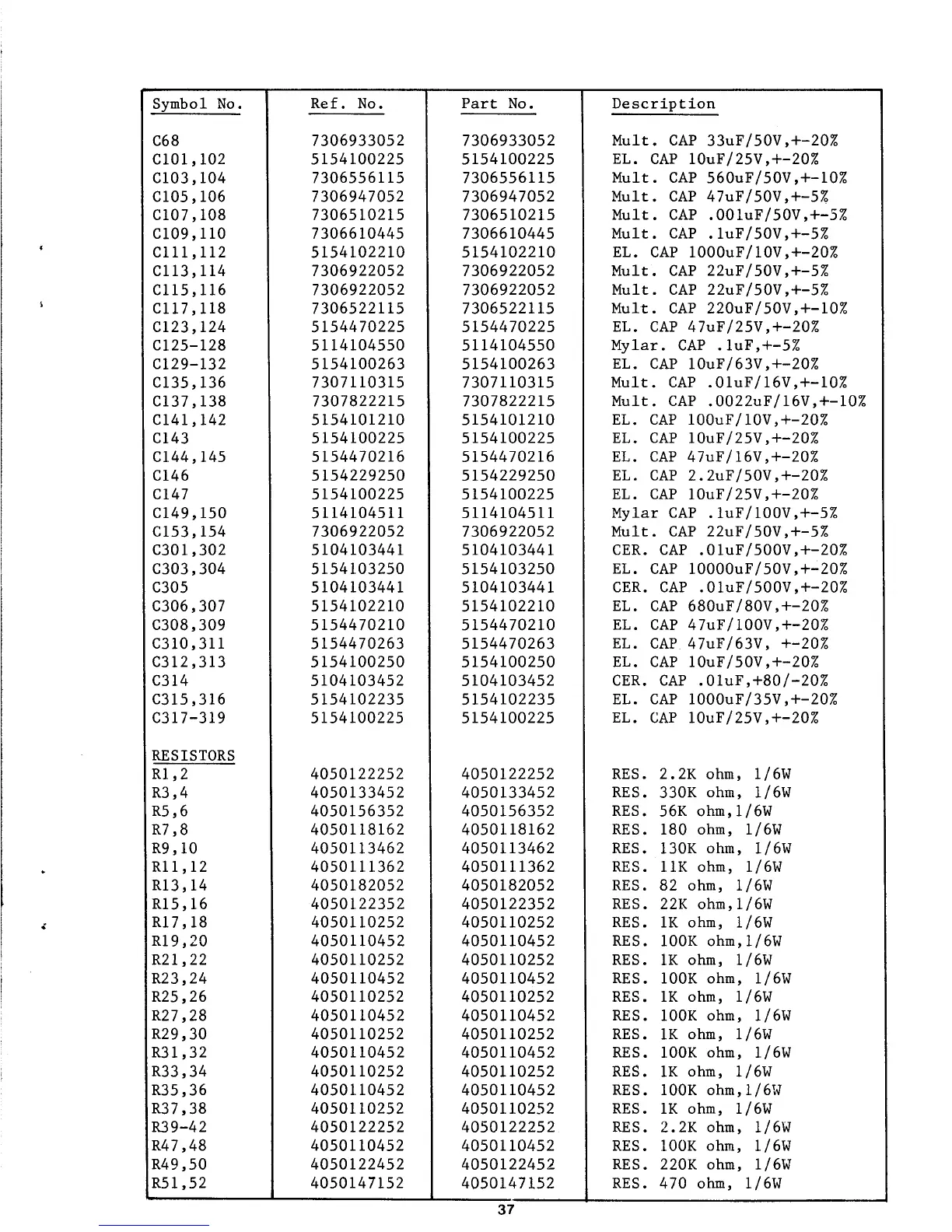

NAD 705 - Page 36

37
Symbol No . Ref . No . Part No . Description
C68 7306933052 7306933052 Mult . CAP 33uF/50V,+-20%
C101,102 5154100225 5154100225
EL .
CAP lOuF/25V,+-20%
C103,104 7306556115 7306556115 Mult . CAP 560uF/50V,+-10%
C105,106 7306947052 7306947052 Mult . CAP 47uF/50V,+-5%
C107,108 7306510215 7306510215
Mult . CAP
.OOluF/50V,+-5 %
C109,110 7306610445 7306610445 Mult .
CAP
.luF/50V,+-5 %
C111,112 5154102210 5154102210
EL .
CAP 1000uF/IOV,+-20%
C113,114 7306922052 7306922052
Mult . CAP 22uF/50V,+-5%
C115,116 7306922052 7306922052 Mult . CAP 22uF/50V,+-5%
C117,118 7306522115 7306522115 Mult . CAP 220uF/50V,+-10%
C123,124 5154470225 5154470225
EL . CAP 47uF/25V,+-20%
C125-128
5114104550 5114104550 Mylar . CAP .luF,+-5%
C129-132
5154100263 5154100263 EL . CAP lOuF/63V,+-20%
C135,136 7307110315 7307110315 Mult . CAP .OluF/16V,+-10 %
C137,138
7307822215 7307822215 Mult . CAP .0022uF/16V,+-10 %
C141,142 5154101210 5154101210 EL . CAP 100uF/IOV,+-20%
C143 5154100225 5154100225 EL . CAP lOuF/25V,+-20%
C144,145 5154470216 5154470216 EL . CAP 47uF/16V,+-20%
C146 5154229250 5154229250 EL . CAP 2 .2uF/50V,+-20%
C147 5154100225 5154100225 EL . CAP lOuF/25V,+-20%
C149,150 5114104511 5114104511 Mylar CAP .luF/100V,+-5%
C153,154 7306922052 7306922052 Mult . CAP 22uF/50V,+-5%
C301,302 5104103441 5104103441 CER . CAP .OluF/500V,+-20 %
C303,304 5154103250 5154103250 EL . CAP 10000uF/50V,+-20%
C305 5104103441 5104103441 CER
.
CAP .OluF/500V,+-20 %
C306,307 5154102210 5154102210 EL . CAP 680uF/80V,+-20%
C308,309 5154470210 5154470210 EL . CAP 47uF/100V,+-20%
C310,311 5154470263 5154470263 EL . CAP 47uF/63V, +-20%
C312,313 5154100250 5154100250 EL
.
CAP lOuF/50V,+-20%
C314 5104103452 5104103452 CER
.
CAP .0luF,+80/-20%
C315,316 5154102235 5154102235 EL . CAP 1000uF/35V,+-20%
C317-319 5154100225 5154100225
EL .
CAP lOuF/25V,+-20%
RESISTORS
R1,2 4050122252 4050122252 RES . 2 .2K ohm, 1/6W
R3,4 4050133452 4050133452
RES
. 330K
ohm,
1/6W
R5,6 4050156352 4050156352
RES .
56Kohm,1/6W
R7,8 4050118162
4050118162 RES . 180 ohm, 1/6W
R9,10 4050113462 4050113462
RES .
130K
ohm,
1/6W
R11,12 4050111362 4050111362 RES . 11K ohm, 1/6W
R13,14 4050182052 4050182052 RES . 82 ohm, 1/6W
R15,16 4050122352 4050122352 RES . 22K ohm,1/6W
R17,18 4050110252 4050110252 RES . 1K ohm, 1/6W
R19,20 4050110452 4050110452 RES . 100K ohm,1/6W
R21,22 4050110252 4050110252 RES . 1K ohm, 1/6W
R23,24 4050110452 4050110452 RES . 100K ohm, 1/6W
R25,26 4050110252 4050110252 RES . 1K ohm, 1/6W
R27,28 4050110452 4050110452 RES . 100K ohm, 1/6W
R29,30 4050110252 4050110252 RES . 1K ohm, 1/6W
R31,32 4050110452 4050110452 RES . 100K ohm, 1/6W
R33,34 4050110252 4050110252 RES . 1K ohm, 1/6W
R35,36 4050110452 4050110452 RES . 100K ohm,1/6W
R37,38 4050110252 4050110252 RES . 1K ohm, 1/6W
R39-42 4050122252 4050122252 RES . 2 .2K ohm, 1/6W
R47,48 4050110452 4050110452 RES . 100K ohm, 1/6W
R49,50 4050122452 4050122452 RES . 220K ohm, 1/6W
R51,52 4050147152 4050147152 RES . 470 ohm, 1/6W
