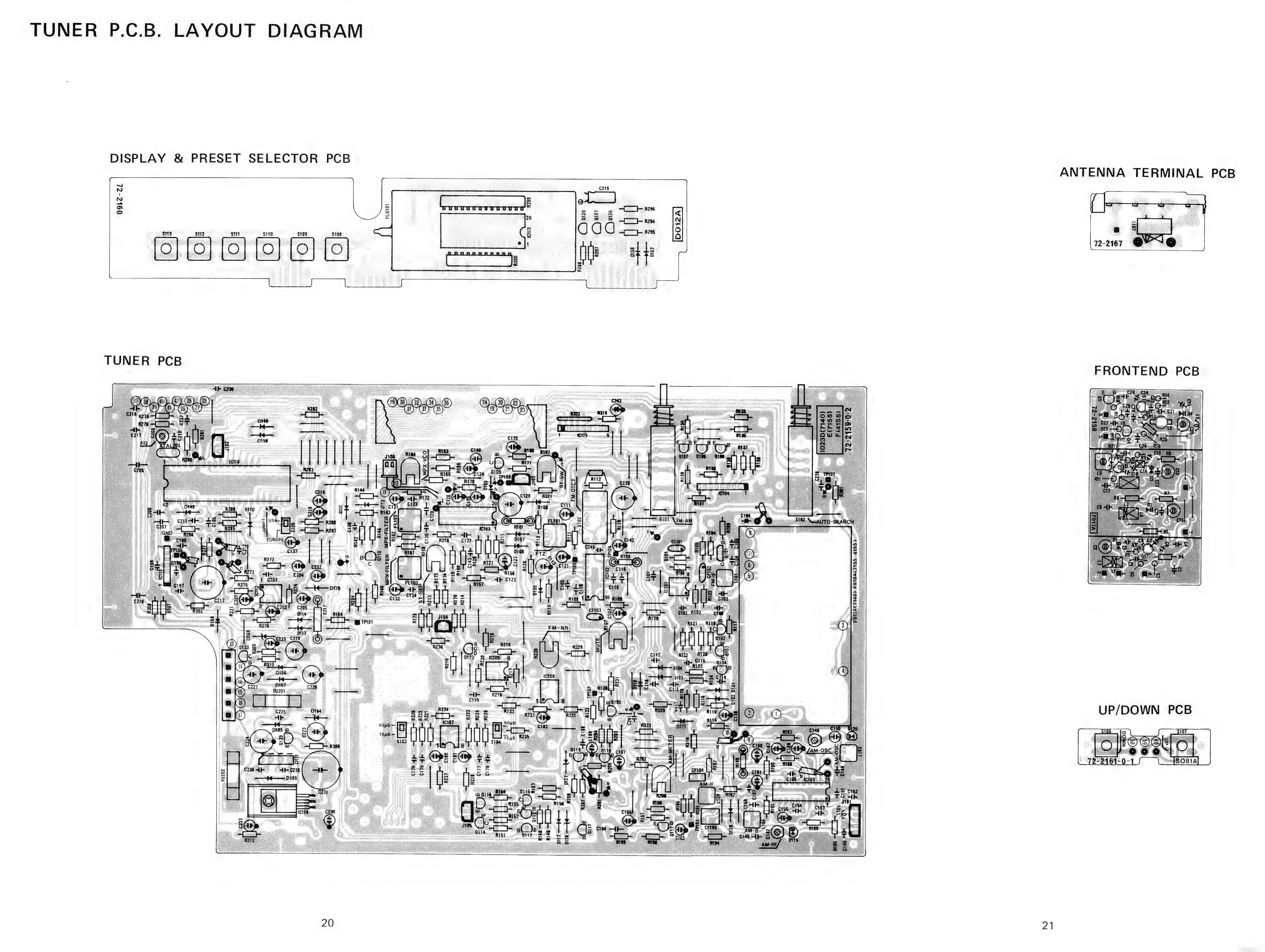

TUNER
P.C.B.
LAYOUT
DIAGRAM
DISPLAY
&
PRESET
SELECTOR
PCB
ANTENNA
TERMINAL
PCB
sounds
72-2160
FRONTEND
PCB
TUNER
PCB
UP/DOWN
PCB
