NAIM FLATCAP 2 - NAC 202 Connection to Hi-cap and NAPSC; NAC 112 Connected to Flatcap 2

8
mains input
to stereo power amplifiers
to mono or dual mono
power amplifiers
NAC 202
Hi-cap

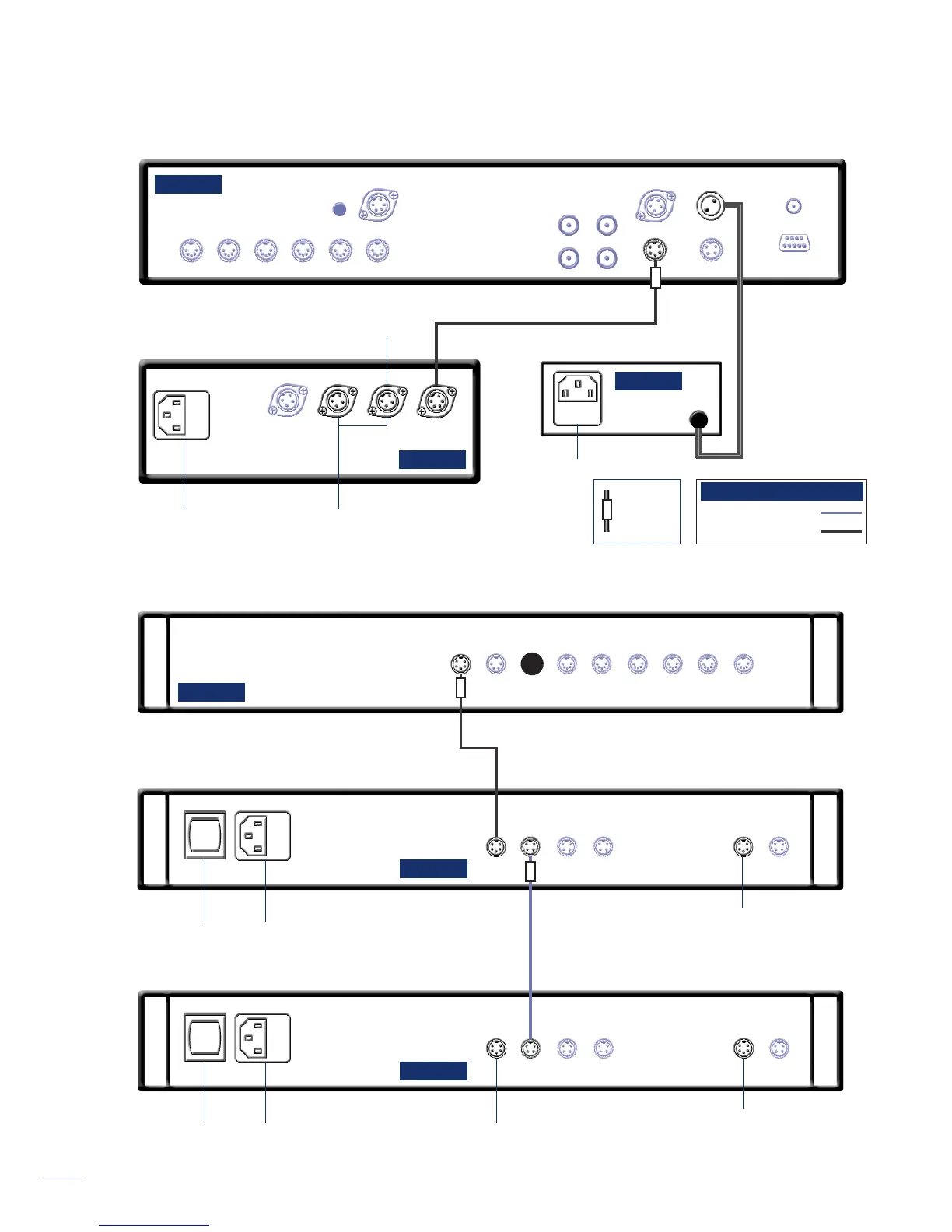

NAC 202 connection to Hi-cap and NAPSC
cable
direction
marker
4 to 4 pin DIN
240° 5 to 5 pin DIN
Interconnect Cables
to SNAXO or IXO5
NAC 112 connected to Flatcap 2
power
mains input
for CD5, Headline or
Stageline (additional)
interconnects required
for CD5, Headline or
Stageline (additional)
interconnects required
power
mains input
or with extra Flatcap 2 for SNAXO or IXO5
Flatcap 2
Flatcap 2
NAC 112
mains input
NAPSC
