NAIM N-VI - Speaker Outputs; Control Outputs; Rear Panel and Connections

E5
n-Vi

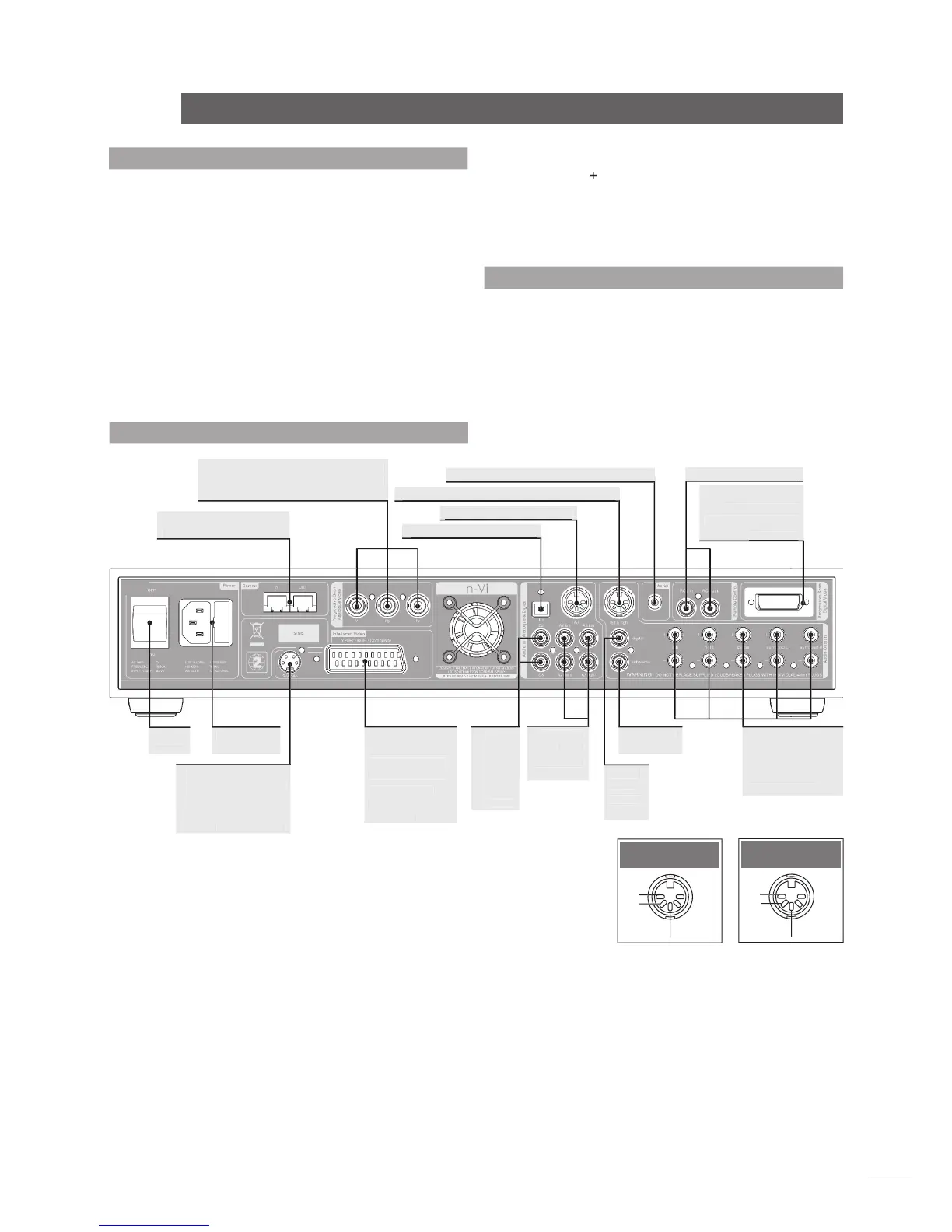

5.7 Rear Panel and Connections
Optional multi-room
comms input and output
comms input and output
comms input and output
Mains input
and fuse
Power
switch
S-Video output. Use
only if higher quality
alternatives not
supported by display.
See Table 5.3
SCART Video
output. Use only
if higher quality
alternatives not
supported by
display. See
Table 5.3
RGB and YPbPr Video outputs. Use
only if higher quality alternatives not
supported by display. See Table 5.3
supported by display. See Table 5.3
Analogue audio input one
Analogue audio input one
Digital audio optical input
Digital audio optical input
Analogue audio output. Front left and right
Analogue audio output. Front left and right
Optional DAB and FM Radio aerial input
RC5 input and output
RC5 input and output
DVI Video output.
Use for highest
quality if supported
by display.
by display.
Digital
audio
coaxial
inputs
two and
three
Analogue
audio
inputs two
and three
Digital
audio
coaxial
output
Subwoofer
output
Left front, right
front, centre, left
surround and
right surround
speaker outputs
negative
DIN Audio Input
ch1
(left)
ch2
ch2
ch2
(right)
negative
DIN Audio Output
ch1
(left)
ch2
ch2
ch2
(right)
Connections
5.5 Speaker Outputs
The n-Vi provides five speaker output sockets each rated at
90 watts into 4Ω. The five speaker outputs are intended to
be connected to the front left, front right, centre, surround
left and surround right speakers. In order to comply with
European safety legislation speakers should be connected
using the supplied Naim Audio n-Vi speaker plugs only. Naim
Audio speaker cable is recommended although alternatives are
possible. Your local retailer or distributor will be able to offer
advice.
When connecting speakers ensure that each positive pin -
identified by a “
+
” mark on the side of the connector body - is
always inserted to the positive output sockets. Also ensure that
the connections at the speaker are connected with the same
polarity. For details of the speaker output sockets see Diagram
5.7.
5.6 Control Outputs
The n-Vi provides control outputs that enable it to be integrated
with remote handset signal (RC5) repeaters and optionally
with multi-room equipment control systems. The RC5 output is
connected via a single RCA-phono socket and the optional multi-
room control output is connected via an RJ45 socket. For more
detail on connection to the control input sockets see Diagram
5.7.
