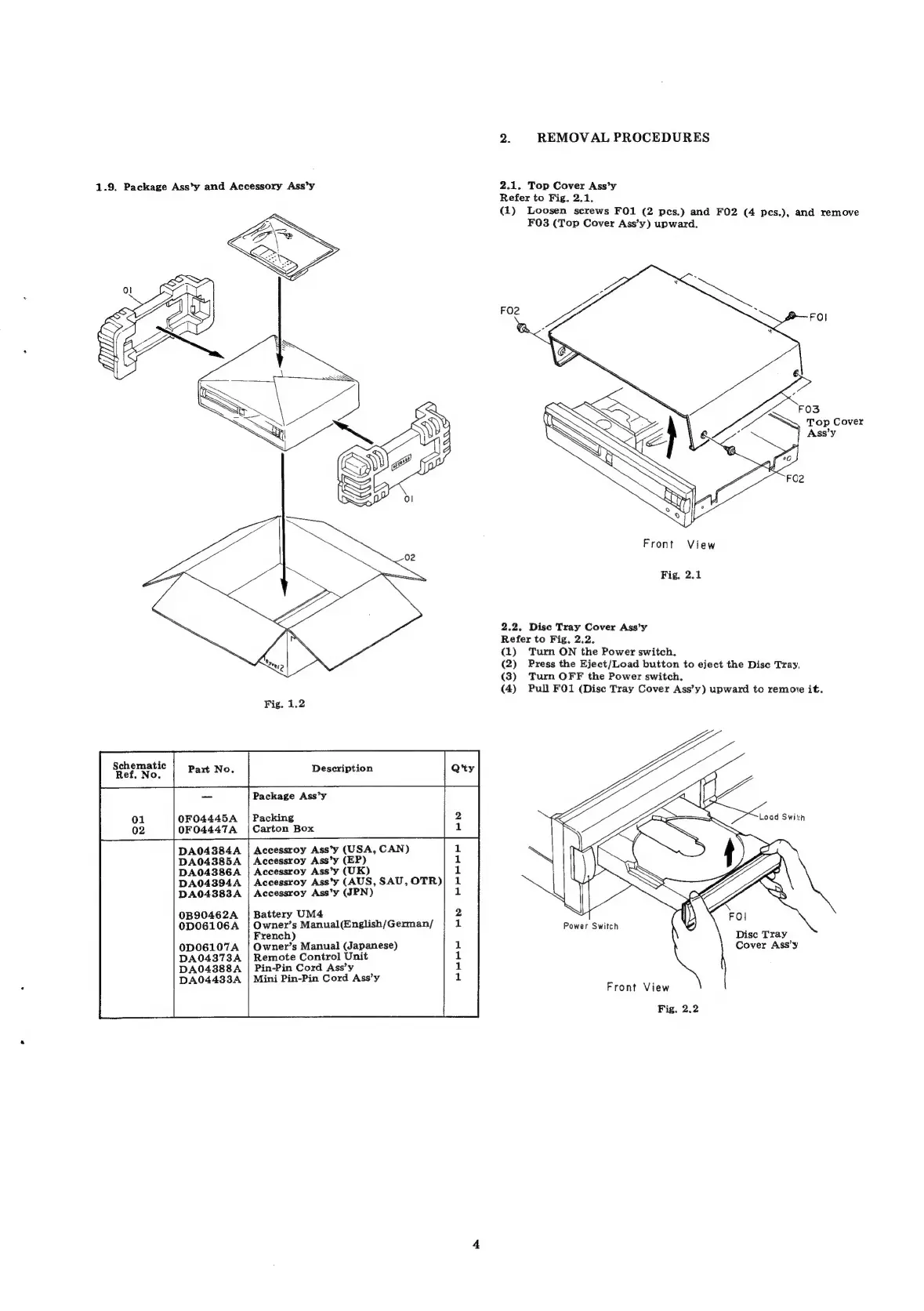

1.9. Package Ass*y and Accessory Ass’y
Schematic
Ref. No.
Description
OF04445A
OF 04447A
Package Ass’y
Packing
Carton Box
DA04384A
DA04385A
DA04386A
DA04394A
DA04383A
0B90462A
0D06106A
ODOG6107A
DA04373A
DA04388A
DA04433A
Accessroy Ass’y (USA, CAN)
Accessroy Ass’y (EP)
Accessroy Ass’y (UK)
Accessroy Ass’y (AUS, SAU, OTR)
Accessroy Ass’y (JPN)
Battery UM4
Owner’s Manual(English/German/
French)
Owner’s Manual (Japanese)
Remote Control Unit
Pin-Pin Cord Ass’y
Mini Pin-Pin Cord Ass’y
BREE PN Bee ee] Ei
2. REMOVAL PROCEDURES
2.1. Top Cover Ass’y
Refer to Fig. 2.1.
(1) Loosen screws FO1 (2 pes.) and FO2 (4 pes.), and remove
FO3 (Top Cover Ass’y) upward.
FO2
FOI
FO3
SS Top Cover
1 Ass’y
Front View
Fig, 2.1
2.2, Dise Tray Cover Ass'y
Refer to Fig. 2.2.
(1) Turn ON the Power switch,
(2) Press the Eject/Load button to eject the Dise Tray,
(3) Turn OFF the Power switch,
(4) Pull FO1 (Disc Tray Cover Ass’y) upward to remote it.
Power Switch
Disc Tray
Cover Ass’y
Front View
Fig. 2.2
