4. INSTALLATION
Remove from the cash box the four joint plates, 24off M10x30 hex head
bolts, 24off M10 flat washers and 24off M10 spring washers.
4-1 Connecting the Seat Assemblies to the Cabinet
1. Place the cabinet in the installation position.
2. Connect the connectors from the cabinet to the connectors in the seat
assemblies.
3. Fix the seat assemblies to the cabinet using the joint plates, M10 hex
head
bolts, flat washers and spring washers taking care not to trap any wires
between the seat assemblies and cabinet.
4-2 Adjusting the Level Adjusters
Adjust the level adjusters of the cabinet and seat assemblies (four each for
the cabinet and each seat assembly) with a wrench (24mm) so that the
castors are raised from the floor by about 5mm. Ensure the machine is
level and stable then back up the lock nut to lock the adjuster.
5. ADJUSTMENTS
5-1 Turning on the Power
After installing the product, turn on the power. The power switch is located
above the
mains inlet on the rear of the cabinet.

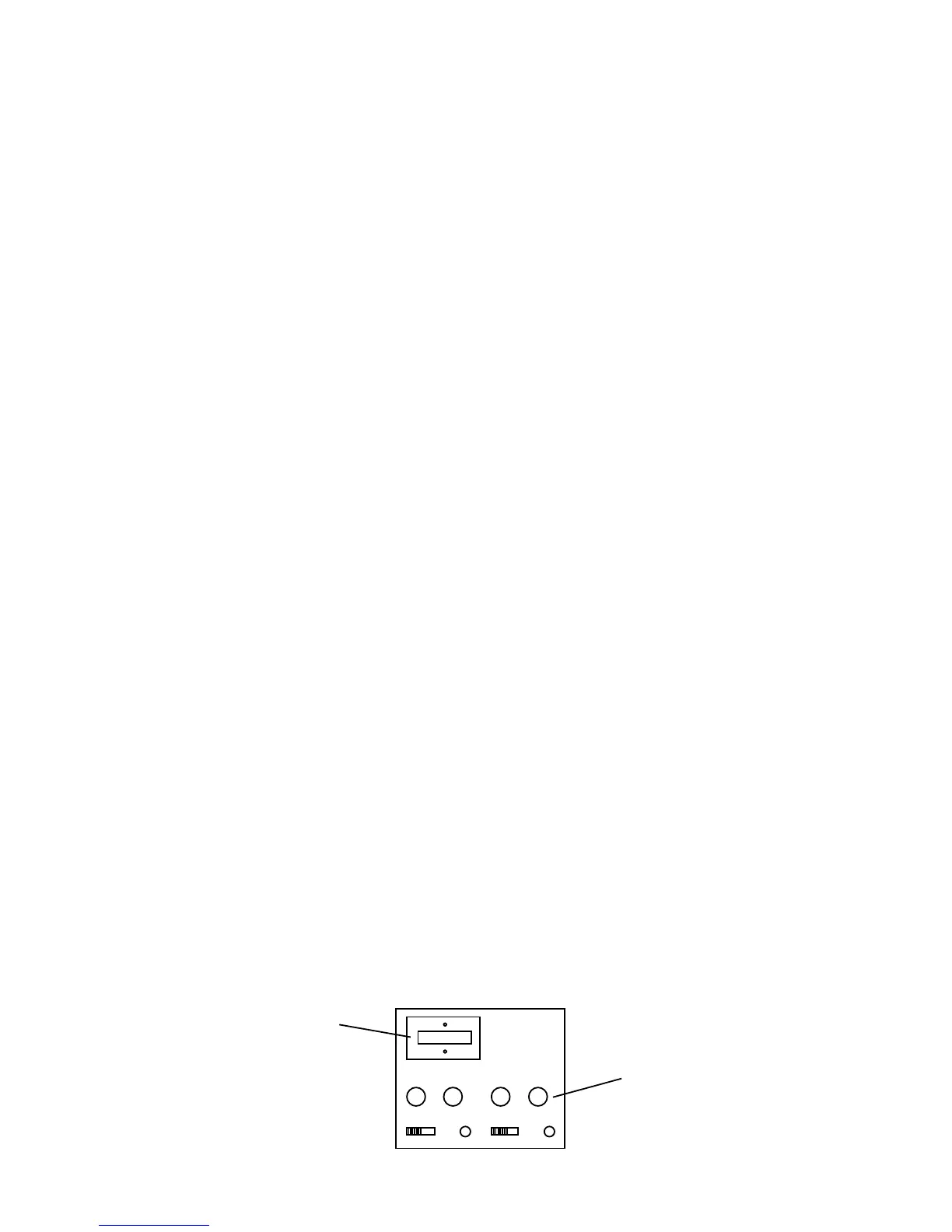

5-2 Switches for Adjustments
Open the coin door for access to the switches for adjustments.
1. Service Switch
Press this switch to establish credits without incrementing the coin counter.
2. Test Switch
Set this switch to "ON" to enter test mode. You can change the price of
play and perform various tests in Test Mode. (See "5-3 Test Mode" on
page 5)
LEFT RIGHT LEFT RIGHT
RIGHT PLAYER
LEFT
PLAYER
TEST SERVICE TEST SERVICE
COIN COUNTER
SEAT VOLUME
4
