6
Note:
①When connecting the power supply, please make sure the power, voltage and frequency are consistent with the
control unit.

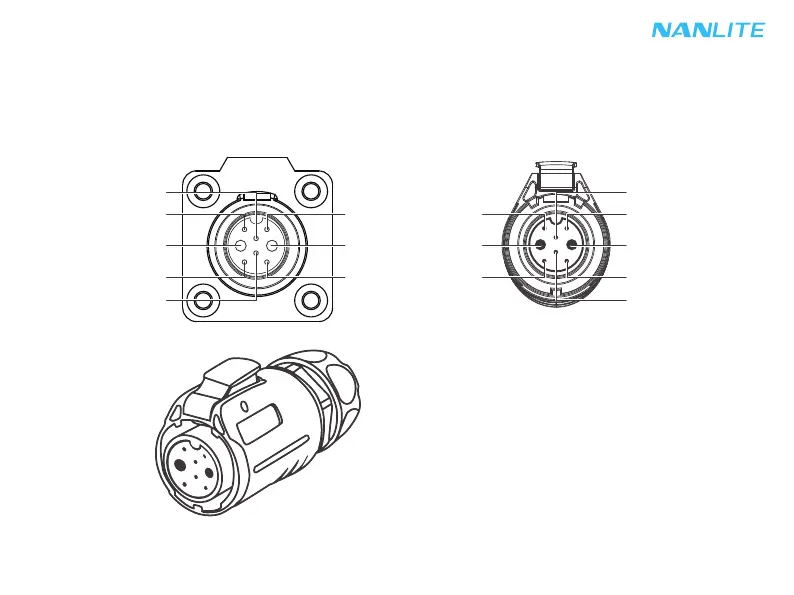

②Make sure to use the provided power cable and DC connecting cable. The connection between the DC plug and
the fixture body input socket should be connected as following.
1: Power supply + pole
2: Power supply - pole
3: D+
4: NC
5: D-
6: GND
7: NC
8: NC
5 3
6
2 1
7
4
8
3 5
8
1 2
7
4
6
5D-
NC
NC
2-
6GND
3D+
1+
NC
5D-
NC
NC
2-
6GND
3D+
1+
NC
