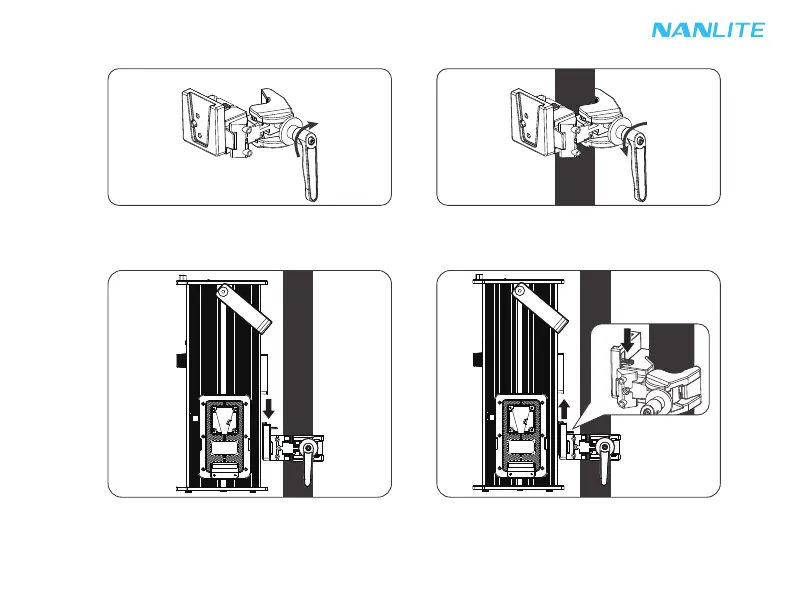

3. Quick Release Clamp Installation
1. Loosen the adjustable handle to open the clamp. 2. Mount the quick release clamp on the light
stand, then rotate the adjustable handle to
tighten the clamp.
3. Align the quick release plate on the control unit
with the quick release mount on the clamp to
mount the control unit on to the clamp.
4. When removing the control unit, press the lock
catch on the clamp and release the control unit
from the clamp.
