Instrumentation

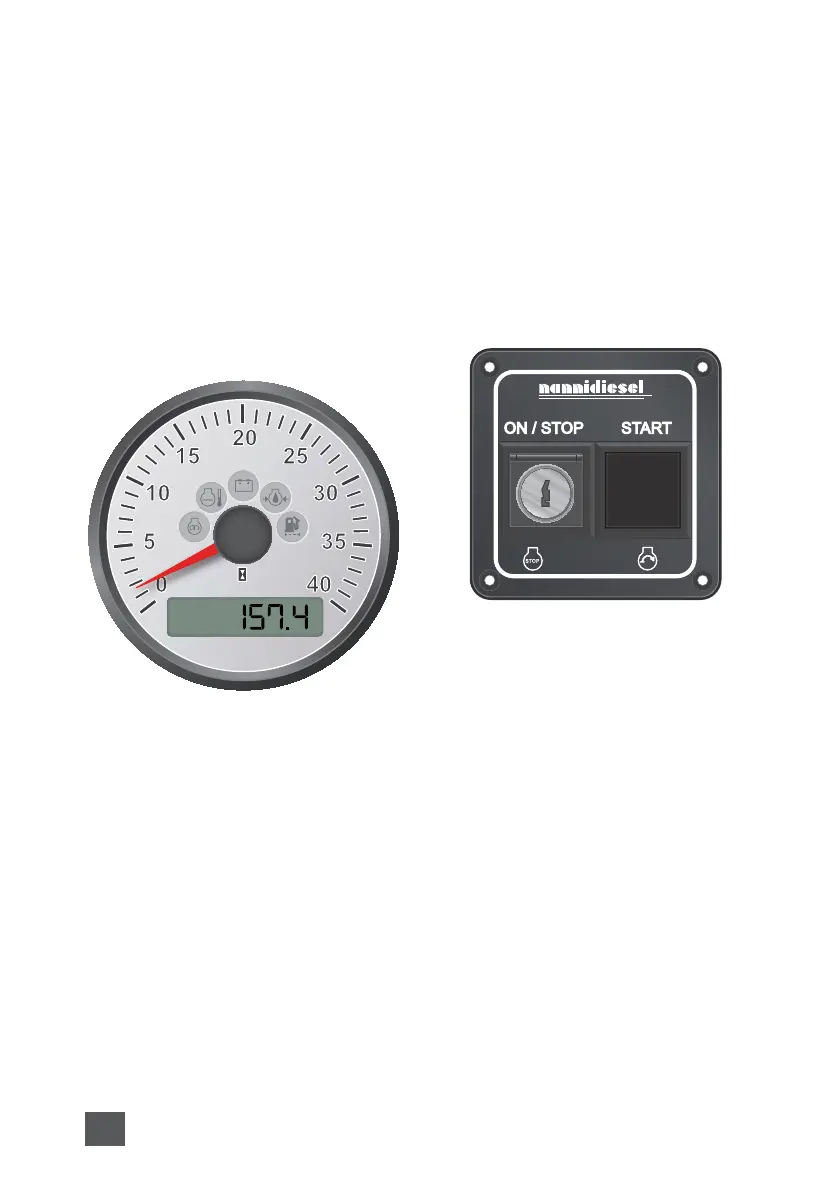

Tachometer & Warning
lamps
The analog tachometer displays the
engine speed. Multiply the indicated
value by 100 to get the revolutions
per minute of the engine.
The function of the warning lamps
is explained in the following pages.
RPM x 100
Hourmeter & Voltmeter
The display at the bottom of the
dial shows the operating time of the
engine in hours
When the system voltage is con-
nected, the display indicates the
voltage at the battery terminals.
Starter switch
The starter switch allows to start
and stop the engine.
The ON/STOP switch allows to
connect the system voltage and to
stop the engine.
The START button allows to pre-
heat the engine and engage the
starter.
