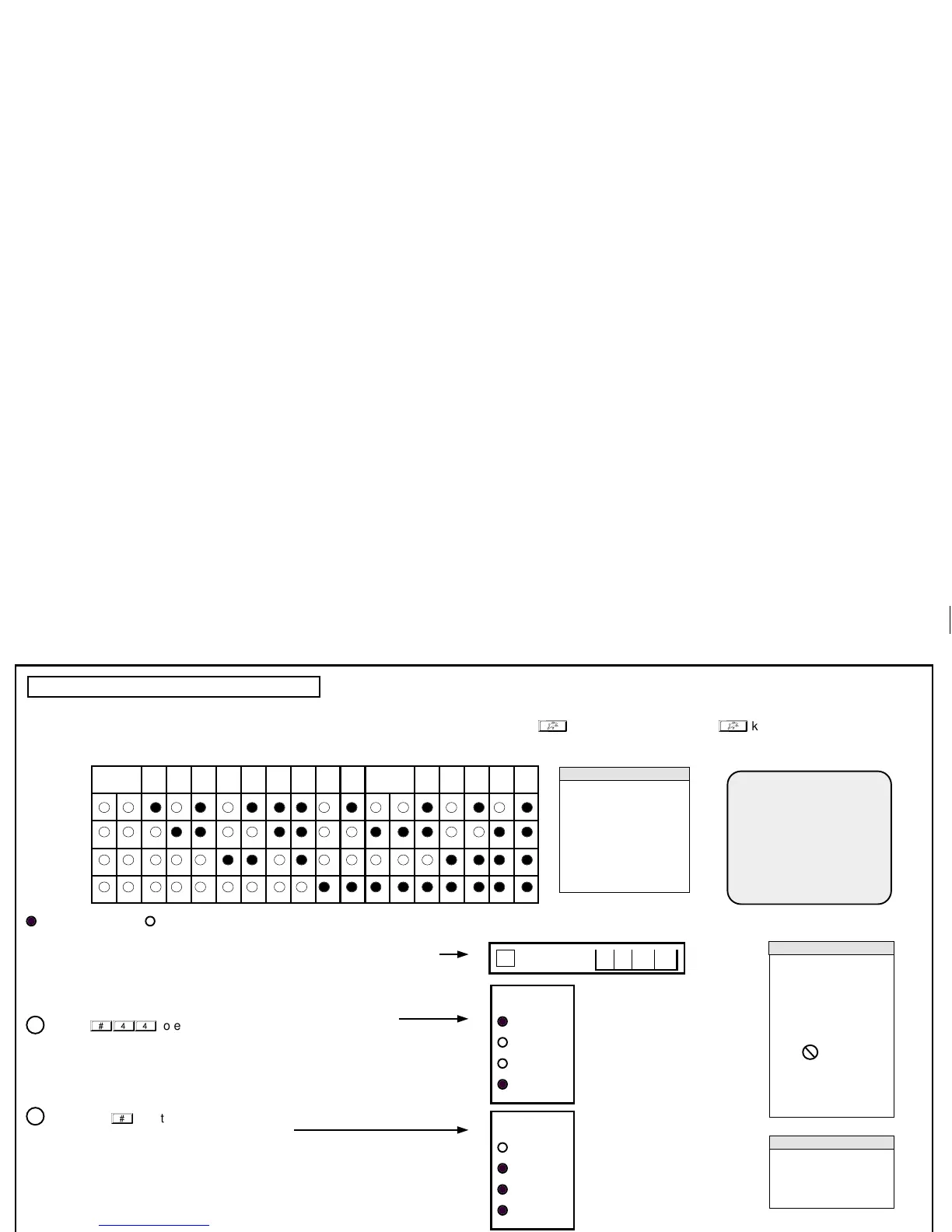

Viewing Data in Programming Blocks
To view data within a programming Block, enter the Program Block Number, then press the
key until all digits within
the Programming Block have been viewed. Data will be displayed in the binary format shown in the table below:
ZONE LED ON ZONE LED OFF
0/Blank123456789 *A/0 BCDEF
ZONE 1
ZONE 2
ZONE 3
ZONE 4
For Technical As-
sistance, Contact
the Napco Toll
Free Helpline
(800) 645-9440
*
In the following Program-
ming Blocks, data that has
been entered as a ‘0’ will
be displayed as an ‘A’:
Subscriber ID Numbers,
Phone Numbers, Pager
Leading and Trailing digits
and Report Codes.
N
OTE
:
Example: Viewing the Dialing Prefix
A Dialing Prefix of 9E has been programmed at Programming Block Num-
ber 44 (outside access number). Follow the steps below to view the data.:
Press
to enter Programming Block 44. The 1st
digit of Programming Block 44 is displayed.
1
Press the
key to view the 2nd digit.
2
9
E
44
Dialing Prefix
The Following Program-
ming Options are not
permitted for UL installa-
tions: [05], [06], [23-2],
[26-3] and [26-4].
The symbol by a
programming Block indi-
cates the programming
option is not permitted
for UL installations.
N
OTE
:
UL
For information about
programming blocks re-
fer to XP-600 Installation
Manual WI846C.
N
OTE
:
ZONE 3
ZONE 1
ZONE 2
ZONE 4
Data = 9
ZONE 3
ZONE 1
ZONE 2
ZONE 4
Data = E
