Napoleon BGD42 - Minimum Air Terminal Location Clearances

7
W415-0381 / H / 12.07.07

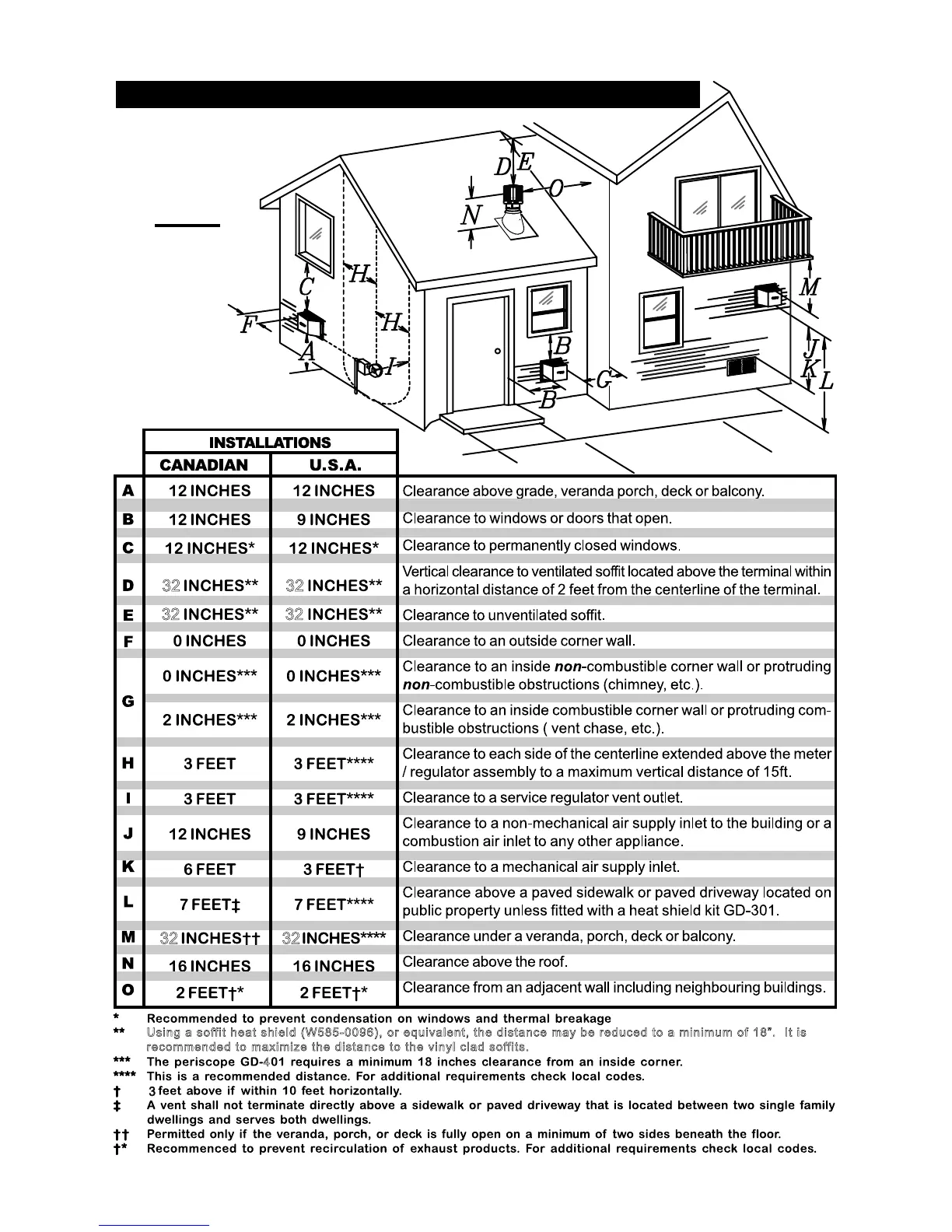

MINIMUM AIR TERMINAL LOCATION CLEARANCES
32 32
32 32
32 32
4
Using a soffit heat shield (W585-0096), or equivalent, the distance may be reduced to a minimum of 18”. It is
recommended to maximize the distance to the vinyl clad soffits.
**
FIGURE 3
