W415-1134 / 07.04.12
14
Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally
all parts can be ordered through your Authorized dealer / distributor.
FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE
REQUIRED TO HONOUR THE CLAIM.
When ordering replacement parts always give the following information:
• Model & Serial Number of appliance
• Installation date of appliance
• Part number
• Description of part
• Finish
* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR
FURTHER INFORMATION, CONTACT YOUR AUTHORIZED DEALER.
41.1
FAILURE TO POSITION THE PARTS
IN ACCORDANCE WITH THIS
MANUAL OR FAILURE TO USE ONLY
PARTS SPECIFICALLY APPROVED
WITH THIS APPLIANCE MAY
RESULT IN PROPERTY DAMAGE OR
PERSONAL INJURY.
!
WARNING
For aftermarket sales and service please call 1-866-539-2039
NOTE: Care must be taken when removing and disposing of any broken glass or damaged
components. Be sure to vacuum up any broken glass from inside the appliance before operation.

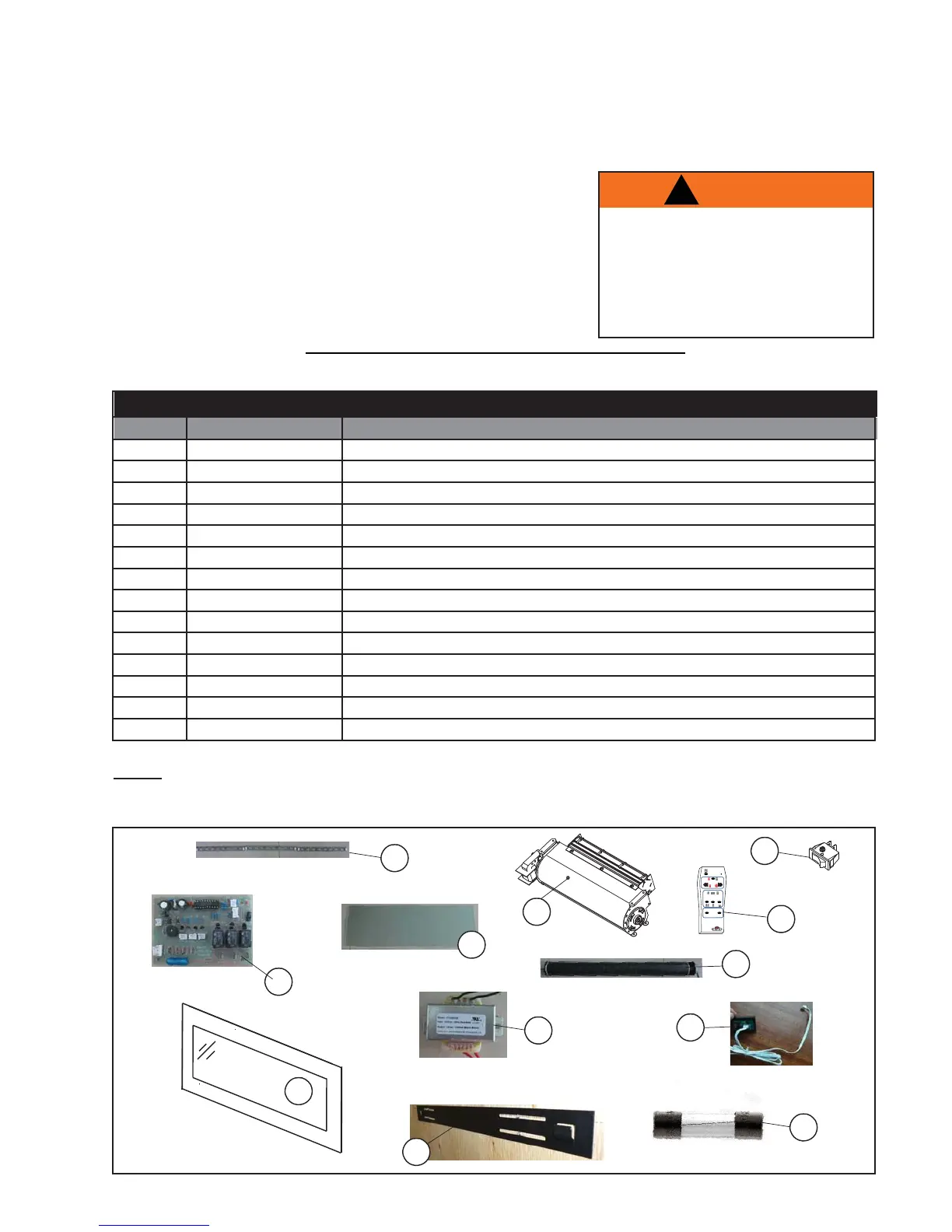

8.0 REPLACEMENT PARTS
8
5
BLUE LIGHT
+5 MAX-5 OFF
TEMPLOWHIGH
FLAME
+5 MAX-5 OFF
HEAT
1
6
2
3
4
9
13
10
7
14
COMPONENTS
REF NO. PART NO. DESCRIPTION
1 W405-0008 LED CIRCUIT BOARD FOR EMBER BED
2 W190-0050 CIRCUIT BOARD
3 W062-0047 BLOWER AND HEATER ASSEMBLY
4 W660-0128 SWITCH (RK1-11)
5 W190-0051 REMOTE CONTROL
6 W300-0155 FRONT GLASS
7 W300-0156 MIRROR GLASS
8 W707-0016 TRANSFORMER
9 W010-2918 DRUM ASSEMBLY
10 W660-0129 REMOTE RECEIVER
11* W300-0157 GLASS CHIP
12* W435-0055 120V 30/36RPM
13 W080-1282 BRACKET
14 W285-0006 FUSE
