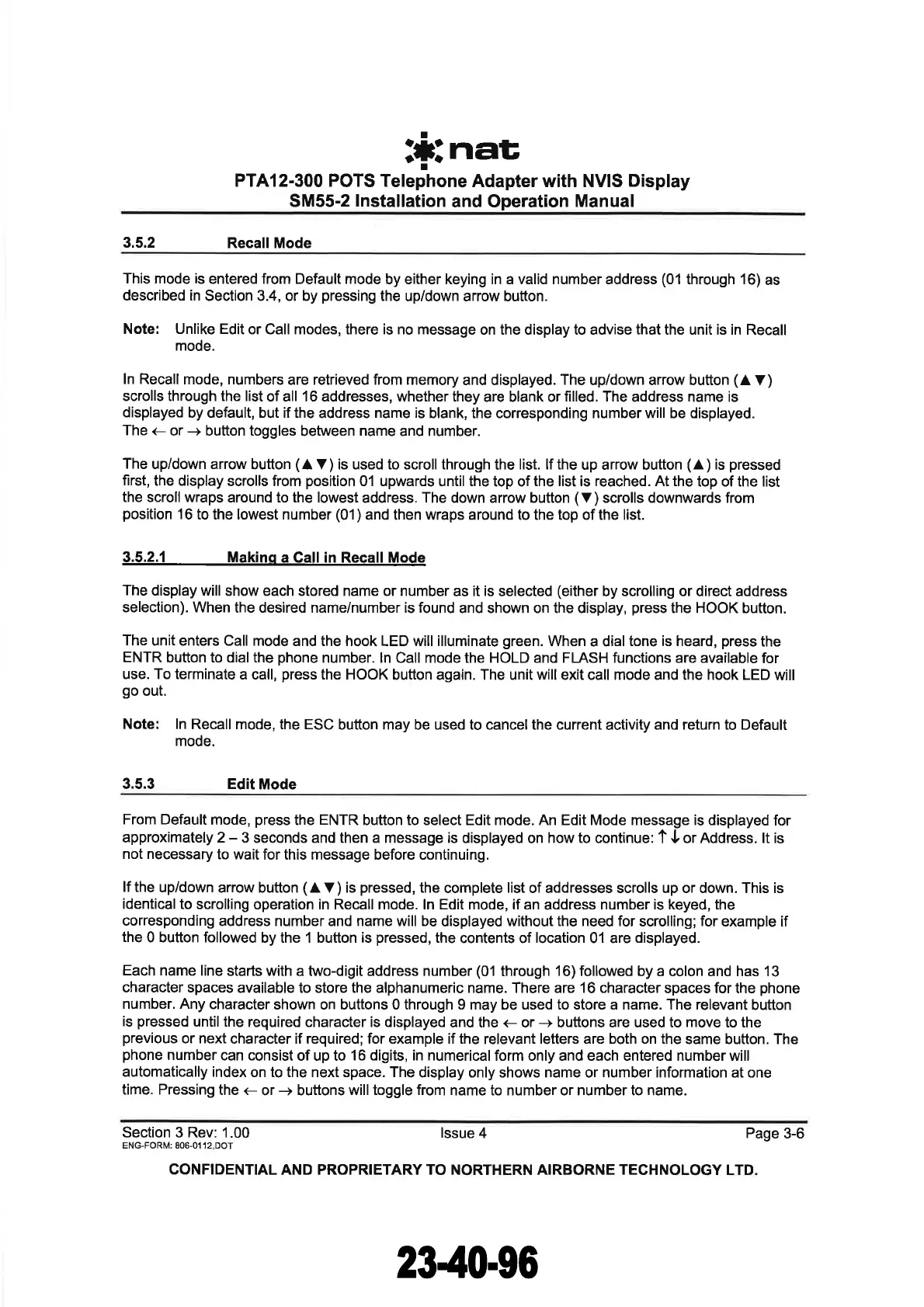

l*lnat
PTAI2-300 POTS Telephone
Adapter with NVIS
Display
SM55-2
lnstallation
and Operation
Manual
3.5.2
RecallMode
This mode is
entered from Default mode
by either keying in a valid number address
(01
through 16)
as
described in
Section 3.4, or by
pressing
the
up/down arrow button.
Note: Unlike Edit
or Call modes, there is no message
on the display to advise
that
the unit is in Recall
mode.
ln Recall
mode, numbers
are retrieved from memory
and displayed.
The
up/down arrow button
(A
V)
scrolls through the list
of all 16 addresses, whether they
are blank or
filled. The
address name is
displayed
by default, but if the
address
name is
blank, the corresponding number will be displayed.
The <-
or
-+
button toggles
between
name
and number.
The
up/down arrow
button
(A
V)is used to scrollthrough
the
list. lf the
up arrow button
(A)is pressed
fìrst,
the display
scrolls from
position
01 upwards until the
top of
the list is reached. At the
top of the list
the scroll wraps
around to the lowest
address.
The
down arrow button
(V)
scrolls downwards from
position
16
to the lowest number
(01)
and then wraps around to the top of the list.
3.5.2.1 Makinq
a Call in Recall Mode
The
display will
show each stored name or number
as it
is
selected
(either
by scrolling or direct address
selection). When
the desired name/number is found
and shown on the display,
press
the HOOK button.
The
unit enters Call mode
and the hook LED will illuminate
green.
When
a dial
tone is heard,
press
the
ENTR
button to dial the
phone
number. ln Call mode the HOLD and FLASH functions are available
for
use. To terminate
a call,
press
the HOOK
bufton again. The unit will exit call mode and the hook LED
will
go
out.
Note: ln
Recall mode, the ESC
button may be used to cancel the current
activity
and return to Default
mode.
3.5.3 Edit
Mode
From Default
mode,
press
the
ENTR
button to select Edit mode. An Edit Mode message is displayed
for
approximately 2
-
3 seconds and then a message is
displayed on
how to
continue: I ü or Address. lt is
not necessary
to wait
for this message before continuing.
lf the
up/down
arrow button
(
A V
)
is
pressed,
the
complete
list
of addresses scrolls up or down. This is
identical
to scrolling
operation in Recall mode. ln Edit mode, if an
address
number is keyed, the
corresponding
address number and name will be
displayed
without the need for
scrolling;
for
example if
the
0 button followed
by the I bufton is
pressed,
the
contents of
location
01 are
displayed.
Each
name line
starts with a two-digit address number
(01
through
16) followed
by a colon and has 13
character spaces
available to store the alphanumeric name. There are 16 character
spaces for the
phone
number. Any
character
shown on buttons 0 through 9 may be used to store a name. The relevant
button
is
pressed
until the
required character is displayed
and the <- or
-+
buttons are used to
move
to the
previous
or next
character if required; for example if the
relevant
letters are both on the
same button. The
phone
number
can consist
of up to
16 digits, in numerical
form only and each entered number will
automatically index
on to the next space. The
display only shows name or number information at one
time. Pressing
the <-
or
-+
buttons
will toggle from
name to number or number to name.
Section 3 Rev: 1.00
lssue
4 Page
3-6
ENG-FOR¡il: 806-01 l2 DOT
CONFIDENTIAL
AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.
