i*lnat
PTAI2-300 POTS Telephone
Adapter with NVIS Display
SM55-2 lnstallation
and Operation Manual
Button
Call Mode Function
Edit Mode Function
1 DTMF tone
1 transmitted and digit I
displayed 1
,
-,
.,
or / displayed
2 DTMF
tone 2 transmitted
and digit 2 displayed 2, A, B
or C displayed
3 DTMF tone
3
transmitted
and digit 3 displayed
3,
D, E
or
F displayed
4 DTMF
tone 4 transmitted and
digit
4
displayed 4, G, H or I displayed
5 DTMF tone
5
transmitted
and digit
5 displayed 5, J,
K
or
L
displayed
6 DTMF tone
6
transmitted
and digit
6 displayed 6, M, N or O displayed
7 DTMF
tone 7 transmitted
and digit 7 displayed 7, P,
Q,
R or S displayed
I DTMF tone
8
transmitted
and digit
8
displayed
8,
T,
U or
V
displayed
I
DTMF
tone 9 transmitted
and digit 9 displayed 9, W, X, Y or Z displayed
0 DTMF
tone 0 transmitted
and digit 0 displayed 0 or character space displayed
DTMF tone
>F
transmitted and
char
*
displayed
Only <- available
(moves
cursor
I
position
to left or
selects
delete data
of a selected
address)
#
DTMF tone
# transmitted and
char # displayed
Only
-+
available
(moves
cursor I
position
to right
or selects edit data of a selected
address)
ESC
No function
Cancels current activity
during store and
returns to Default mode
HOOK
Toggles
the hook switch to inactive,
and enters
Default mode
Activates the hook switch and enters
Call
mode
HOLD
Mutes mic
and
phones
No function
REDIAL
Retrieves
the
last
number dialed, displays it,
and
calls the number
No function
FLASH Takes hook
switch inactive for selected flash
pulse
duration
No function
UP lncreases
the
phones
volume
Scrolls up through the list of stored
numbers
DOWN
Decreases
the
phones
volume
Scrolls
down through the list
of stored
numbers
BRT
lncreases
display brightness and wraps around
from max
to min brightness
lncreases display
brightness and wraps
around
from max
to min brightness
ENTR
Sends
a number dialed from Default
or Recall
mode
Accepts a data
item
or completes
a
sequence.

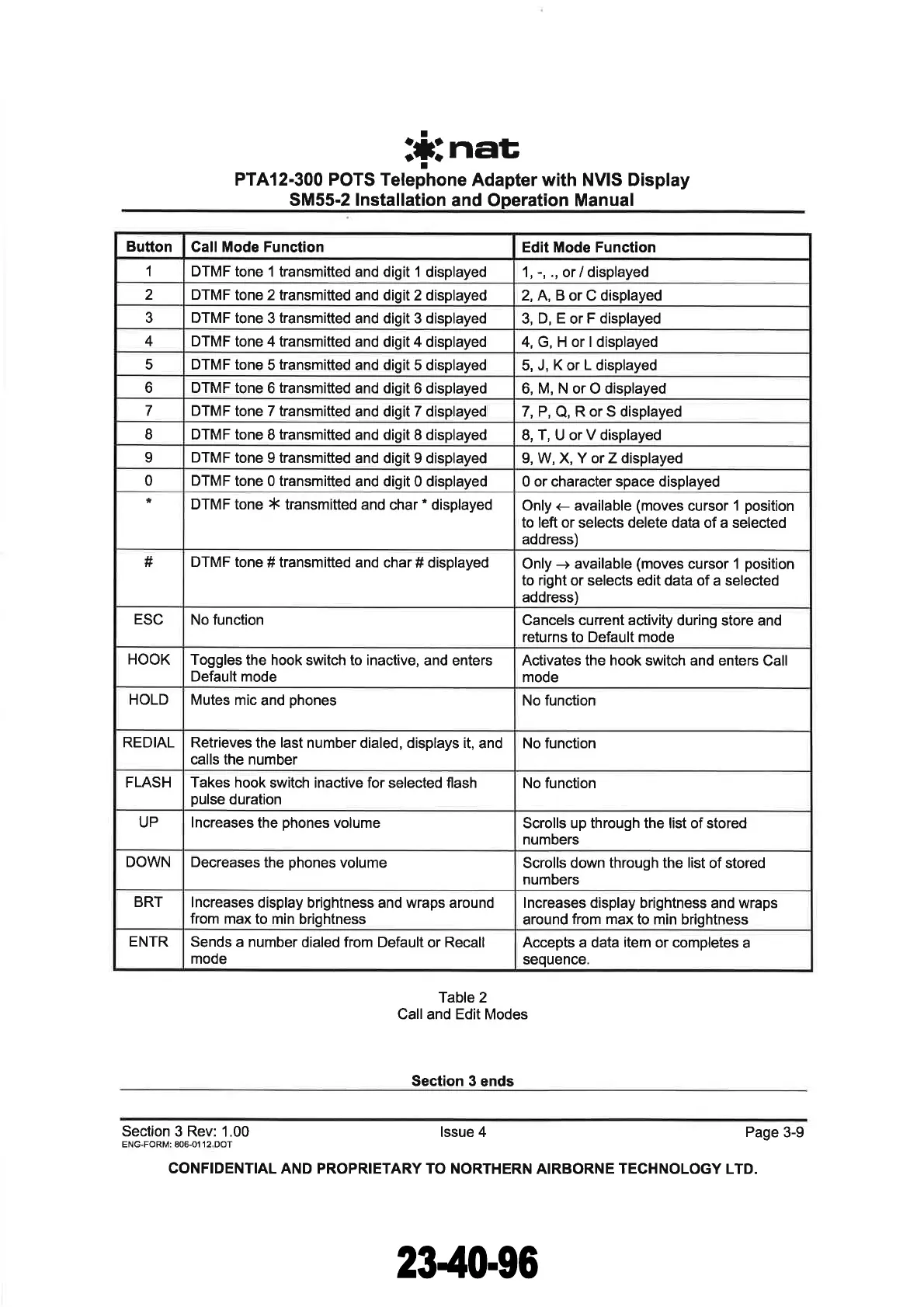

Table 2
Calland Edit Modes
Section 3 ends
Section
3
Rev:
1.00
lssue 4 Page
3-9
ENG-FORM: 806-01 12 DOT
CONFIDENTIAL
AND PROPRIETARY TO NORTHERN
AIRBORNE
TECHNOLOGY
LTD.
