1-8 | ni.com
Chapter 1 Getting Started
USB Device Panel/Wall Mounting
(USB-622x/625x/628x Devices) The Externally Powered USB M Series Panel Mounting Kit
(part number 780214-01, not included in your USB-62xx kit) is an accessory you can use to
mount the USB-62xx family of products to a panel or wall.
USB Device LEDs
(USB-622x/625x/628x Devices) Refer to the LED Patterns section of Chapter 3, Connector
and LED Information, for information about the M Series USB device LEDs.
USB Cable Strain Relief
(USB-622x/625x/628x Screw Terminal and USB-622x/625x/628x Mass Termination
Devices)
Use the supplied strain relief hardware to provide strain relief for your USB cable.
Adhere the cable tie mount to the rear panel of the USB-62xx Screw Terminal or USB-62xx Mass
Termination device, as shown in Figure 1-6. Thread a zip tie through the cable tie mount and
tighten around the USB cable.

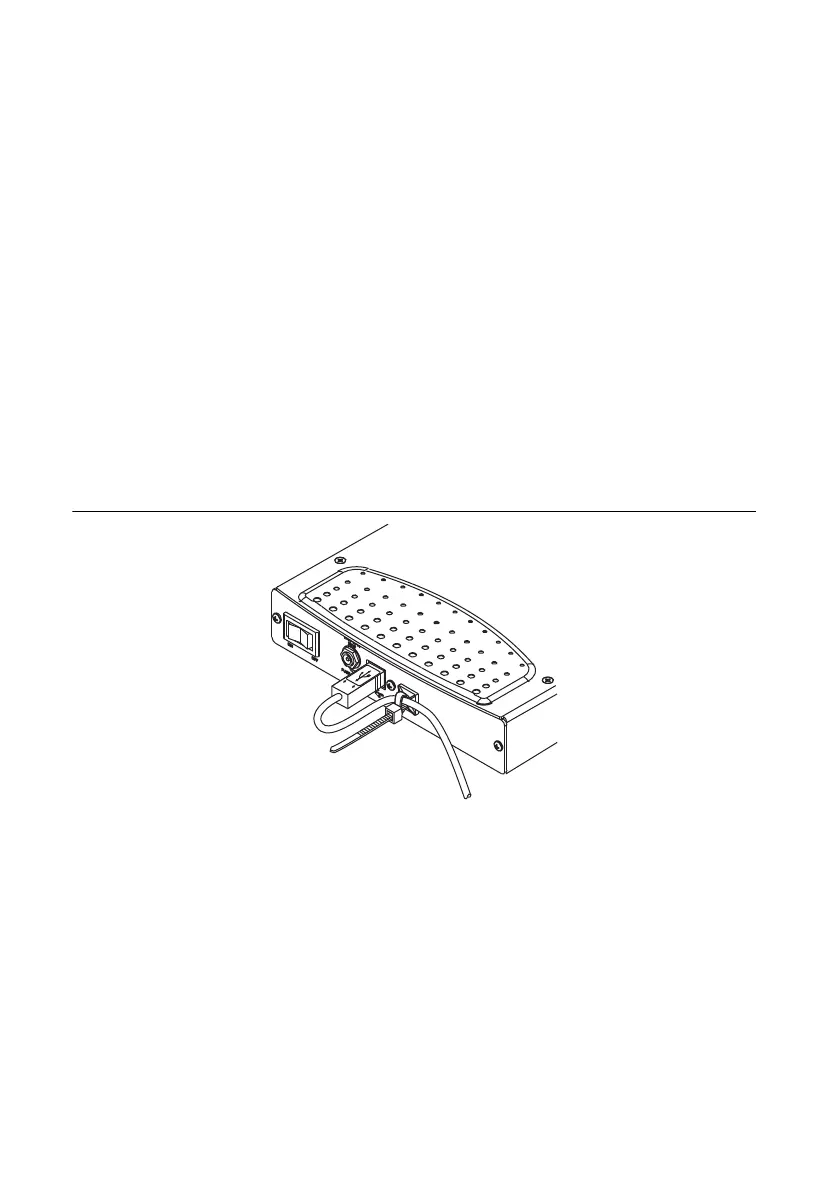

Figure 1-6. USB Cable Strain Relief on USB-62xx Screw Terminal and
USB-62xx Mass Termination Devices
(USB-622x/625x BNC Devices) Thread a zip tie through two of the strain relief holes on the
end cap to provide strain relief for your USB cable as shown in Figure 1-7. The strain relief holes
can also be used as cable management for signal wires to/from the screw terminals and BNC
connectors.
