Chapter 1 GPIB Hardware
GPIB Hardware Guide 1-10 ni.com

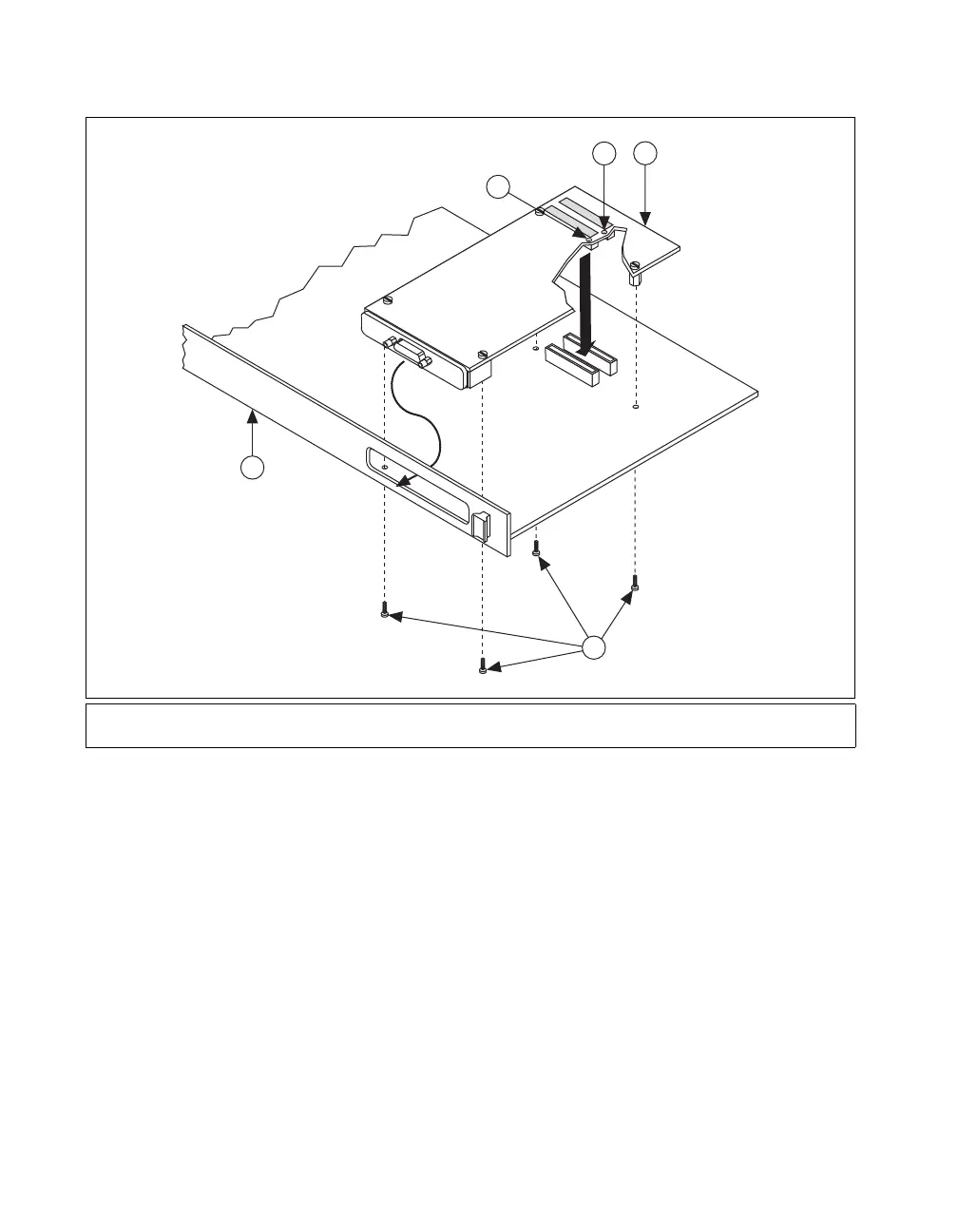

Figure 1-6. Installing the PMC-GPIB
5. Use the mounting hardware provided to fasten the PMC-GPIB to the
host.
6. Reinstall the host, if you removed it to install the PMC-GPIB.
7. Power on your system.
The PMC-GPIB hardware installation is now complete.
1 Host Face Plate
2 3.3 V Keying Hole
3 5 V Keying Hole
4 PMC-GPIB Board
5 Mounting Screws
5
1
2
3
4
