National Instruments NI 5402 User Manual

PFI 0
PFI 1
NI PXI-54X X
ACCESS ACTIVE
CLK
IN
CH 0
DIGITAL DATA & CON TROL
CH
0
PFl
0
DIGITAL DATA & CON TROL
NI PCI-54XX
CLK
IN
PFl
1

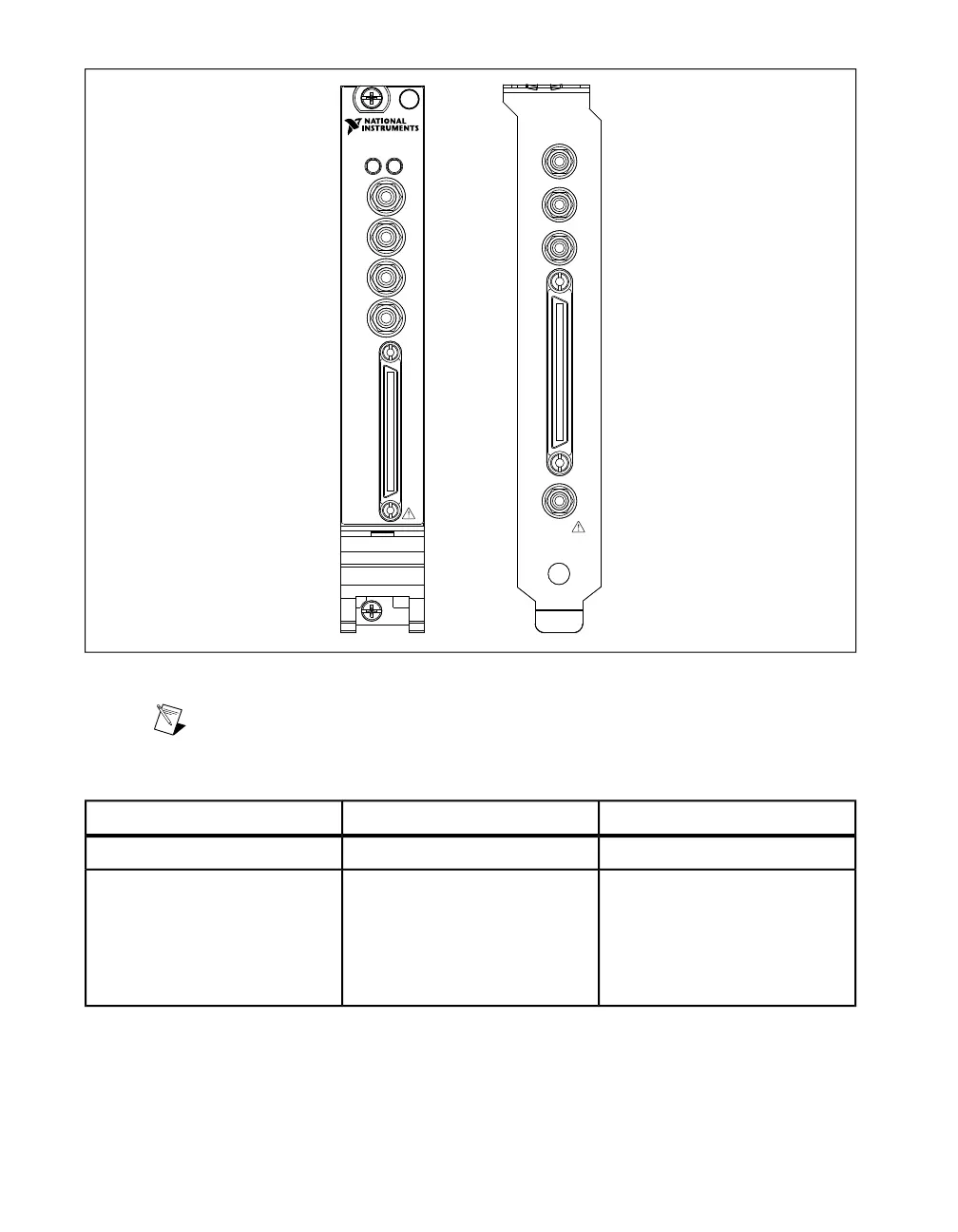

Figure 8. NI PXI/PCI-5421 Front Panel (NI PXI/PCI-5412/5422/5441 devices are similar)
Note The DIGITAL DATA & CONTROL (DDC) connector is not available on the NI 5412
or the NI 5421/5422 with the 8 MB memory option.
Table 5. NI PXI/PCI-5412/5421/5422/5441 Front Panel Connectors
FunctionAccessConnector
Provides the waveform output.OutputCH 0
Accepts a PLL Reference clock from
an external source and can frequency
lock the Sample clock timebase to
the external Reference clock. The
signal on this connector can also be
used as a Sample clock source.
InputCLK IN
NI Signal Generators Getting Started Guide 18 ni.com
