Appendix A Device-Specific Information
M Series User Manual A-12 ni.com
PCI-6221 (37-Pin)
PCI-6221 (37-Pin) Pinout
Figure A-3 shows the pinout of the PCI-6221 (37-pin) device.
For a detailed description of each signal, refer to the I/O Connector Signal
Descriptions section of Chapter 3, Connector and LED Information.

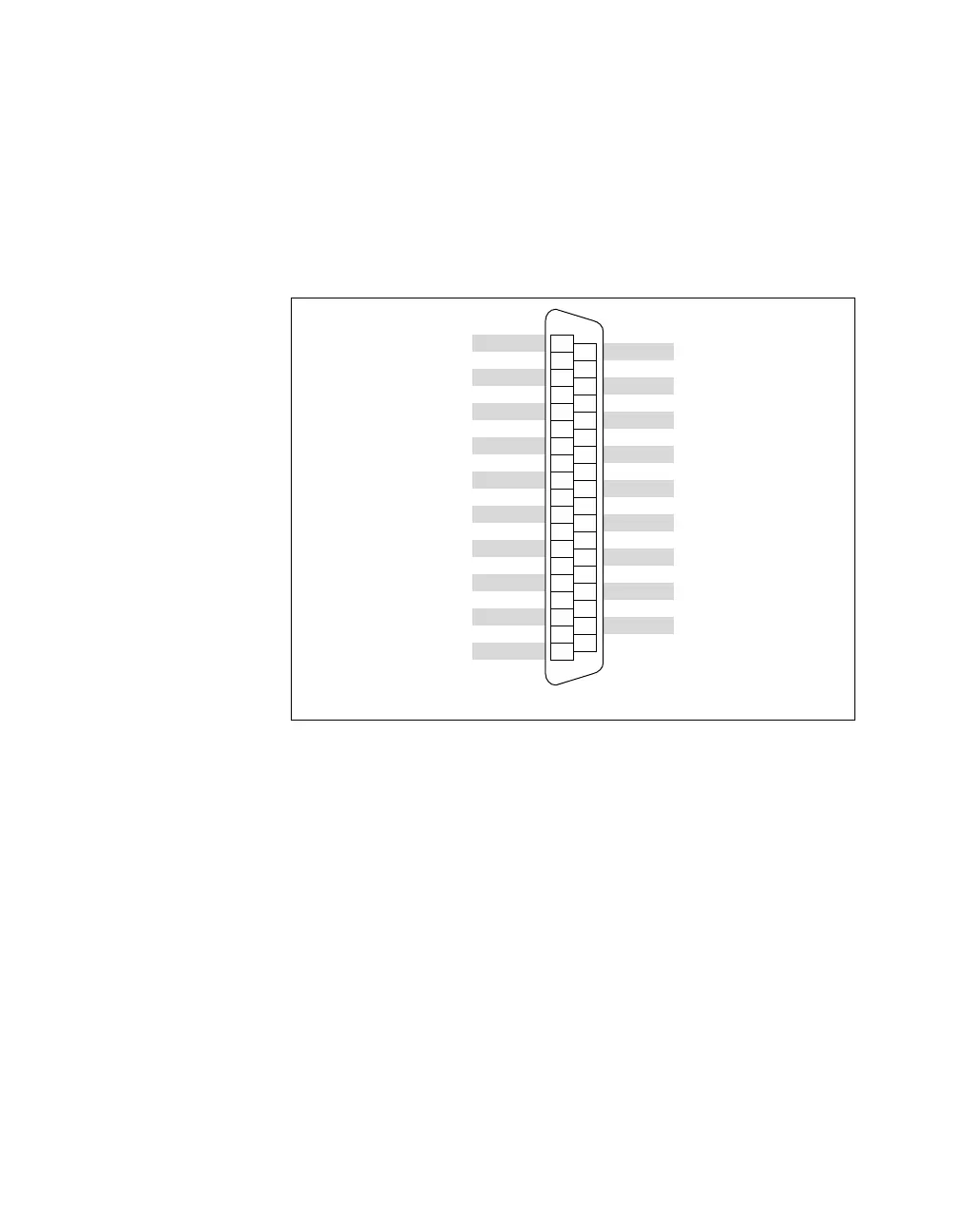

Figure A-3. PCI-6221 (37-Pin) Pinout
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
AI 0
AI 9
AI GND
AI 10
AI 3
AI 4
AI 13
AI SENSE
AI 14
AI 15
AO GND
AO 0
PFI 0/P1.0
D GND
PFI 3/P1.3
D GND
PFI 6/P1.6
D GND
P0.1
AI 8
AI 1
AI 2
AI 11
AI GND
AI 12
AI 5
AI 6
AI 7
NC
AO 1
AO GND
PFI 1/P1.1
PFI 2/P1.2
PFI 4/P1.4
PFI 5/P1.5
PFI 7/P1.7
P0.0
NC = No Connect
