Wiring for High-Vibration Applications
If an application is subject to high vibration, National Instruments
recommends that you either use ferrules to terminate wires to the
detachable screw-terminal connector or use the NI 9939 backshell
kit to protect the connections. Refer to Figure 5 for an illustration
of using ferrules. Refer to Figure 1 for an illustration of the
NI 9939 connector backshell.

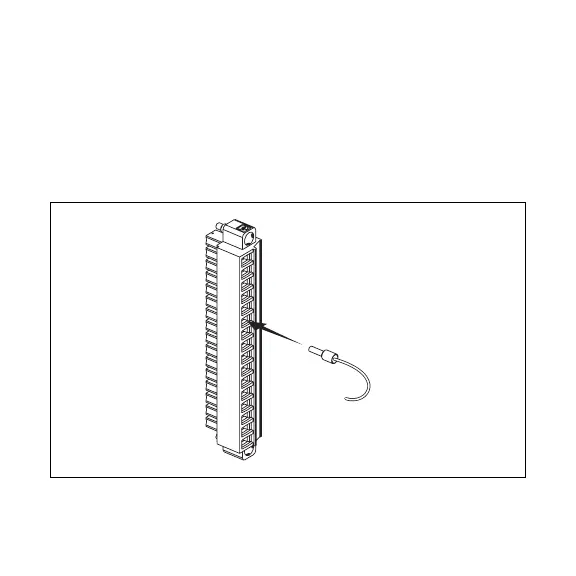

Figure 5. 16-Terminal Detachable Screw-Terminal Connector with Ferrule
